hp rating: 925 HP

NEXT GEN PT6266

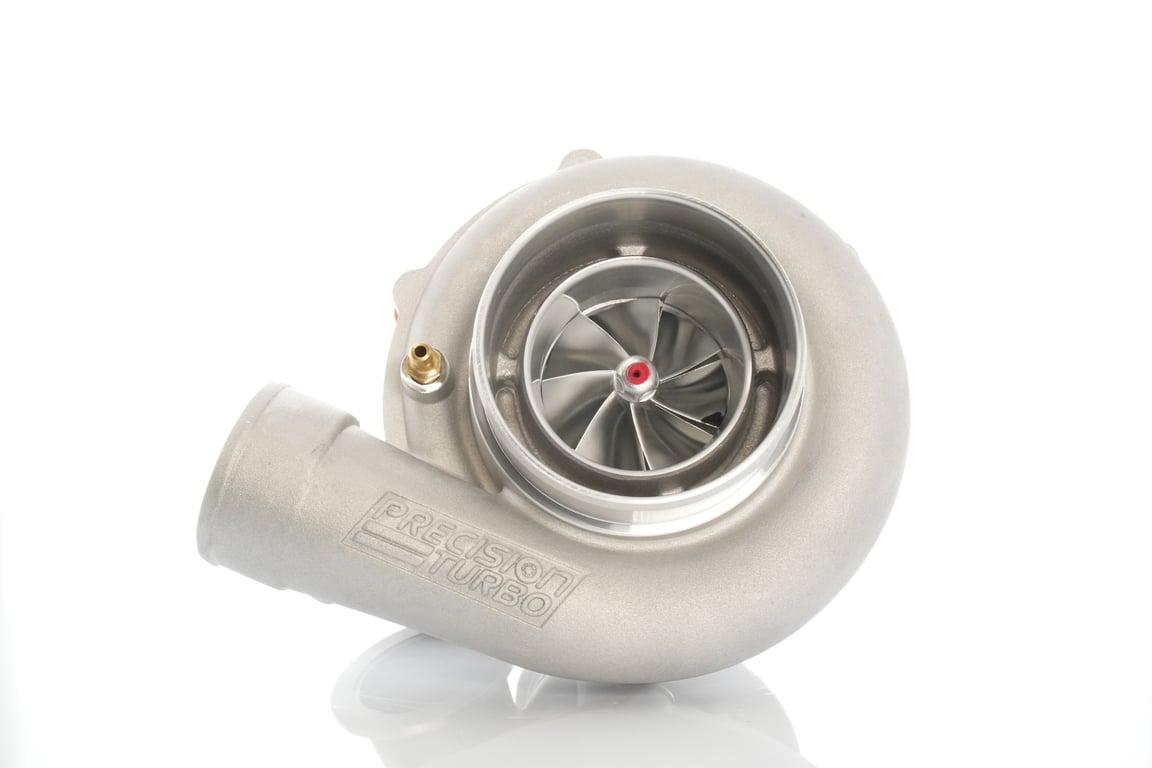

Introducing the all-new Precision Turbo Next Gen 6266 turbocharger. The Next Gen 6266 is now rated at 925HP and will be available in the all-new SCP (S Cast Ported) compressor cover, offering a 4” inlet and 2.5” outlet. This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All of these improvements result in a 10% increase in flow compared to Gen 2 technology.

Part number — 27404210568
in stock

A r

0.63 A/R
  • 0.63 A/R

Actuator description

Heavy Duty
  • Heavy Duty

MSRP

$2,338.12

QTY

  • Specs
  • Details
  • Downloads

Specs

hp rating: 925 HP
generation: BUICK STYLE 3-BOLT
cover style: SCP-COVER
compressor inducer: 62.0 MM

Details

Key Features: NEXT GENERATION RACE TECHNOLOGY • HP Rating: 925 HP • Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. • CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. • Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. • Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet for maximum air flow. • High flow / highly efficient 66mm turbine wheel Specifications: Compressor Wheel Inducer: 62mm Compressor Wheel Exducer: 86mm/ 88.1mm ET Turbine Wheel Inducer: 74mm Turbine Wheel Exducer: 66mm

Downloads

×
