Specs
hp rating: 935 HP
generation: BUICK STYLE 3-BOLT
cover style: S-COVER
compressor inducer: 67.0 MM
Details

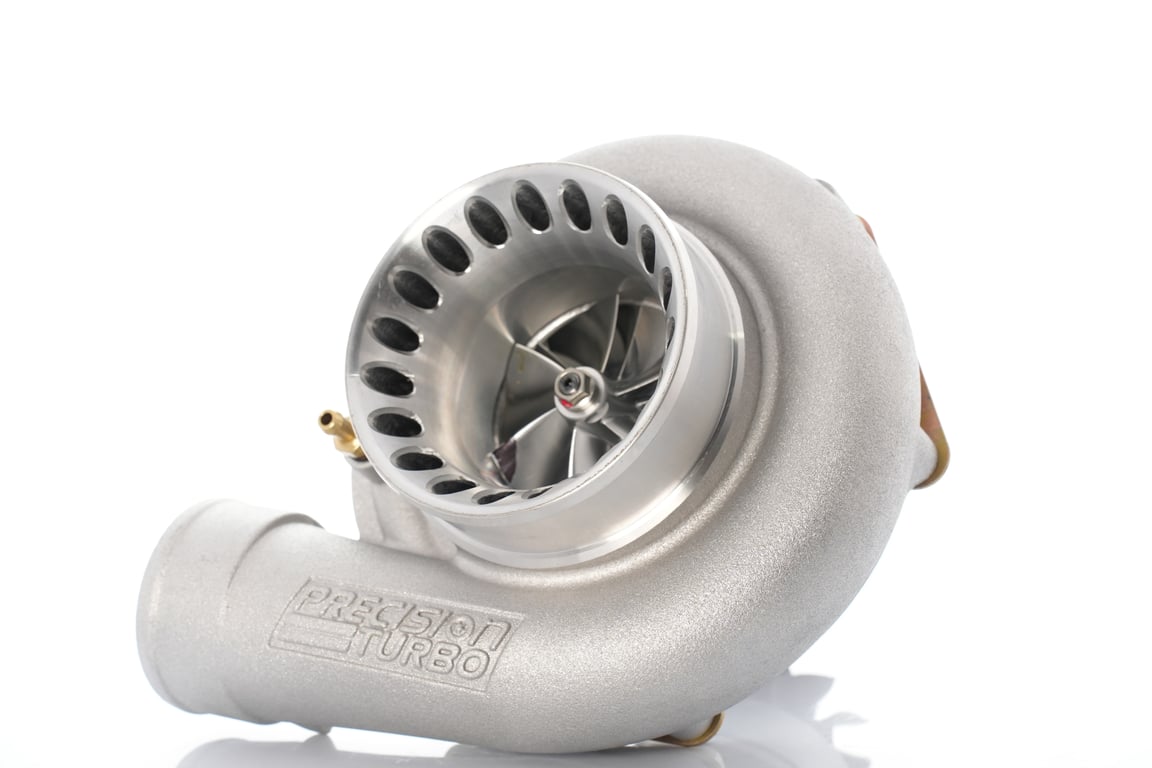

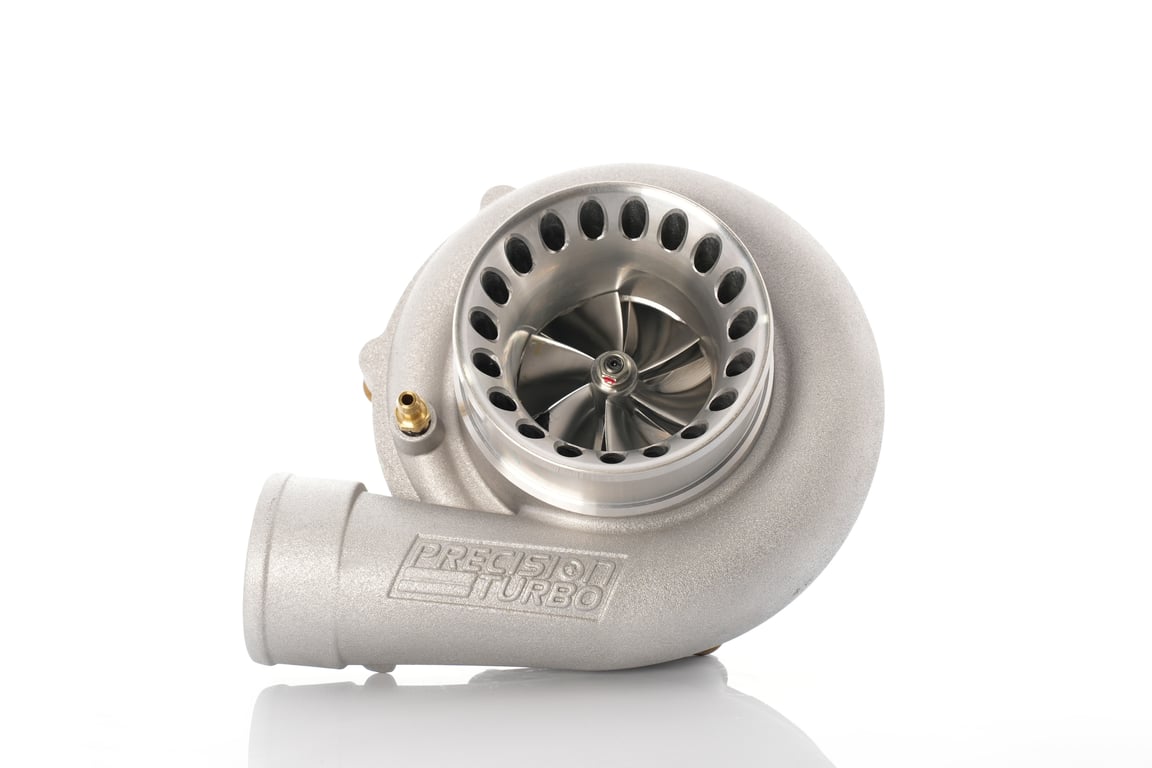

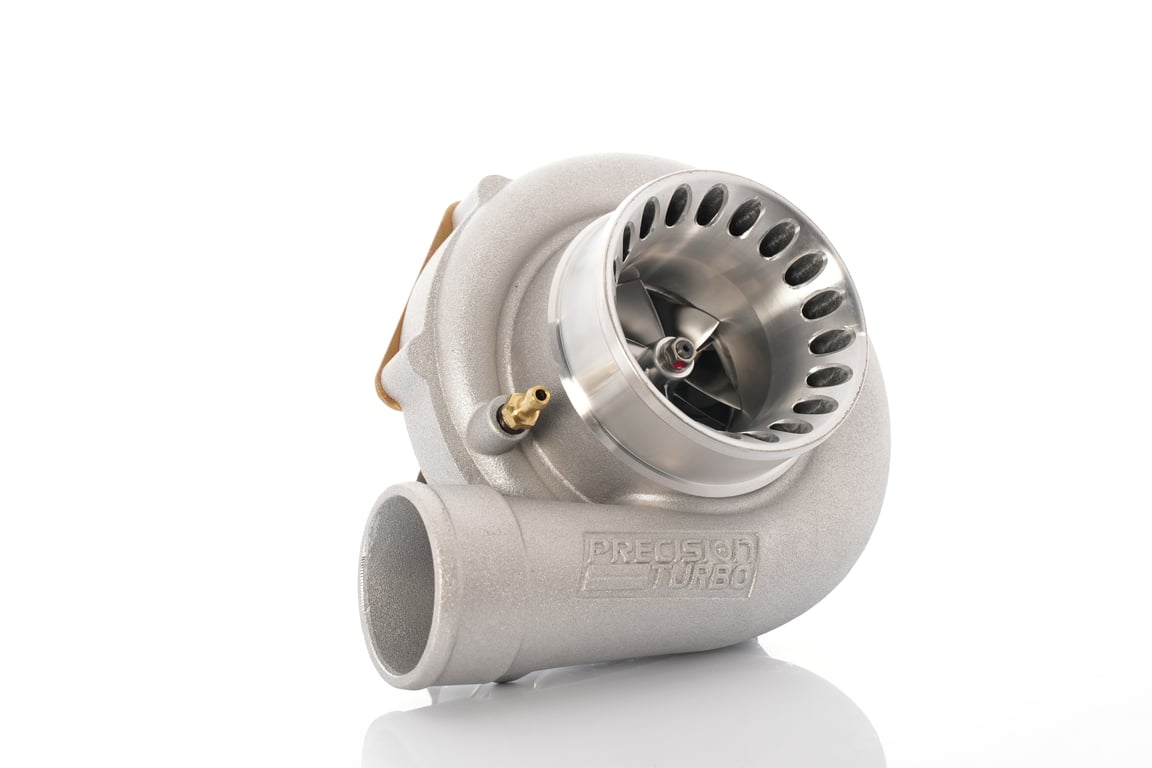

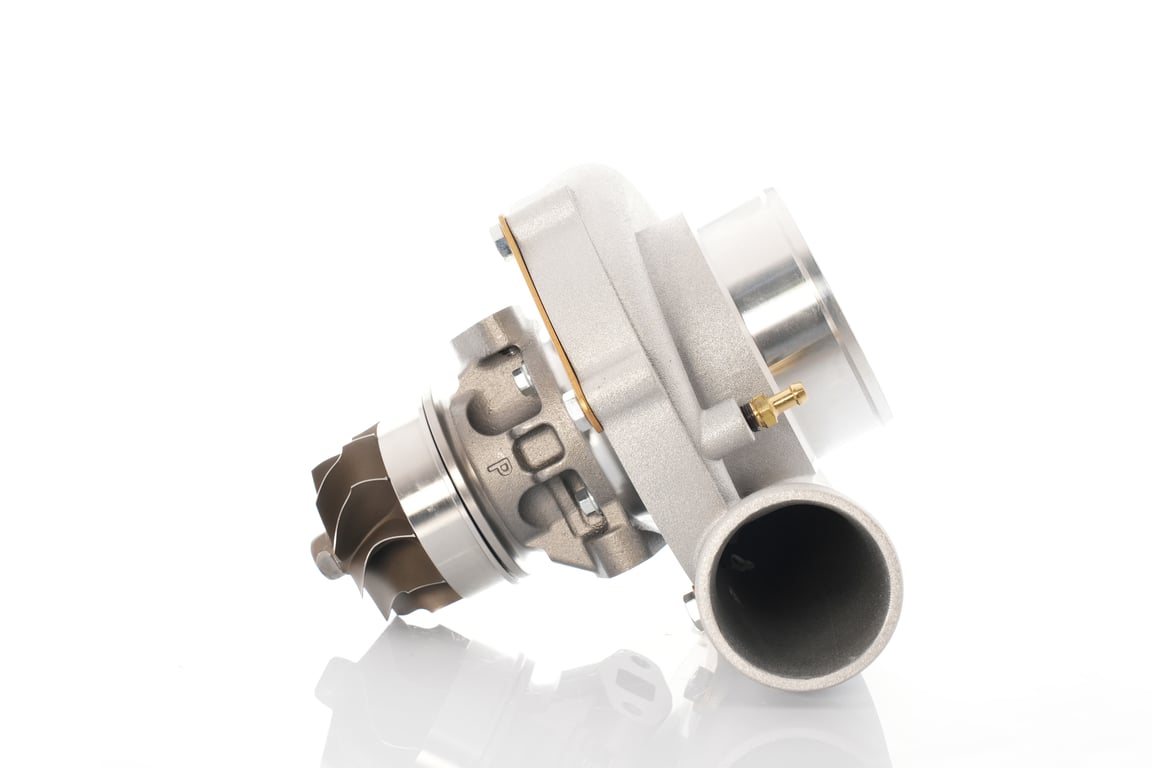

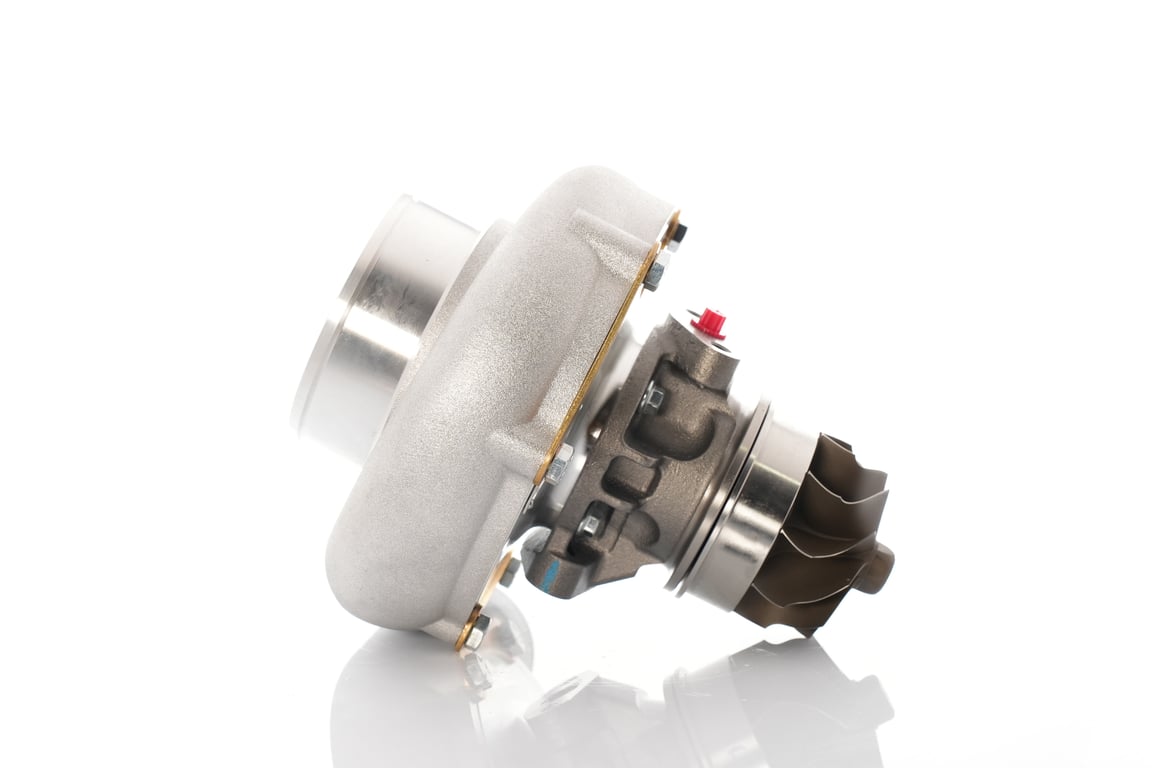

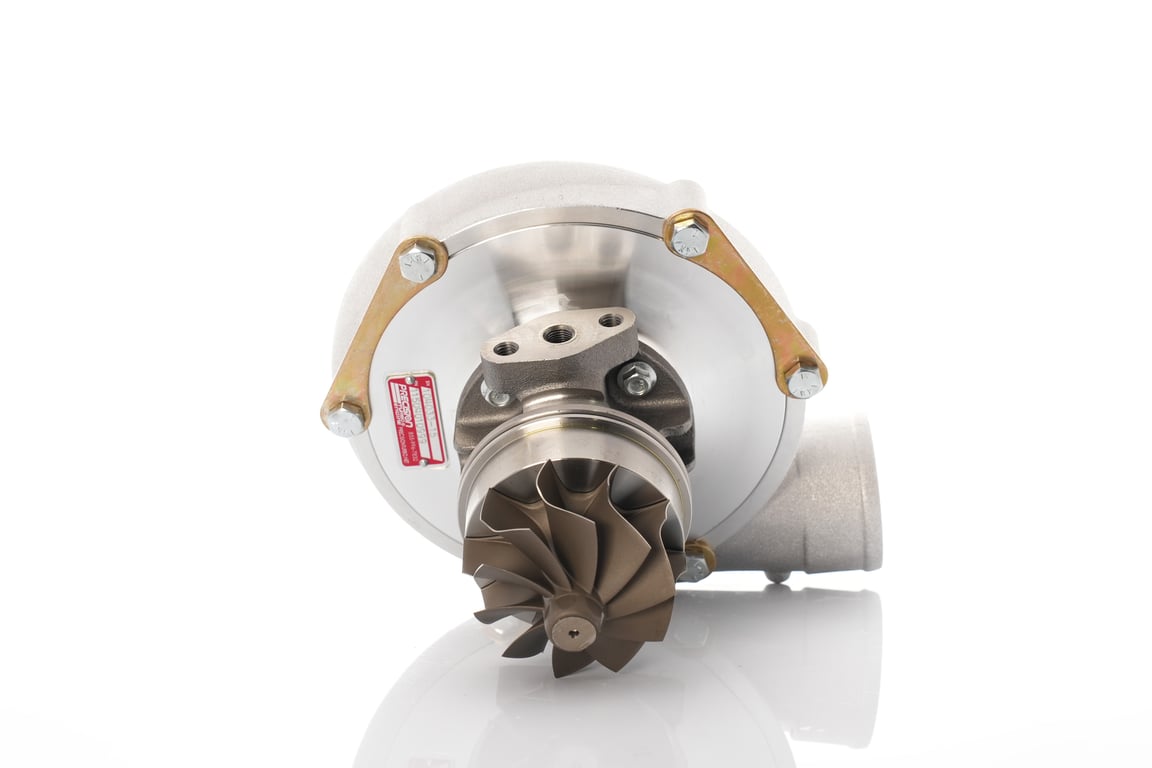

PTE's PT6766 Turbocharger features the following:
• HP Rating: 935
• Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 67mm inducer compressor wheel
• Compressor cover options:
• - "E" compressor cover 3.0" inlet/2.0" outlet
• - "S" compressor cover 4.0" inlet/2.5" outlet
• - "Ported S" compressor cover 4.0" inlet/2.5" outlet
• - "H" compressor cover 4.0" inlet/3" outlet
• - "Ported H" compressor cover 4.0" inlet/3" outlet
• Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
• Turbine housing options:
• - T3 .63 or .82 A/R with 4 bolt (2.5") discharge
• - T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
• - T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
• - V-Band inlet .82 A/R with V-Band discharge
• - T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" OD (outer diameter) V-Band discharge
• - T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" OD (outer diameter) V-Band discharge
• - Buick .63 or .85 A/R
• - K26 .82 A/R
* NOTE: Additional cost may apply for certain housings.
Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
