hp rating: 770 HP

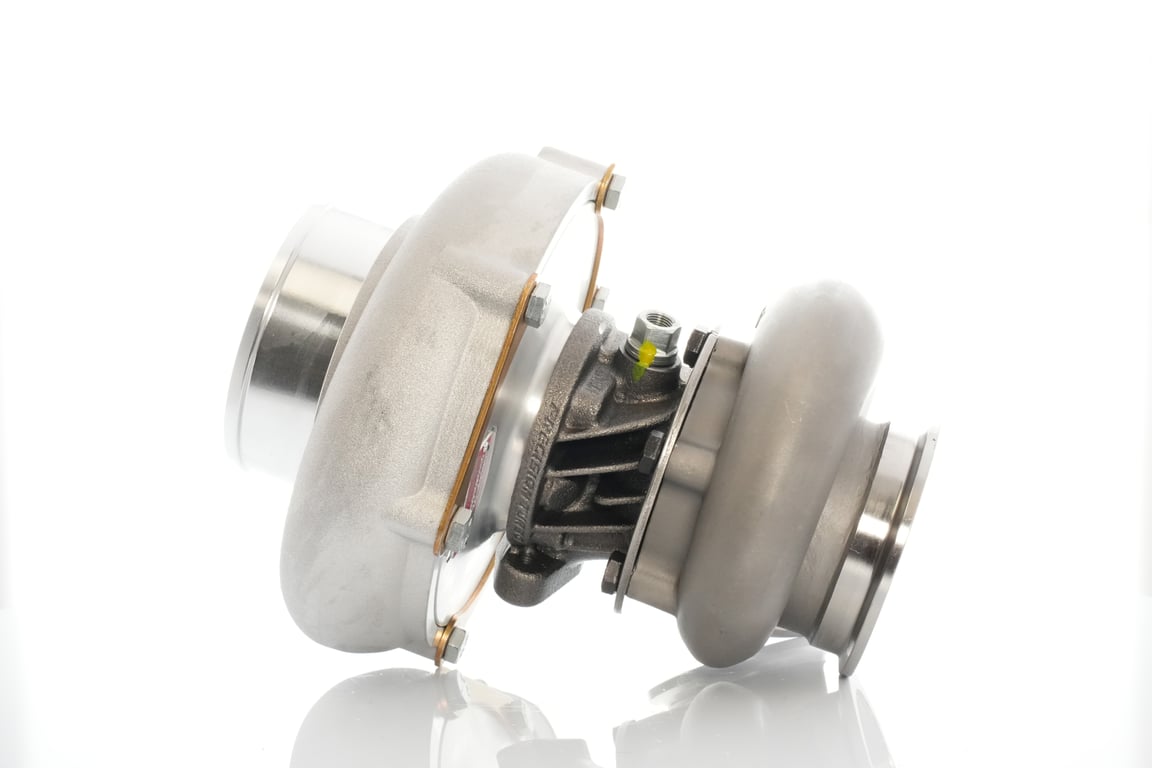

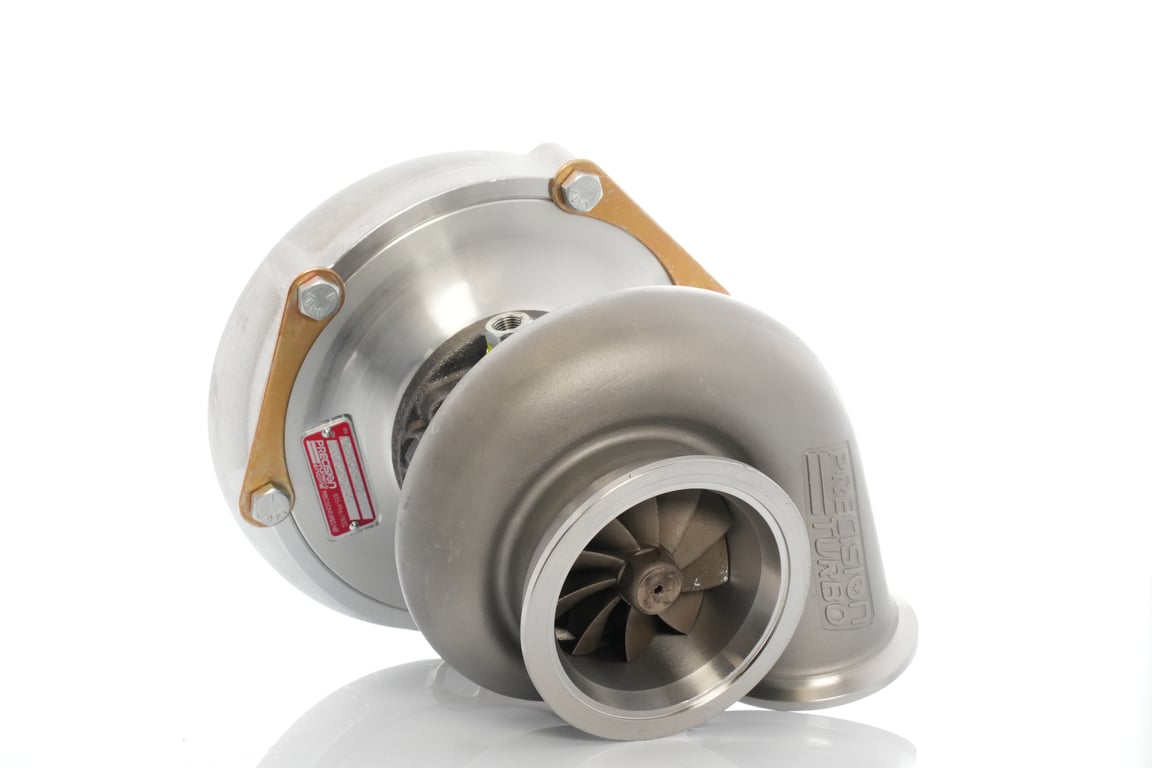

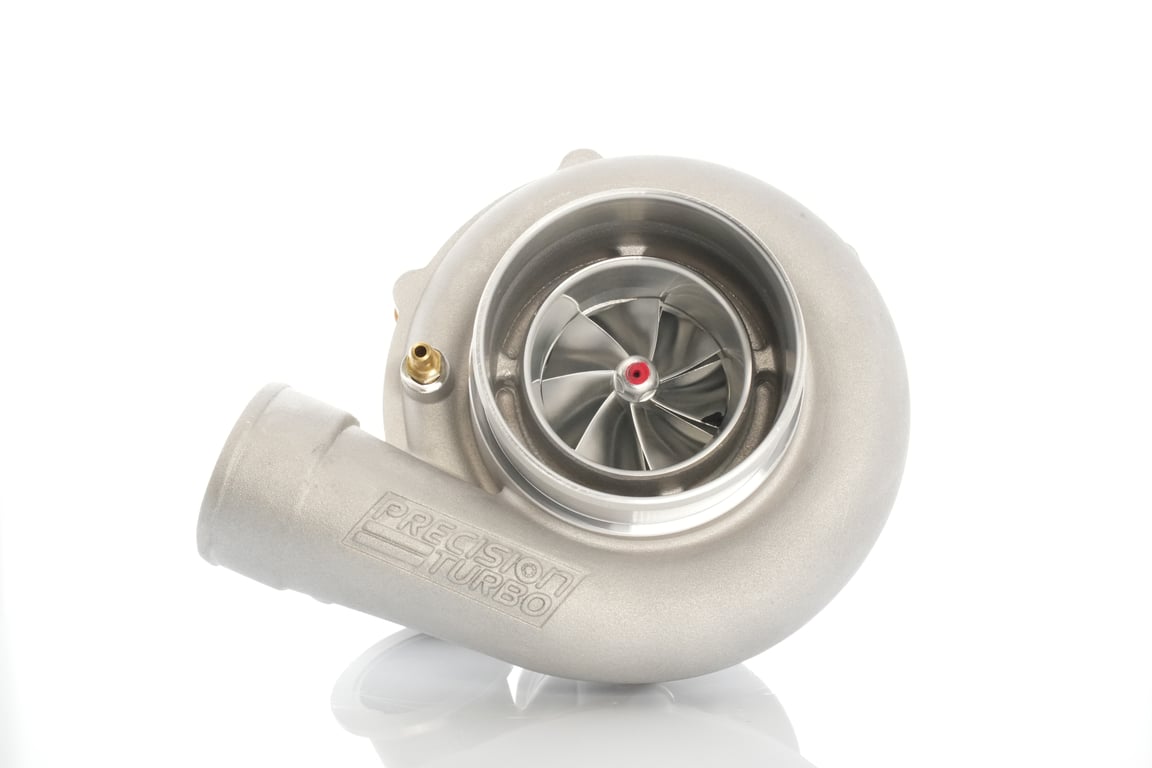

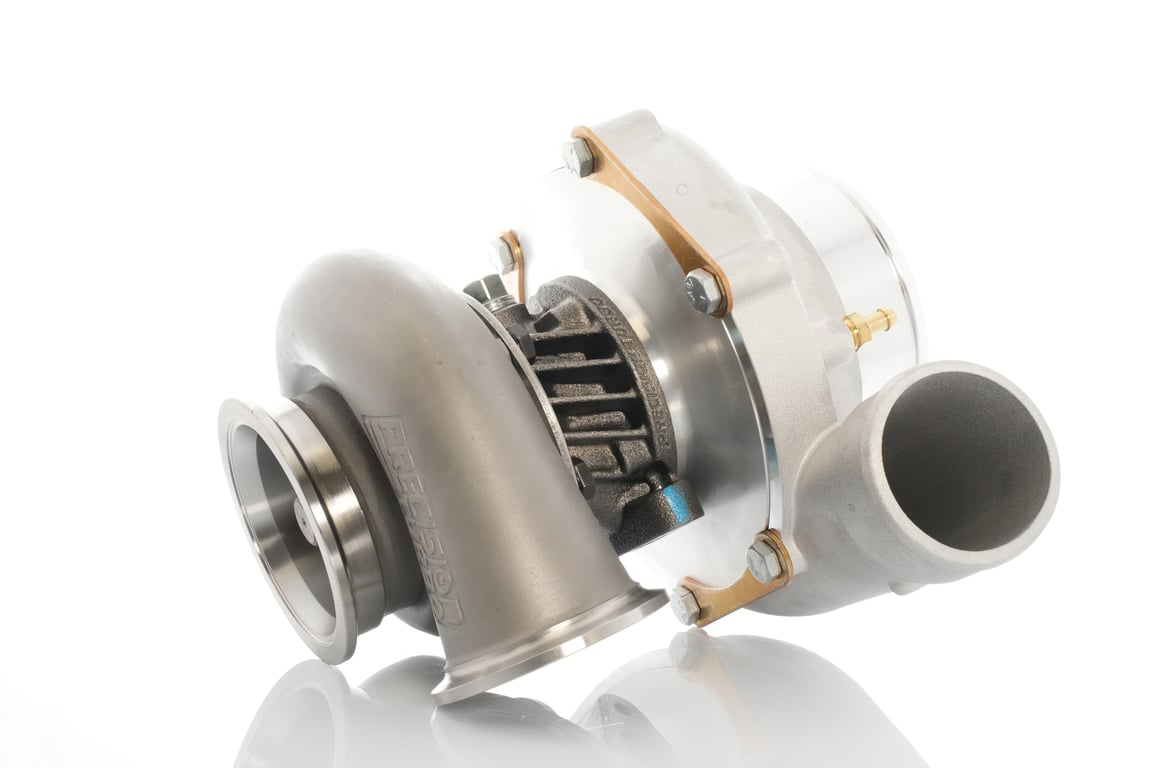

NEXT GEN PT5658

The Next GEN 56mm turbo is set to replace the GEN 2 55 and Gen 2 58 turbos. With a state-of-art 56mm Next GEN compressor wheel machined from a 2618 aluminum forging, the Next GEN 56 will be available in 5658 and 5662 standard rotation configurations. We are also offering a Next GEN 5658 reverse rotation version. The Next GEN 56 is proven to provide exceptional performance.

Part number — 50605406149
in stock

Turbine housing style

T3 SS V-BAND
  • T3 SS V-BAND

A r

0.82 A/R
  • 0.82 A/R

Turbine housing outlet

V-BAND
  • V-BAND

MSRP

$2,168.61

QTY

  • Specs
  • Details
  • Downloads

Specs

hp rating: 770 HP
generation: T3 SS V-BAND
cover style: SCP-COVER
compressor inducer: 56.0 MM

Details

Exclusive NEXT GEN 56mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging

Compressor cover enhancements provide 10% more flow over the previous GEN 2 cover

Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

High flow/ highly efficient 58mm & 62mm CEA turbine wheel

5658 turbo also available in Reverse Rotation


FEATURES
New Compressor wheel inducer: 55.98 mm
New Compressor wheel exducer: 76.20 mm
New Compressor wheel tip: 80.40 mm
Max Shaft Speed: 180,460 rpm


FITTINGS, FLANGES & CLAMPS:
PFT047-3039: Recommended Oil Feed Fitting
PTP074-2108:Recommended Oil Drain Flange
PTP074-1008/1011/1030:Turbine Housing Inlet Flange
PTP071-1027:Turbine Housing Inlet Clamp
PTP074-3005/3007/3008/3012/3014/3036/3050 Turbine Housing Outlet Flange
*Clamps & Flanges sold separately.
