hp rating: 1200 HP

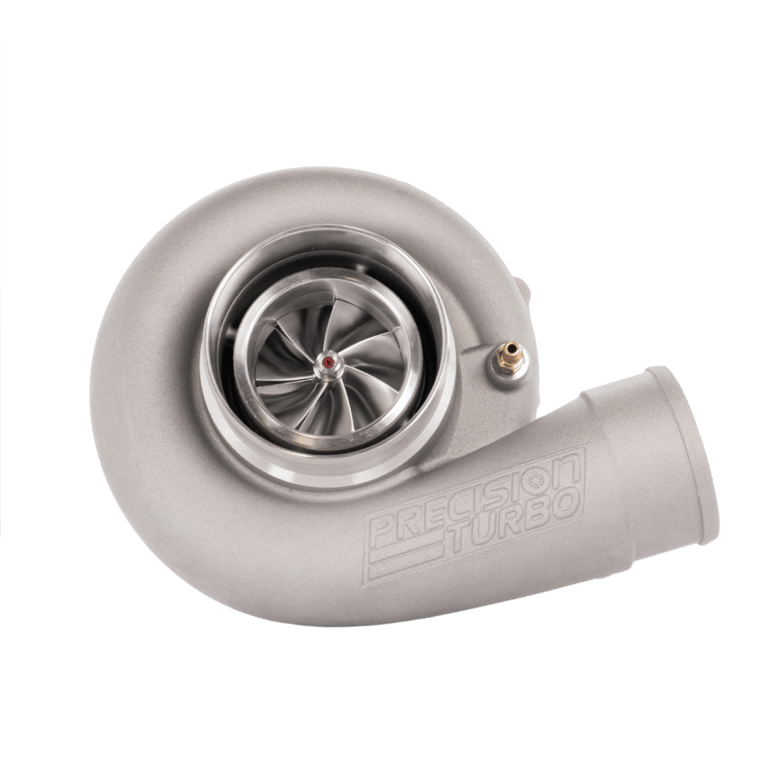

R/R Next GEN PT6870 HP Cover

All-New Reverse Rotation 6870 Next GEN

We are proud to announce the latest rendition of the NEXT GEN turbochargers, adding to the Mirror Image / Reverse Rotation turbocharger lineup. Precision turbo has proven time again that we provide the highest performance in turbocharger technology. With countless success stories around the world, and many more to come. The GEN2 6870 served the racing community well, for many years, with countless records broken, and races won. Combining NEXT GEN technology with one of our most successful and popular turbochargers, it was just a matter of time before we applied that winning combo to our mirror/reverse rotation lineup. What you’ve all been waiting for is finally here: “The All-New Reverse Rotation NEXT GEN 6870 turbocharger”.

The evolution of our lineup involves the development of a new compressor wheel and cover aerodynamic designs, improving flow by 10%. Optioned in both SCP and HP compressor covers to meet your needs, in addition to multiple turbine housing options ranging from stainless steel T3 sized v-band in/out to stainless steel T4 sized v-band in/out.

- HP Rating: 1200 HP

- Next Gen Aero Technology w/ an all-new flow enhancement to the compressor housing providing 10% more flow than previous Gen 2 turbocharger

- CEA compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.

- Air-cooled dual ceramic ball bearing center section for quick turbo response & durability.

- Available in an All-New SCP compressor cover w/ 4” inlet and 2-1/2”outlet and in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow.

- High flow / highly efficient 70mm turbine wheel

- Compressor Wheel Inducer: 68mm

- Compressor Wheel Exducer: 92.5mm 94.7 ET

- Turbine Wheel Inducer: 78.7mm

- Turbine Wheel Exducer: 70.2mm

Turbine Housing Options:

- T3 Stainless Steel V-Band In/Out turbine housing 1.05 A/R

- T4 Stainless Steel V-Band In/Out turbine housing .81 & .96 A/R

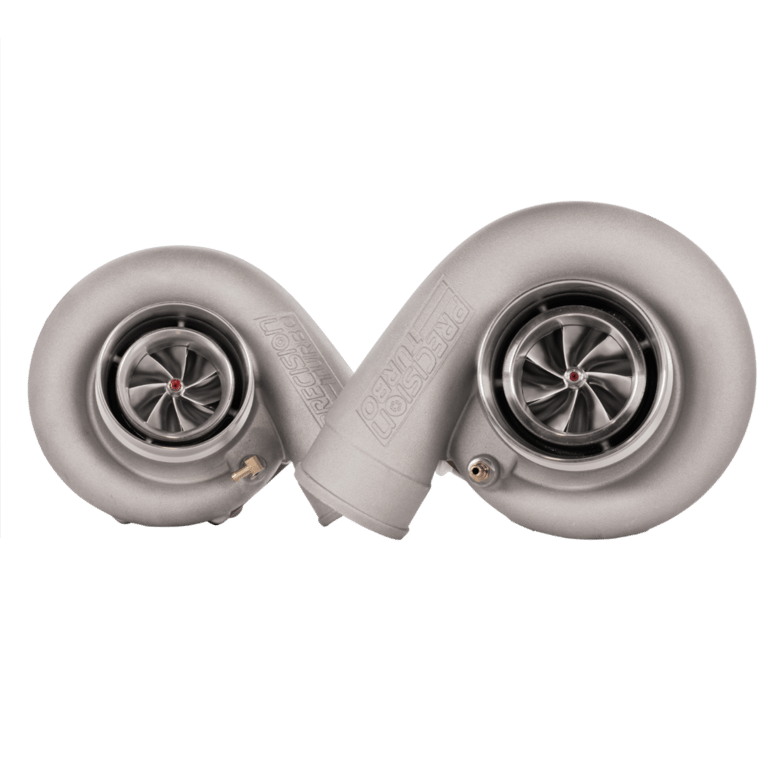

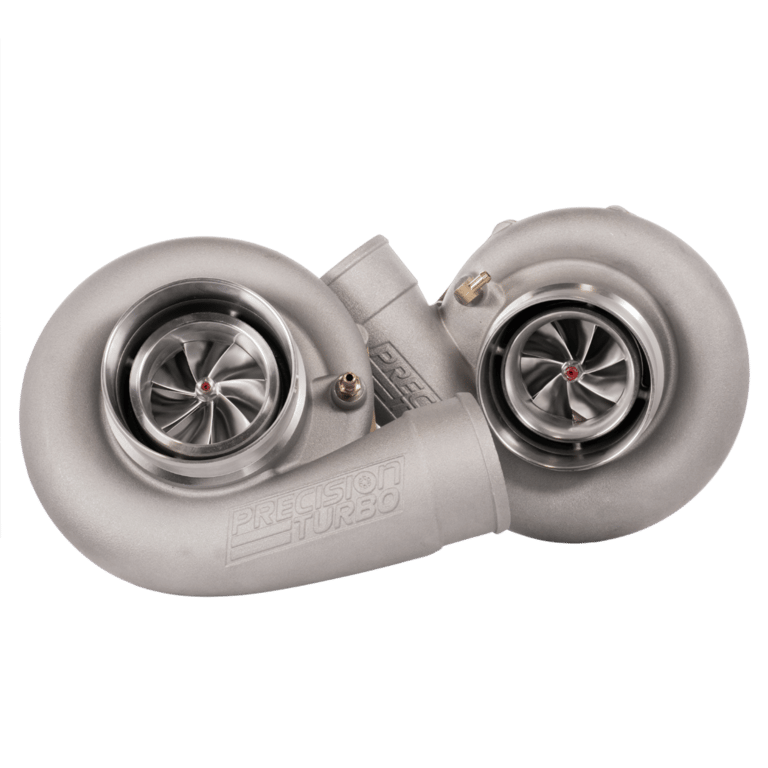

Paired as mirror image setup, the 6870 Next GEN are capable of up to 2400hp.

#precisionturbo www.precisionturbo.com

Part number — 51607250289
in stock

Compressor cover style

Turbine housing style

A r

MSRP

$3,174.20

QTY

  • Specs
  • Details
  • Downloads

Specs

hp rating: 1200 HP
generation: T4 SS V-BAND
cover style: H-COVER
compressor inducer: 68.0MM

Details

All-New Reverse Rotation 6870 Next GEN

We are proud to announce the latest rendition of the NEXT GEN turbochargers, adding to the Mirror Image / Reverse Rotation turbocharger lineup. Precision turbo has proven time again that we provide the highest performance in turbocharger technology. With countless success stories around the world, and many more to come. The GEN2 6870 served the racing community well, for many years, with countless records broken, and races won. Combining NEXT GEN technology with one of our most successful and popular turbochargers, it was just a matter of time before we applied that winning combo to our mirror/reverse rotation lineup. What you’ve all been waiting for is finally here: “The All-New Reverse Rotation NEXT GEN 6870 turbocharger”.

The evolution of our lineup involves the development of a new compressor wheel and cover aerodynamic designs, improving flow by 10%. Optioned in both SCP and HP compressor covers to meet your needs, in addition to multiple turbine housing options ranging from stainless steel T3 sized v-band in/out to stainless steel T4 sized v-band in/out.

- HP Rating: 1200 HP

- Next Gen Aero Technology w/ an all-new flow enhancement to the compressor housing providing 10% more flow than previous Gen 2 turbocharger

- CEA compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.

- Air-cooled dual ceramic ball bearing center section for quick turbo response & durability.

- Available in an All-New SCP compressor cover w/ 4” inlet and 2-1/2”outlet and in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow.

- High flow / highly efficient 70mm turbine wheel

- Compressor Wheel Inducer: 68mm

- Compressor Wheel Exducer: 92.5mm 94.7 ET

- Turbine Wheel Inducer: 78.7mm

- Turbine Wheel Exducer: 70.2mm

Turbine Housing Options:

- T3 Stainless Steel V-Band In/Out turbine housing 1.05 A/R

- T4 Stainless Steel V-Band In/Out turbine housing .81 & .96 A/R

Paired as mirror image setup, the 6870 Next GEN are capable of up to 2400hp.

#precisionturbo www.precisionturbo.com
