Specs
hp rating: 620 HP
generation: T3 SS V-BAND
cover style: S-COVER
compressor inducer: 55.0 MM
Details

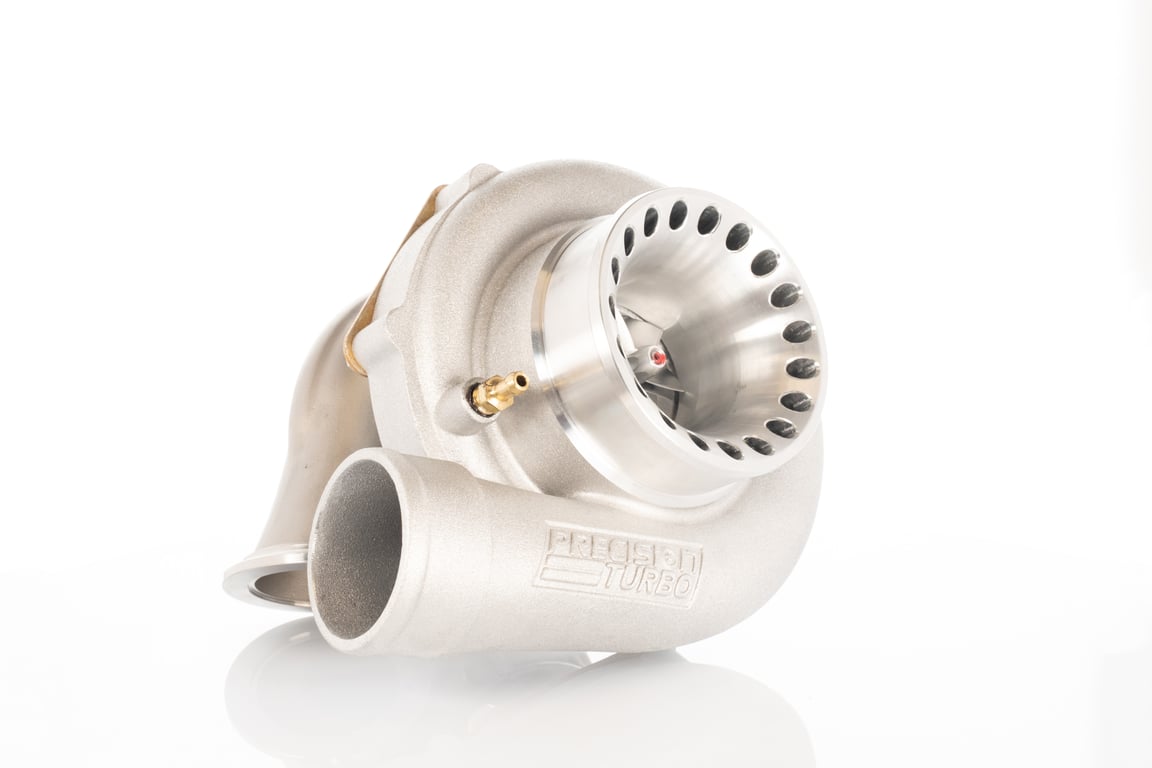

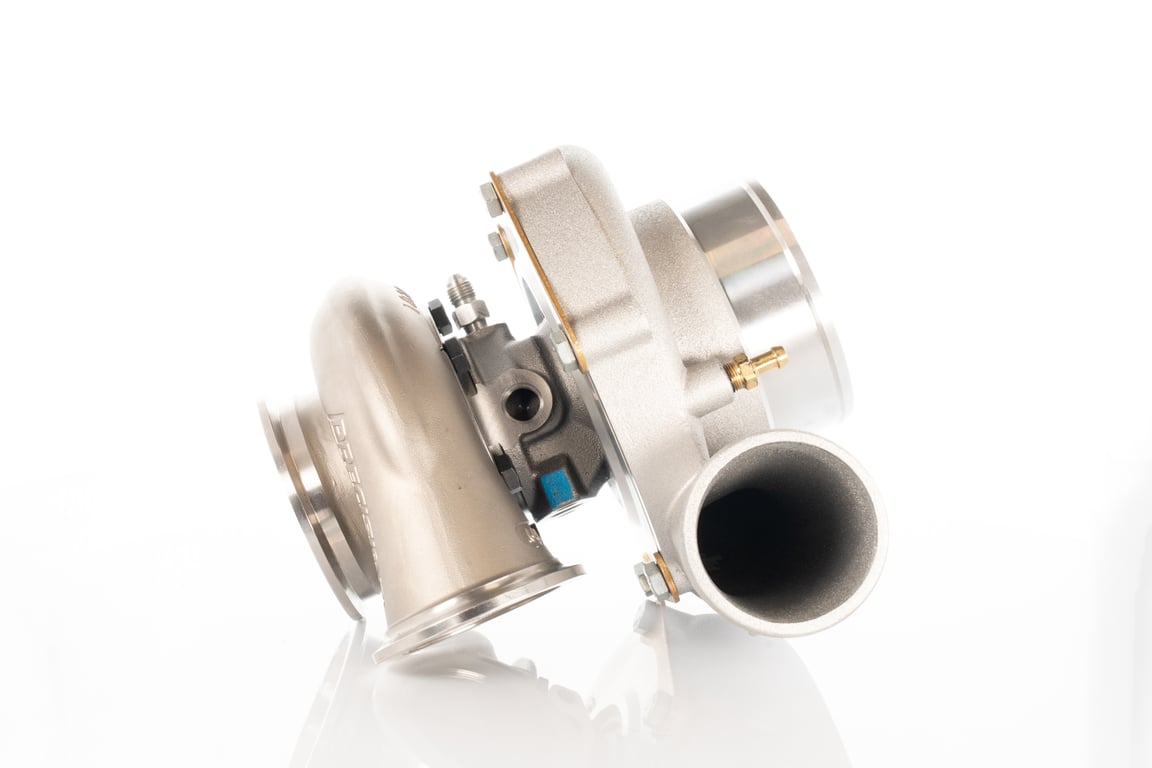

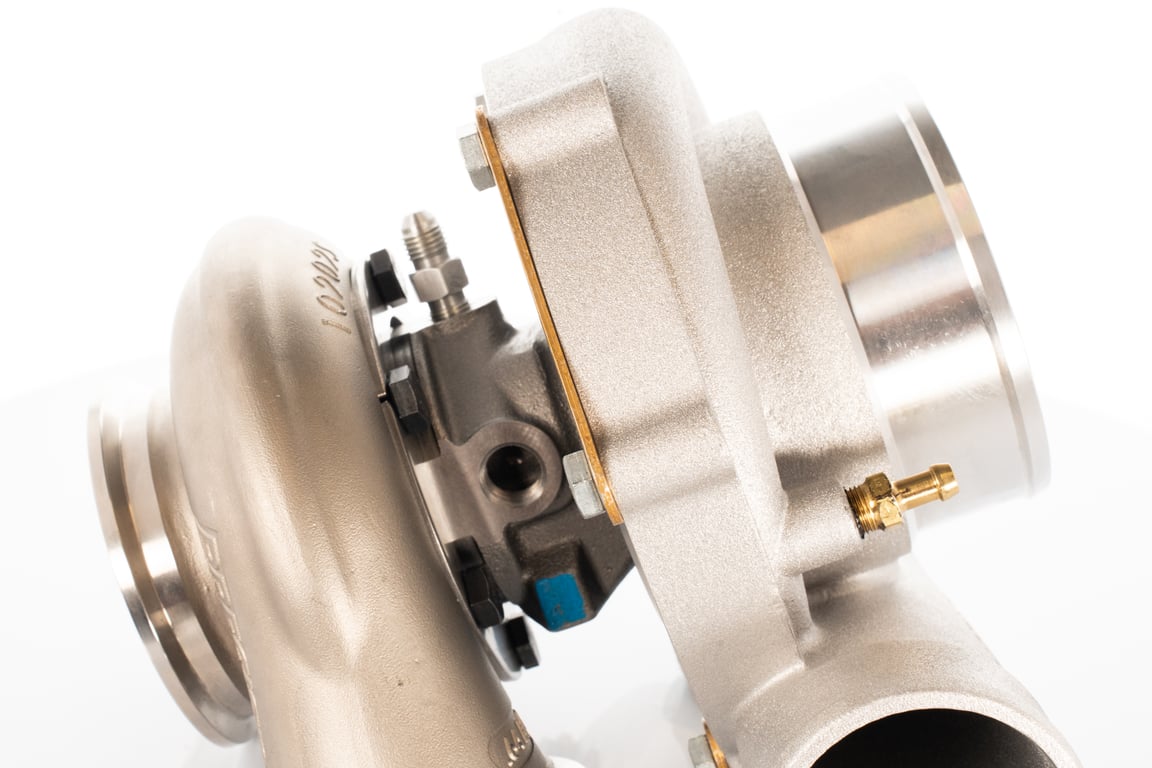

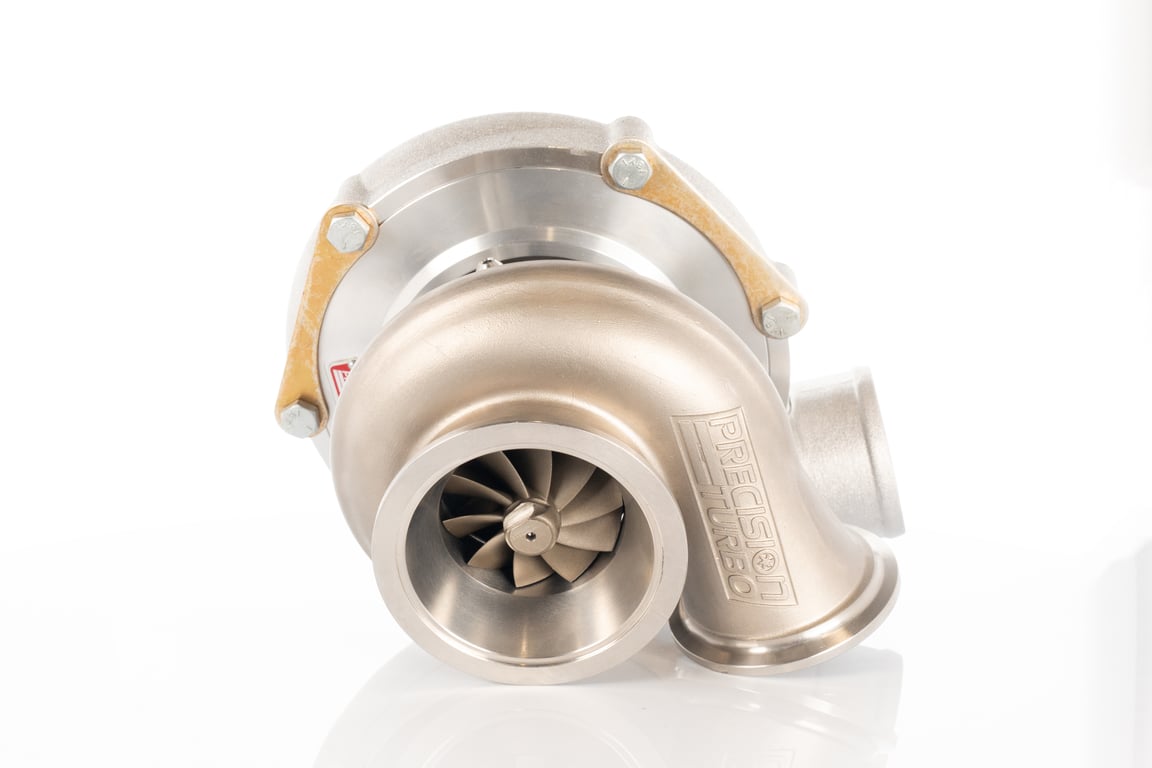

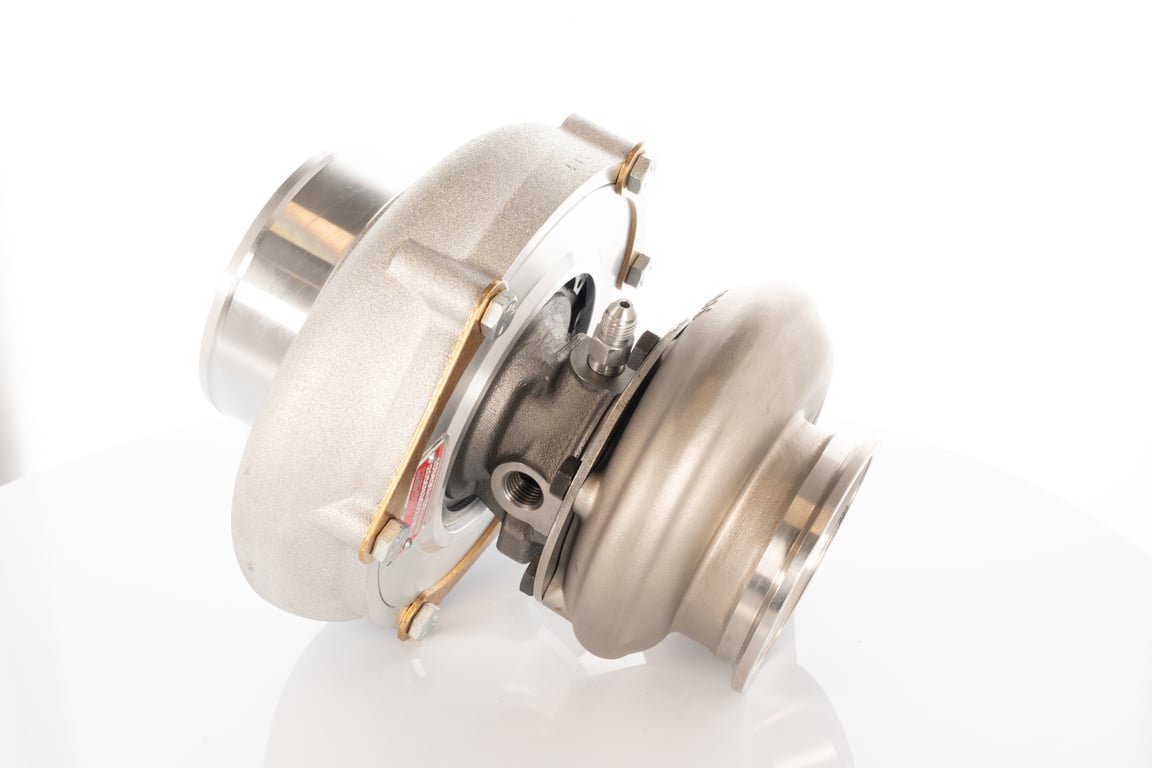

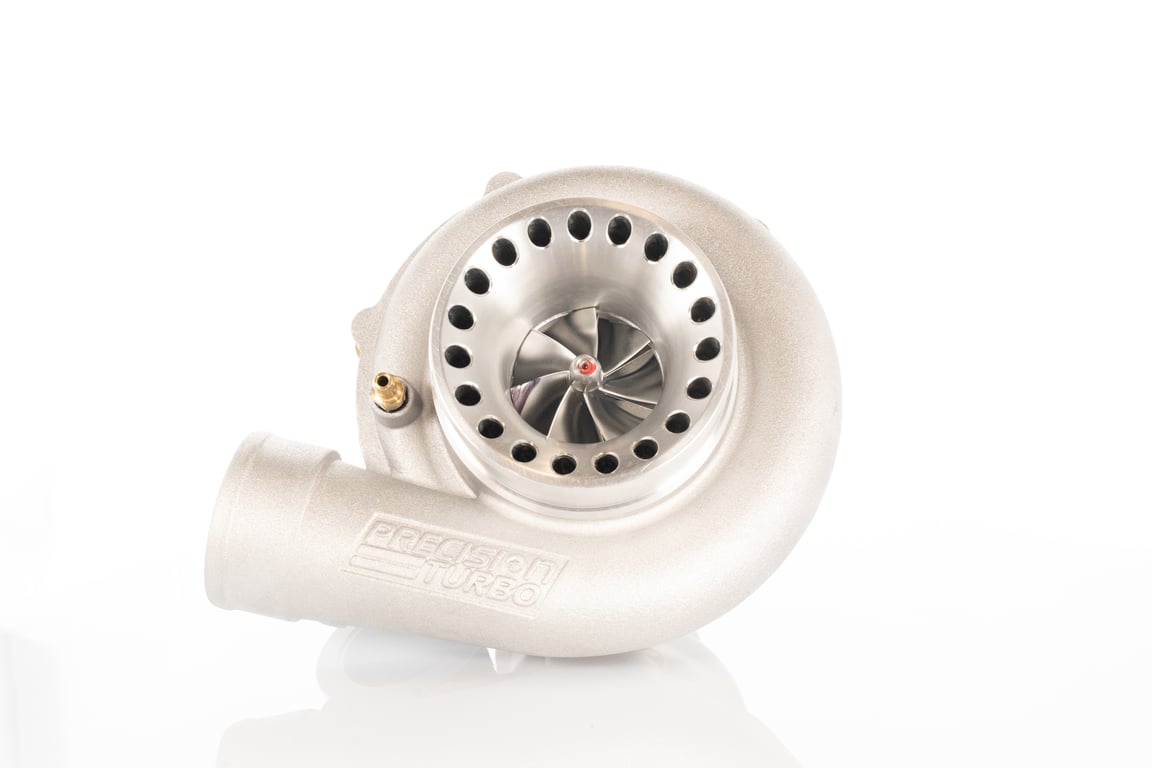

PTE's 5555 Gen 2 CEA Turbocharger features the following:
Exclusive GEN 2 CEA® (Competition Engineered Aerodynamics) 55mm Compressor Wheel machined from a 2618-aluminum forging
Water-Cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA)
Higher efficiency and faster transient response for maximum power and performance
Compressor Cover Options:
"Ported SP" Compressor Cover 4.0" Inlet / 2.5" Outlet
55mm Turbine Wheel
Turbine Housing options:
- T3 4 Bolt Discharge (100mm Garrett Style) .82 A/R - 20504301039
- T3 4 Bolt Discharge .48 A/R - 20504301069
- T3 V Band Discharge .48 A/R - 20504301079
- T3 4 Bolt Discharge .63 A/R - 20504301089
- T3 V Band Discharge .63 A/R - 20504301099
- T3 4 Bolt Discharge .82 A/R - 20504301109
- T3 V Band Discharge .82 A/R - 20504301119
- T3 V Band In / Out .64 A/R - 20504301129
- T3 V Band In / Out .82 A/R - 20504301139
- T3 Stainless V Band In / Out .64 A/R - 20504301279
- T3 Stainless V Band In / Out .82 A/R - 20504301149
