Specs
hp rating: 1550 HP
generation: SPORTSMAN SS V-BAND
cover style: SPORTSMAN-COVER
compressor inducer: 80.0 MM
Details

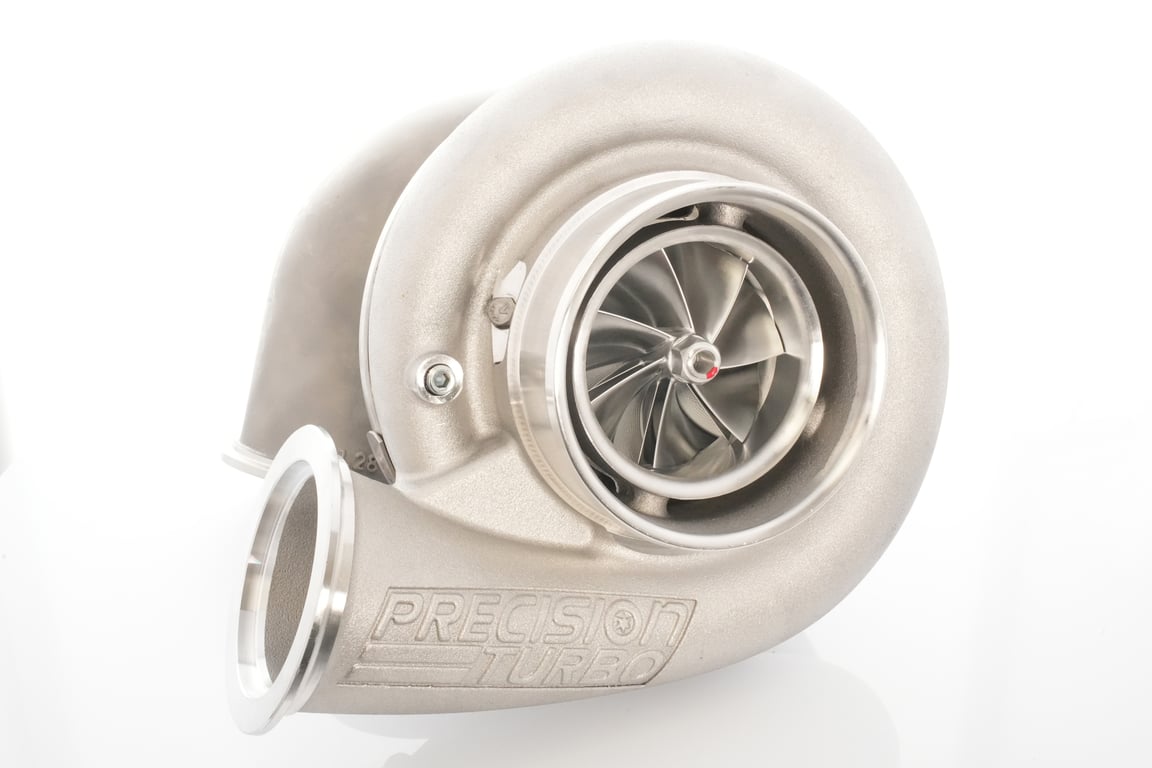

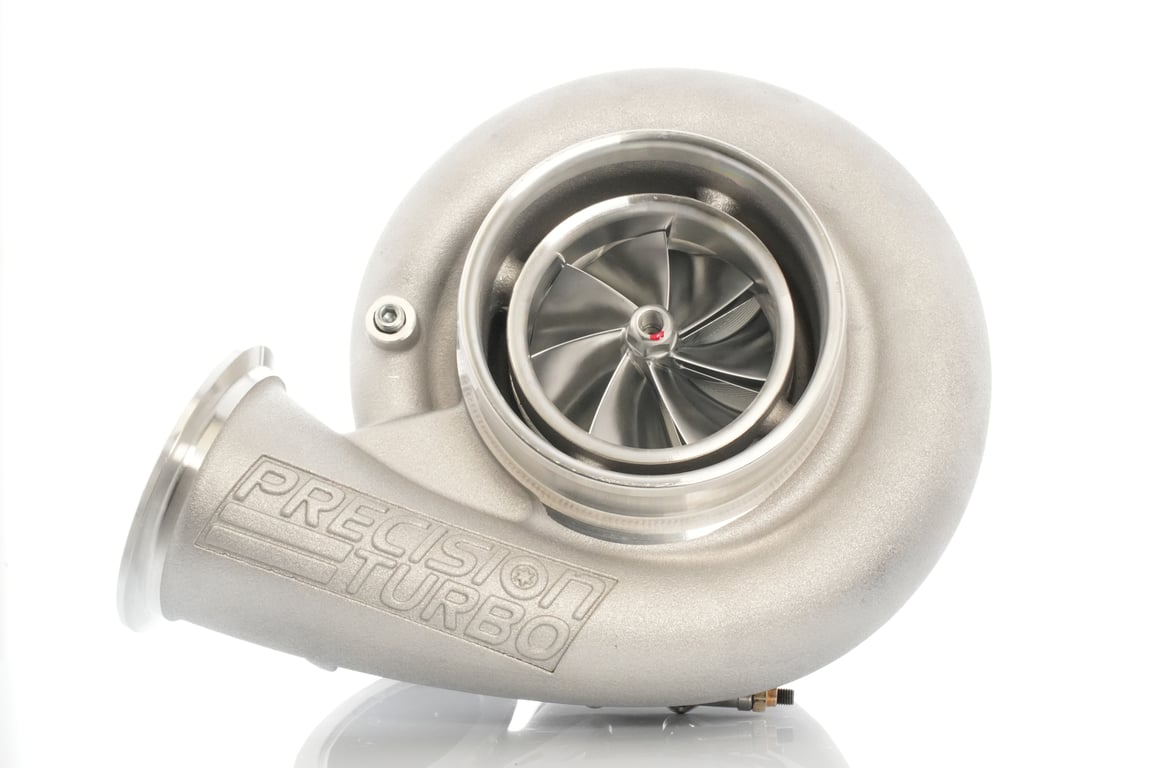

NEXT GEN 80mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging (80.0mm Inducer /112.9 Exducer)
Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA)
Sportsman compressor cover with a 5.0” inlet and 4.2” outlet

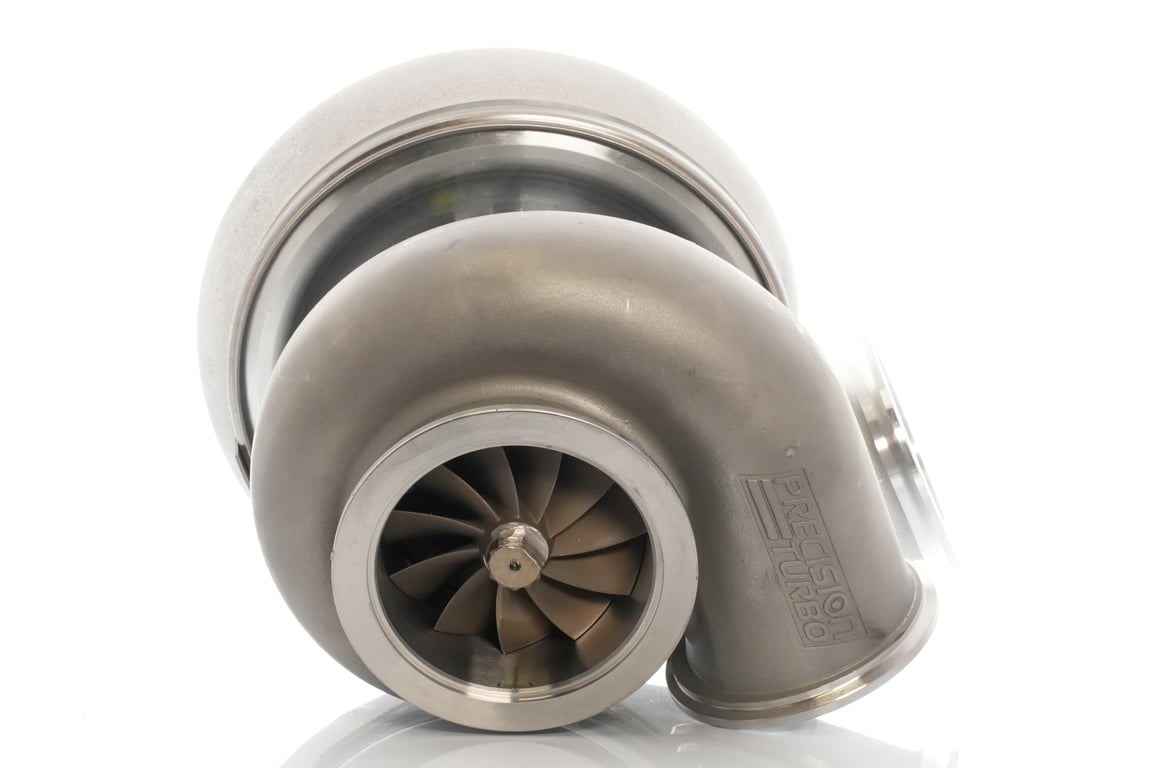

80mm CEA turbine wheel (80.0mm Exducer / 88.0mm Inducer)
Air-cooled, dual ceramic ball bearing
Turbine housing options: T4 divided inlet with 1.12 A/R or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless-steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28.
Rated to support 1,600 flywheel horsepower.
