hp rating: 1550 HP

Next Gen Sportsman 8080

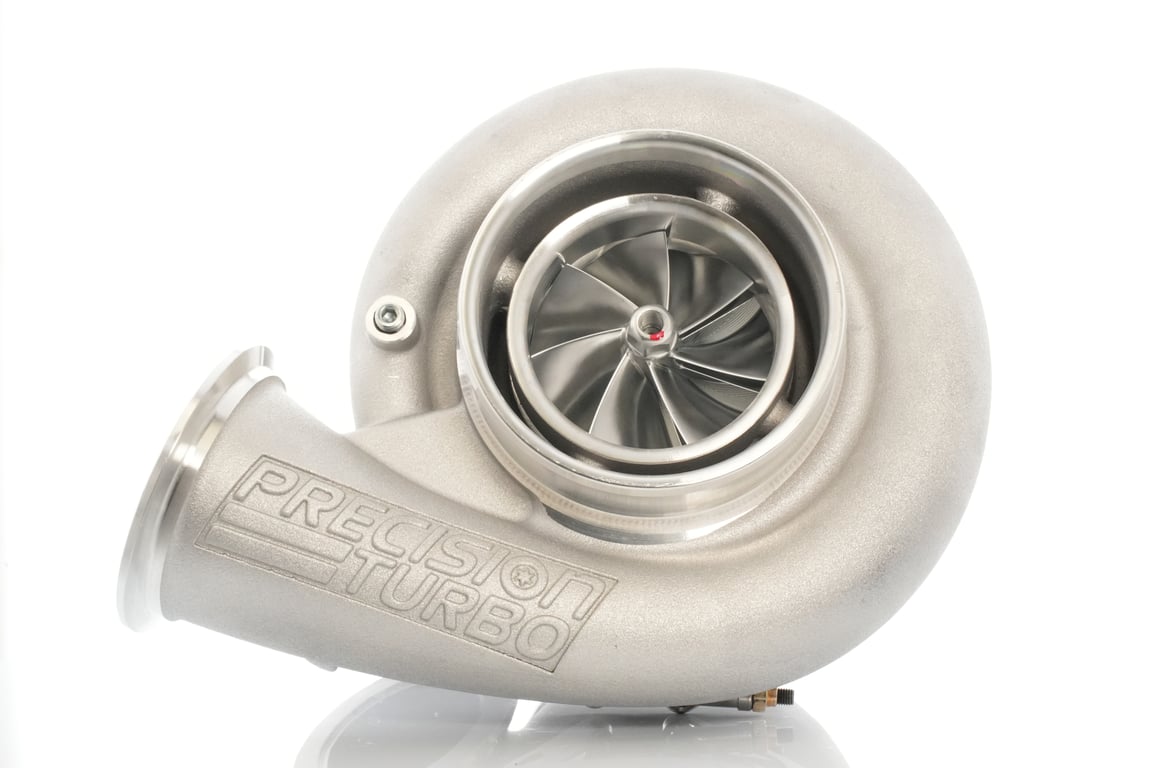

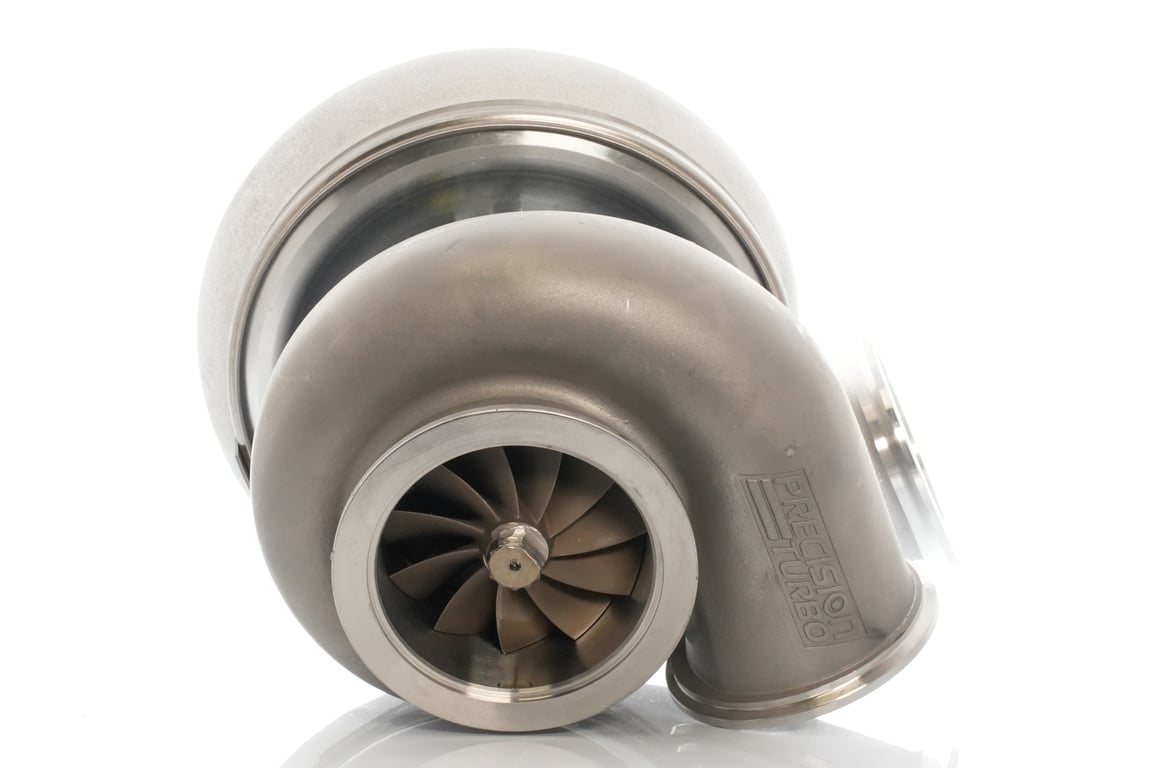

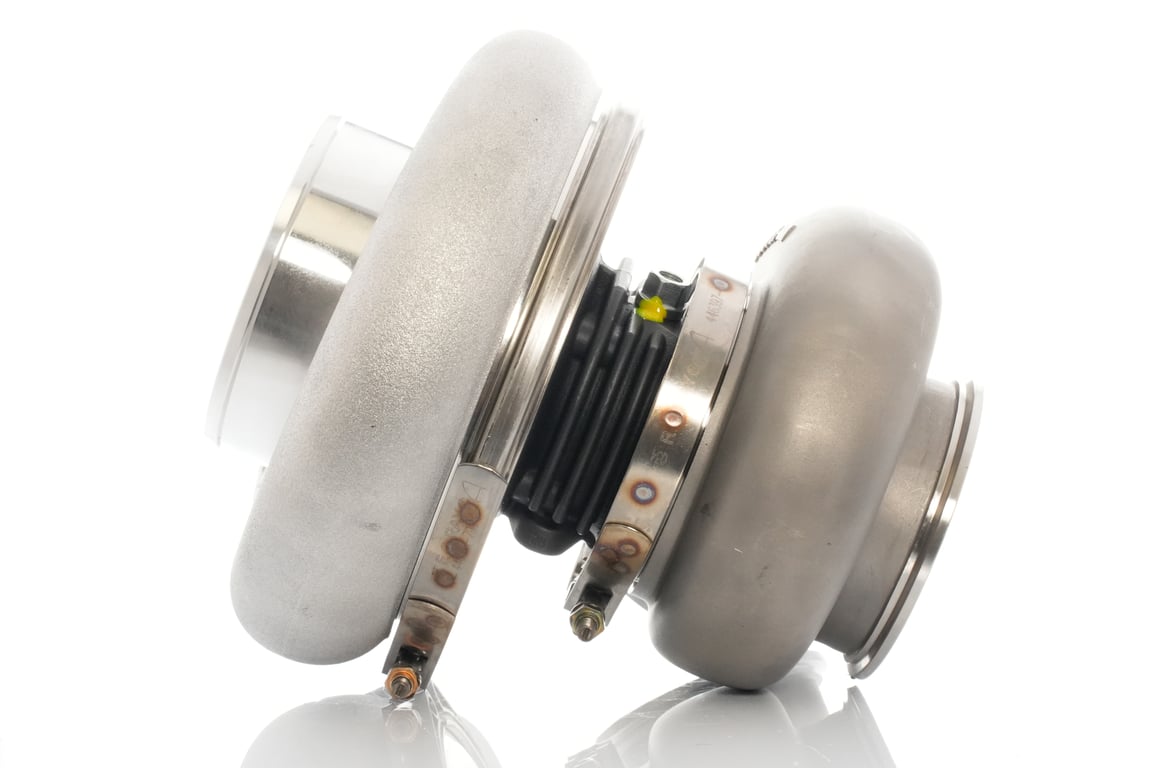

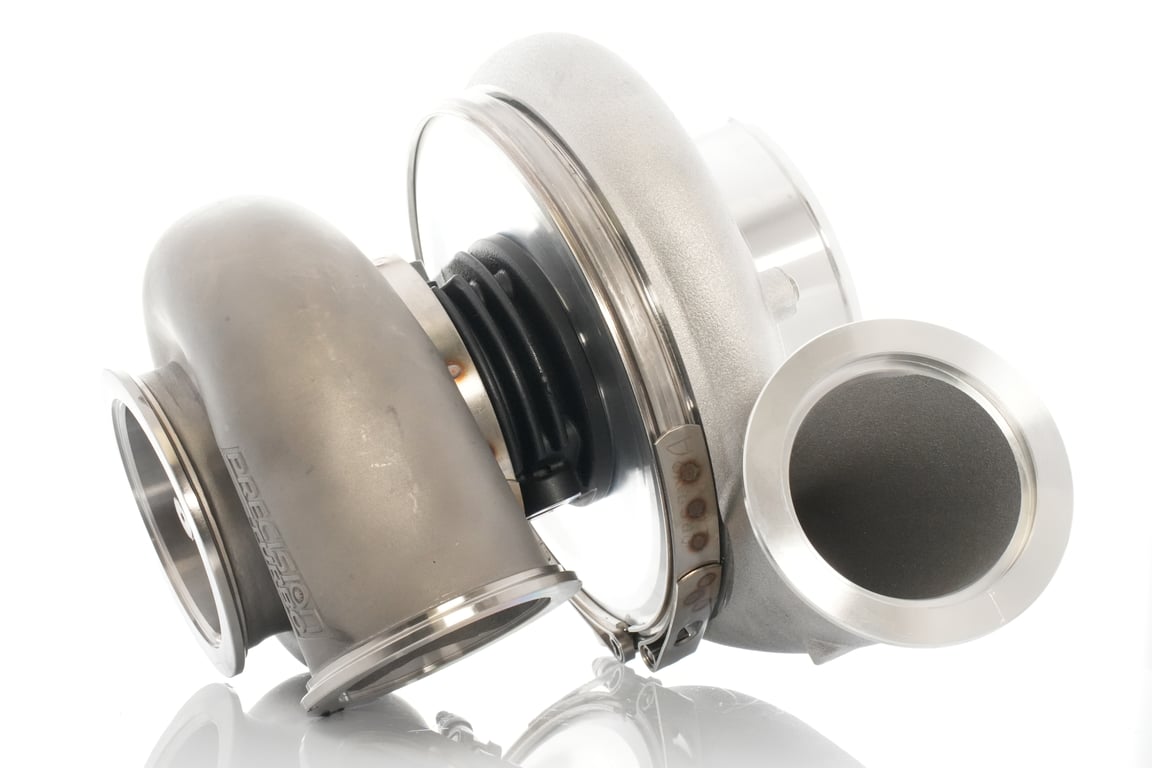

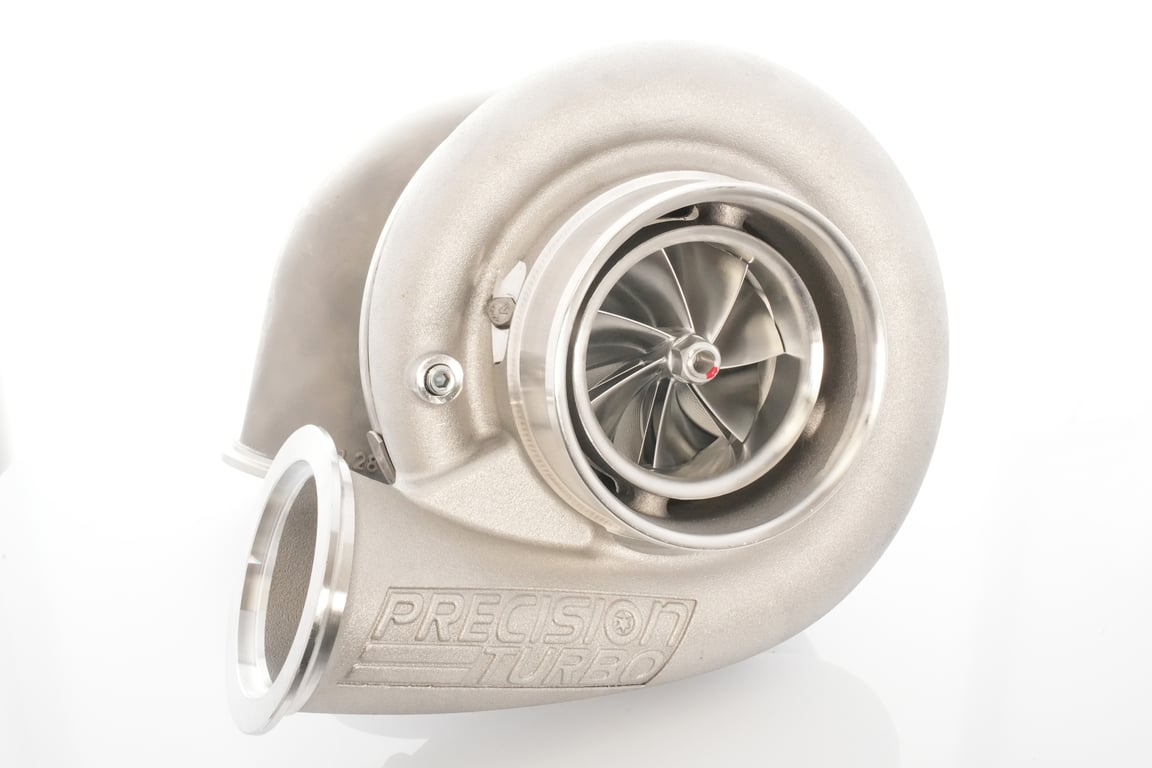

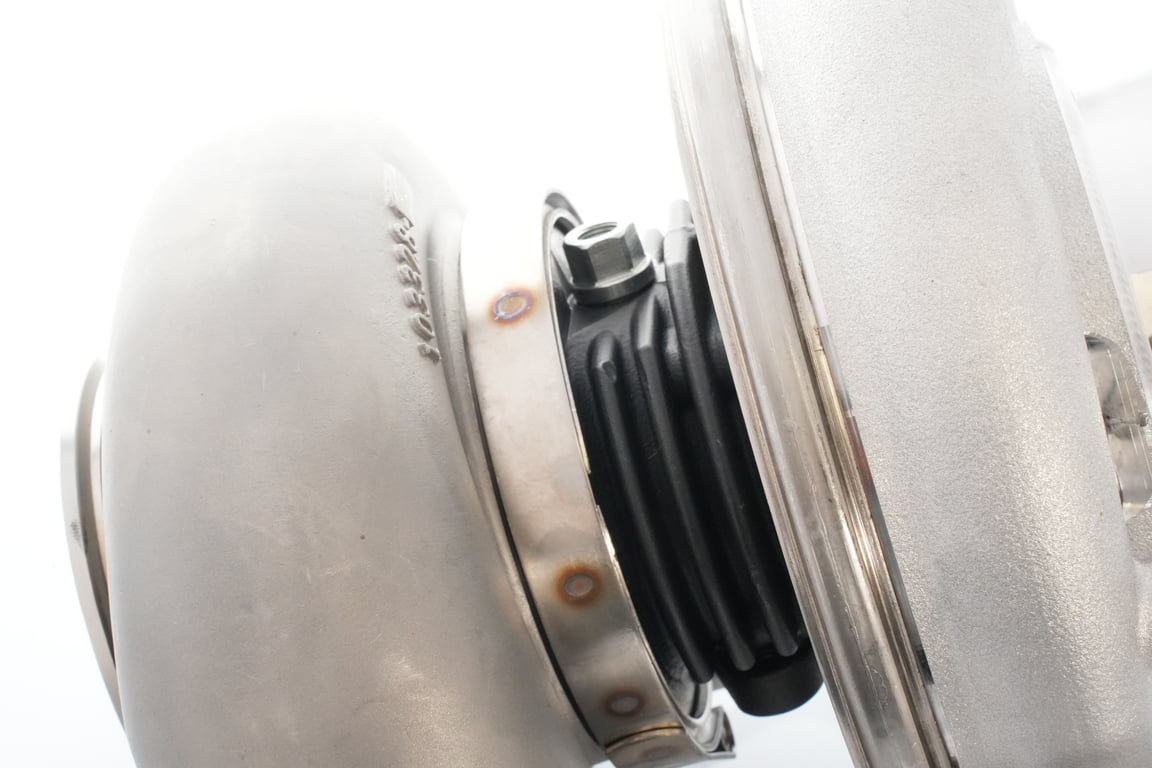

All new sportsman frame sized 8080 turbocharger features a NEXT GEN, 80mm CEA compressor wheel mated to our 80mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 8080 is a record setting turbocharger and is a great option for those looking to make upwards of 1,550hp.
Part number — 27109249339
in stock

Turbine housing style

A r

MSRP

$4,381.61

QTY

  • Specs
  • Details

Specs

hp rating: 1550 HP
generation: SPORTSMAN T4 4-BOLT
cover style: SPORTSMAN-COVER
compressor inducer: 80.0 MM

Details

NEXT GEN 80mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging (80.0mm Inducer /112.9 Exducer) Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA) Sportsman compressor cover with a 5.0” inlet and 4.2” outlet 80mm CEA turbine wheel (80.0mm Exducer / 88.0mm Inducer) Air-cooled, dual ceramic ball bearing Turbine housing options: T4 divided inlet with 1.12 A/R or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless-steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28. Rated to support 1,600 flywheel horsepower.
