hp rating: 1500 HP

Next Gen Sportsman 7685

All new sportsman frame sized 7685 turbocharger features a NEXT GEN, 76mm CEA compressor wheel mated to our 85mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 7685 is a record setting turbocharger and is a great option for those looking to make upwards of 1,500hp.
Part number — 27009219329
in stock

Turbine housing style

A r

MSRP

$4,561.86

QTY

  • Specs
  • Details

Specs

hp rating: 1500 HP
generation: SPORTSMAN T4 4-BOLT
cover style: SPORTSMAN-COVER
compressor inducer: 76.0 MM

Details

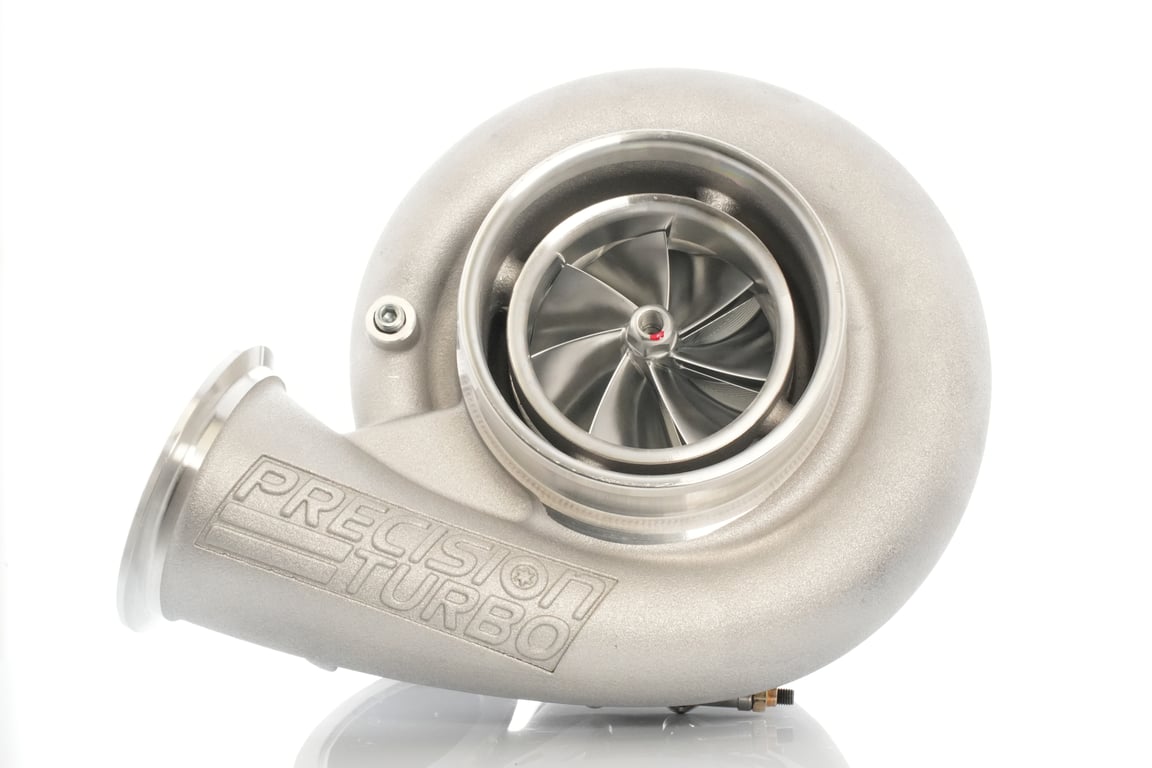

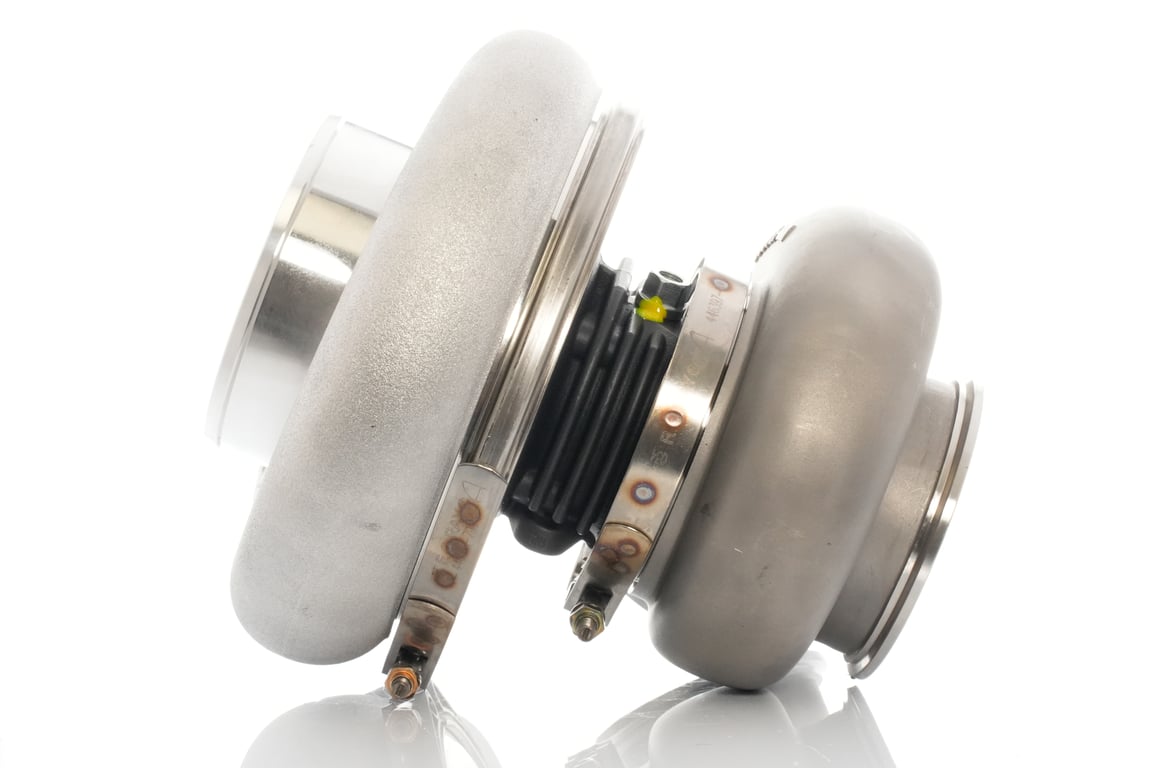

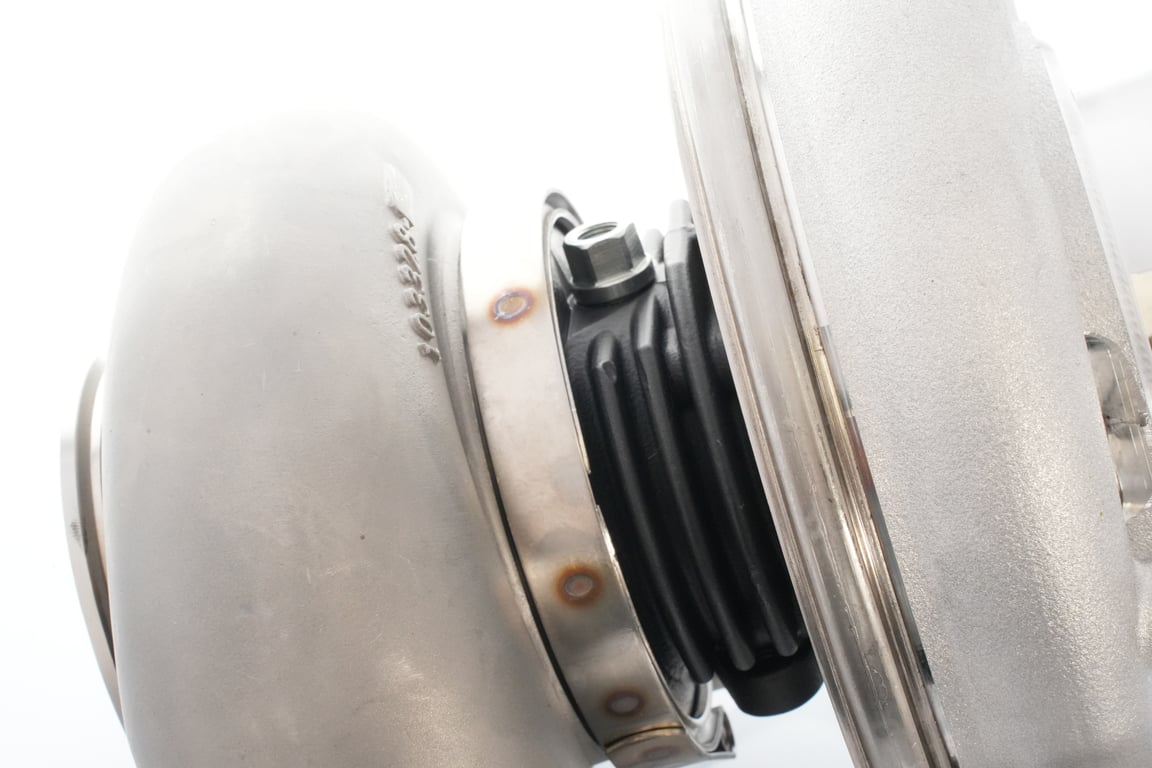

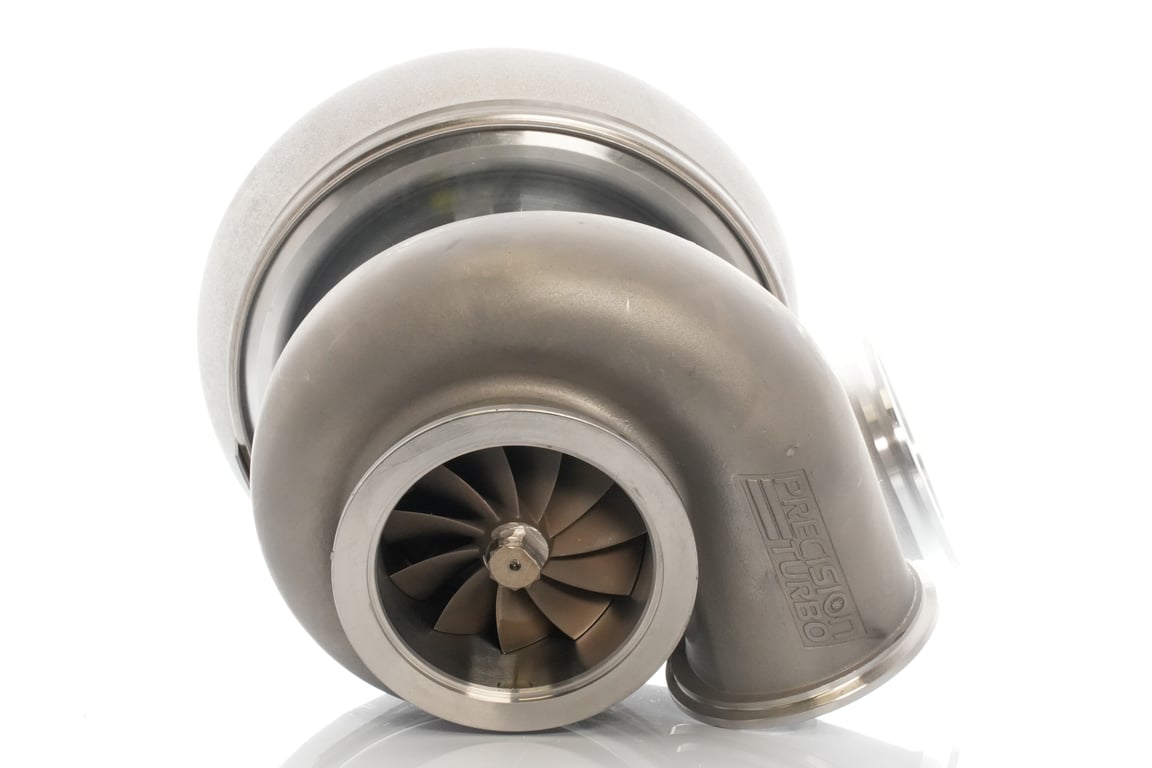

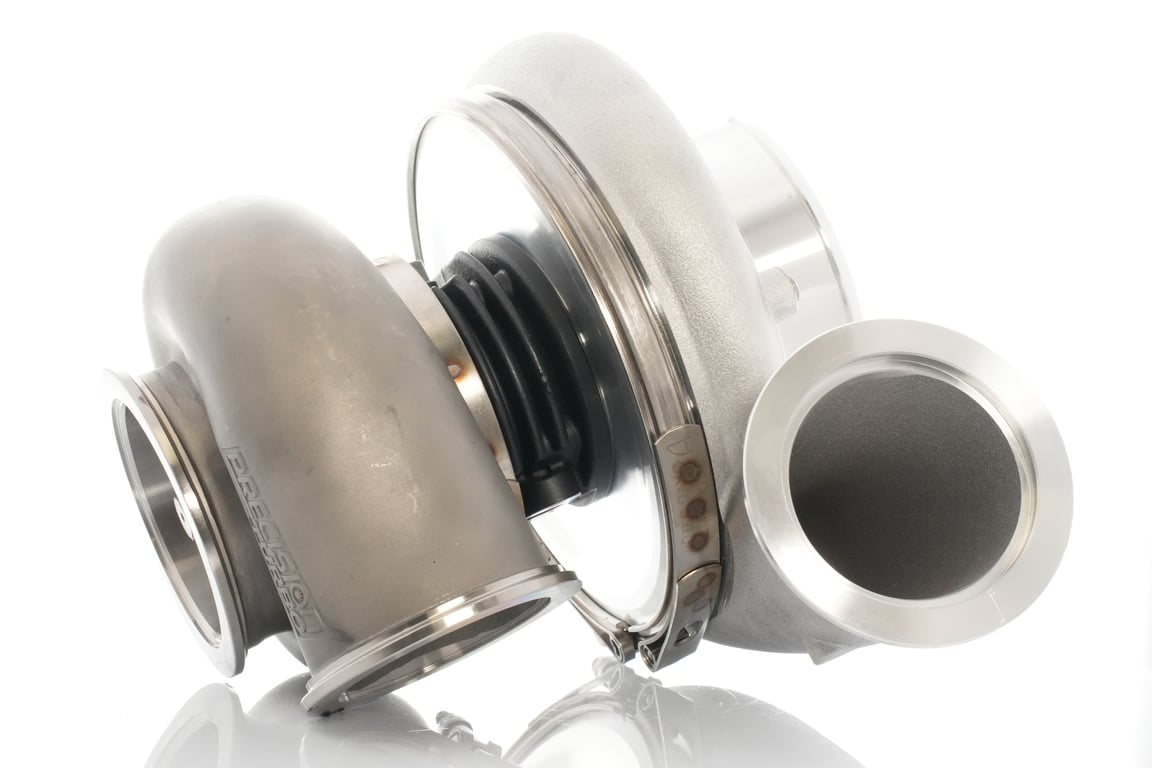

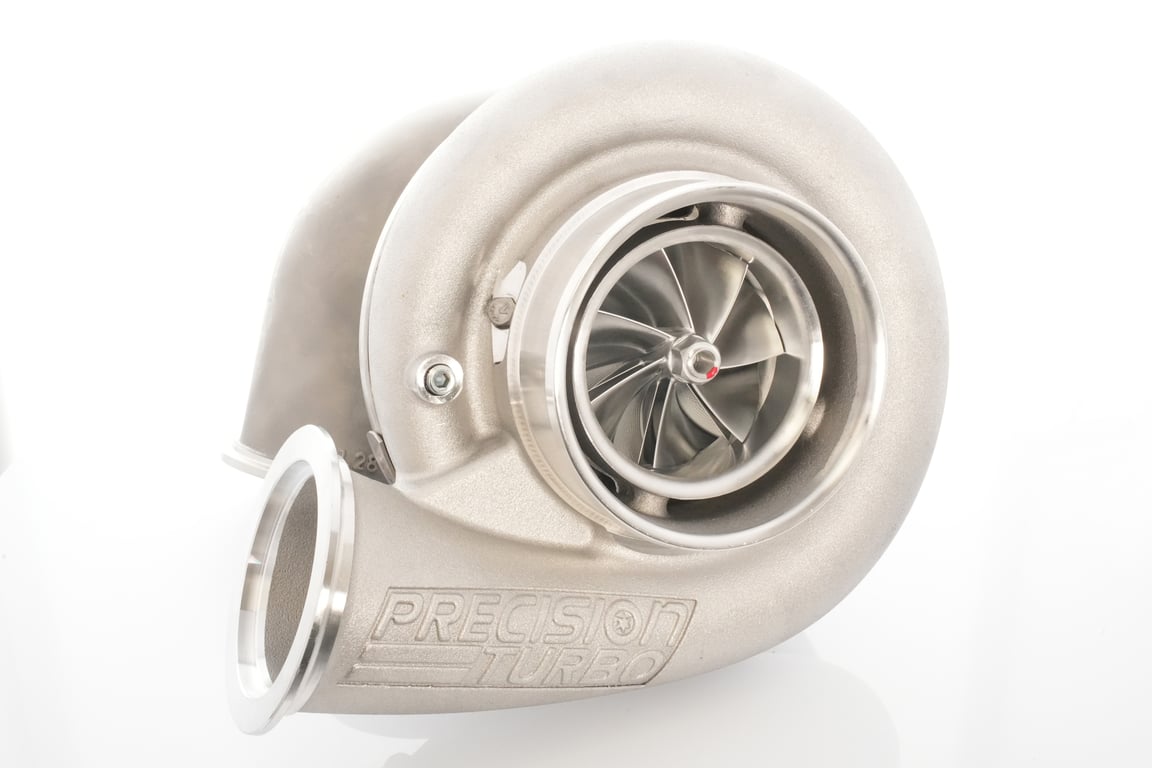

All new sportsman frame sized 7685 turbocharger features a NEXT GEN, 76mm CEA compressor wheel mated to our 85mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 7685 is a record setting turbocharger and is a great option for those looking to make upwards of 1,500hp. NEXT GEN 76mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA) Sportsman compressor cover with a 5.0” inlet and 4.2” outlet 85mm CEA turbine wheel (85mm Exducer / 90mm Inducer) Air-cooled, dual ceramic ball bearing Turbine housing options: T4 divided inlet with .98 A/R, 1.12 A/R, or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28 Rated to support 1,500 flywheel horsepower.
