hp rating: 1350 HP

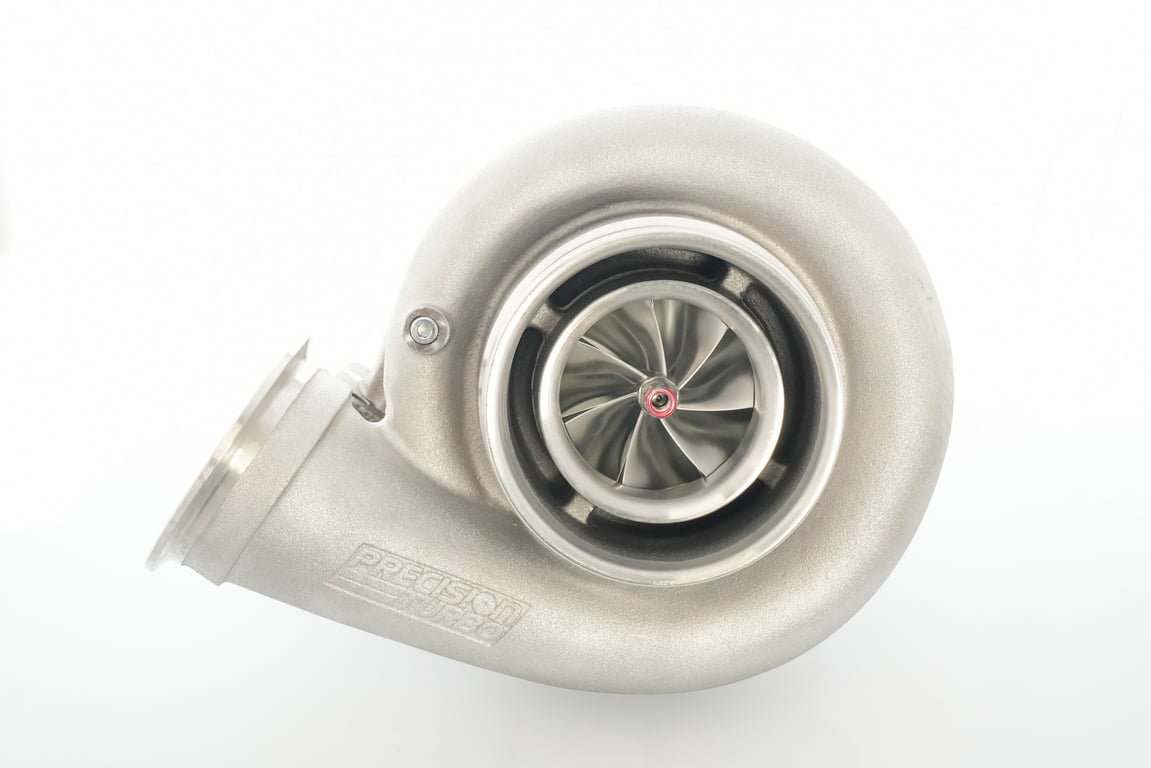

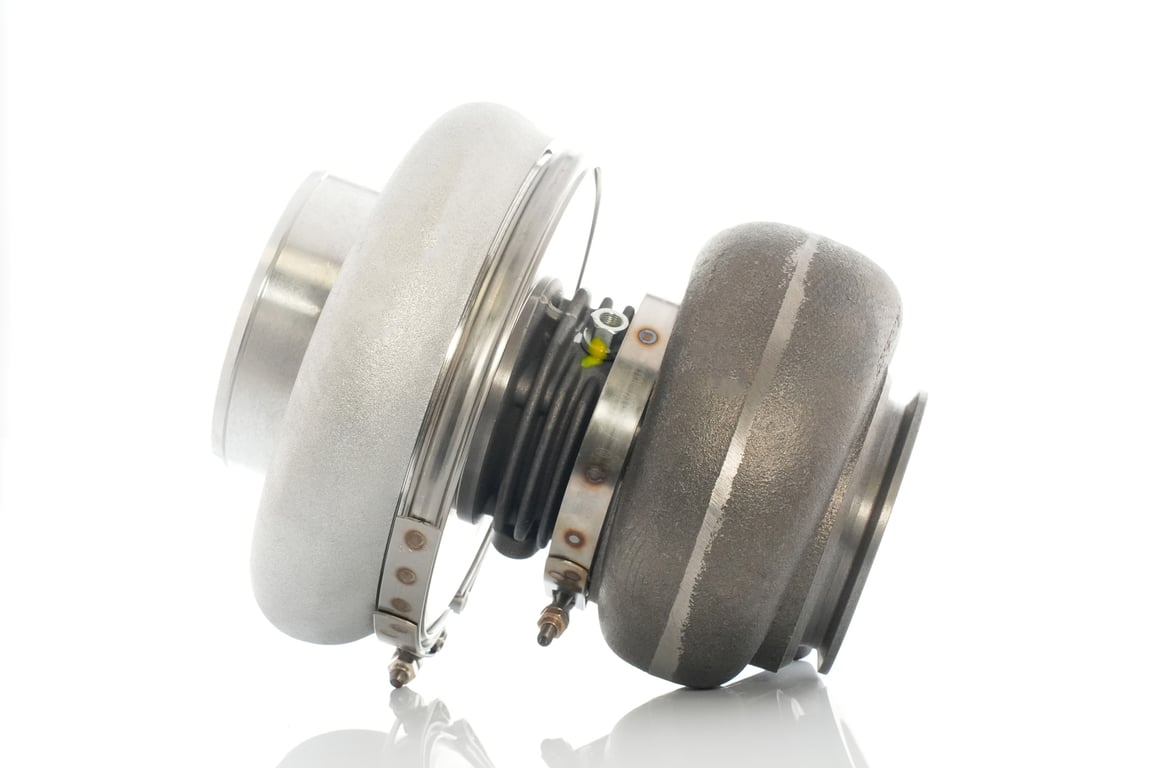

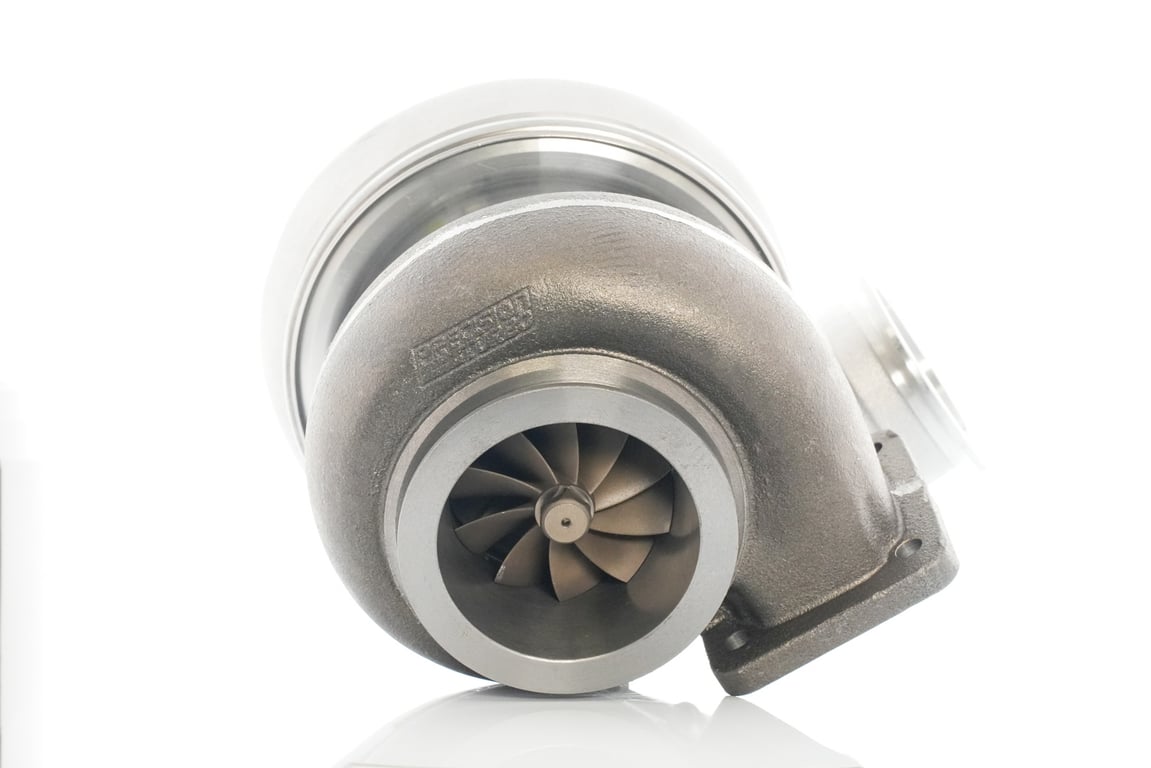

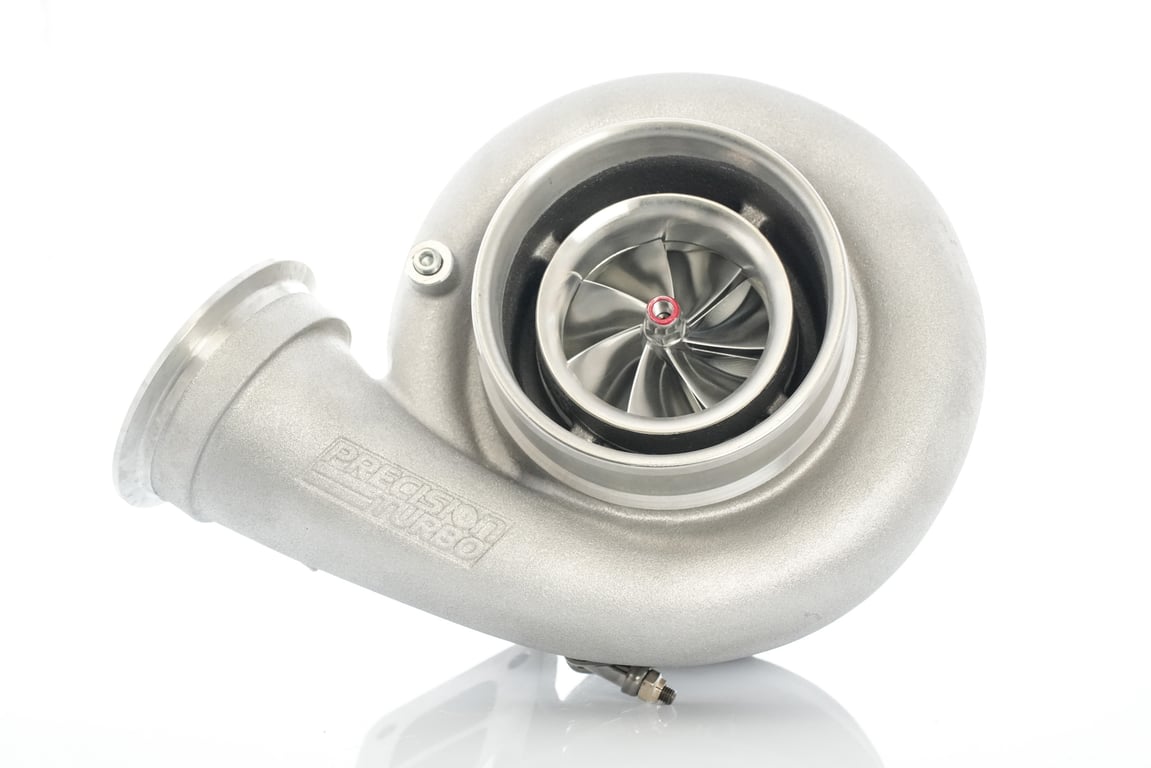

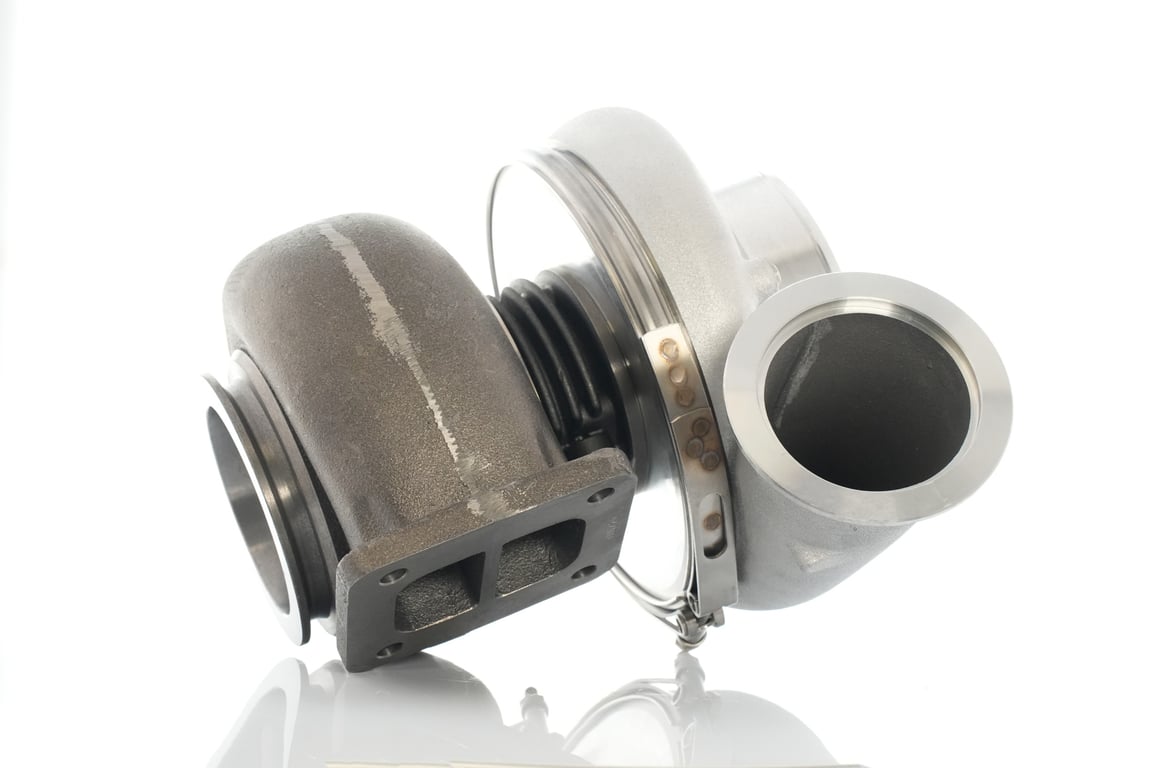

Next Gen Sportsman 7475

All new sportsman frame sized 7475 turbocharger features a NEXT GEN, 74mm CEA compressor wheel mated to our 75mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 7475 is a record setting turbocharger and is a great option for those looking to make upwards of 1,350hp.
Part number — 22009216829
in stock

Turbine housing style

A r

MSRP

$3,872.79

QTY

  • Specs
  • Details

Specs

hp rating: 1350 HP
generation: SPORTSMAN SS V-BAND
cover style: SPORTSMAN-COVER
compressor inducer: 74.0 MM

Details

NEXT GEN 74mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA) Sportsman compressor cover with a 5.0” inlet and 4.2” outlet 75mm CEA turbine wheel Air-cooled, dual ceramic ball bearing Turbine housing options: T4 divided inlet with .98 A/R, 1.12 A/R, or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28 Rated to support 1,350 flywheel horsepower.
