hp rating: 1200 HP

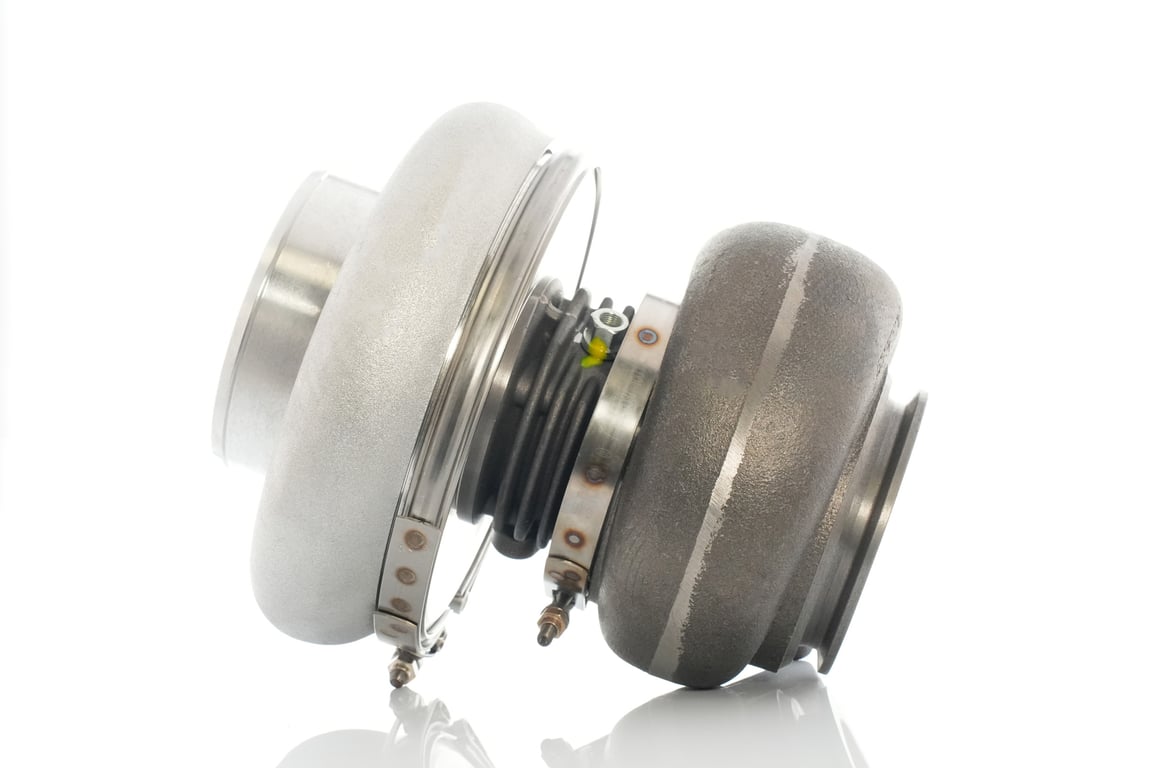

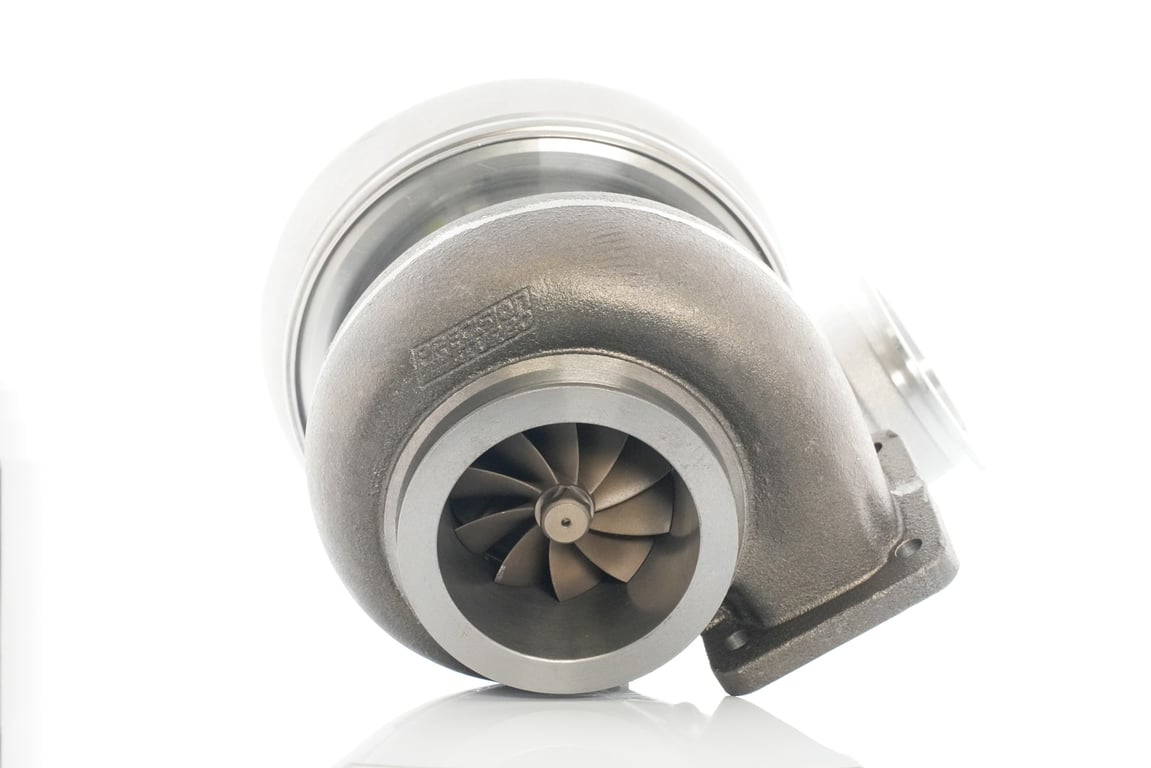

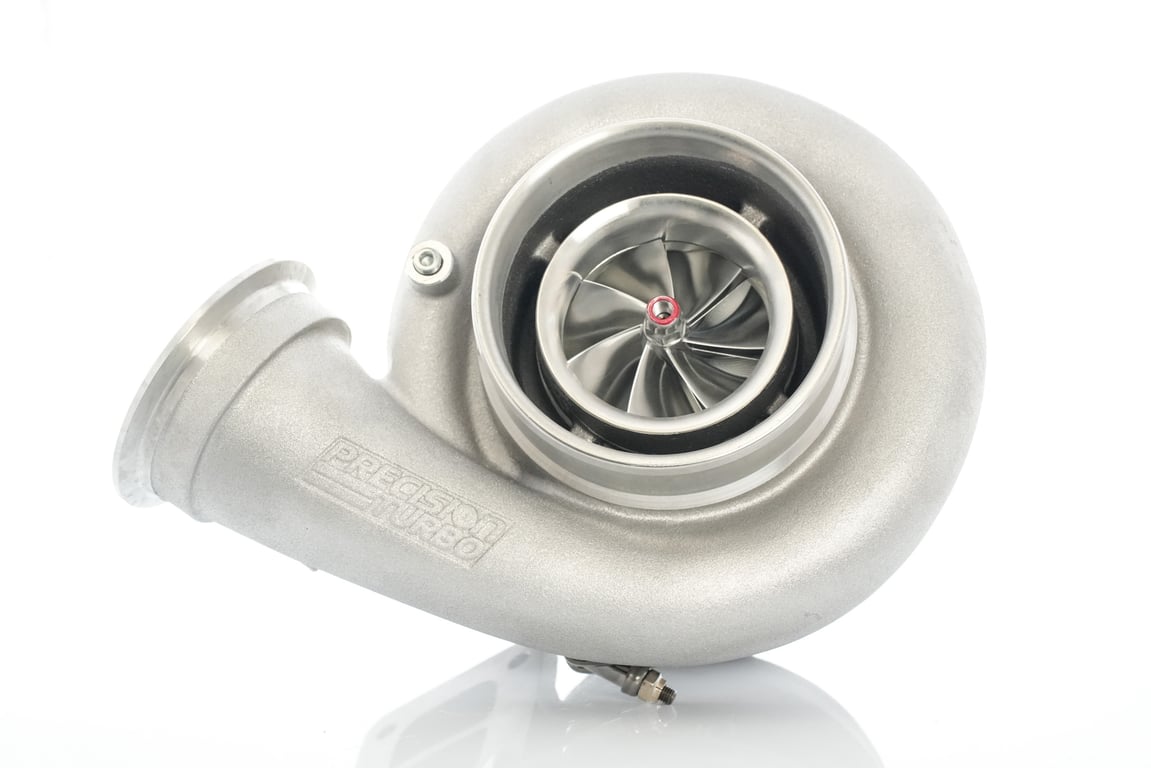

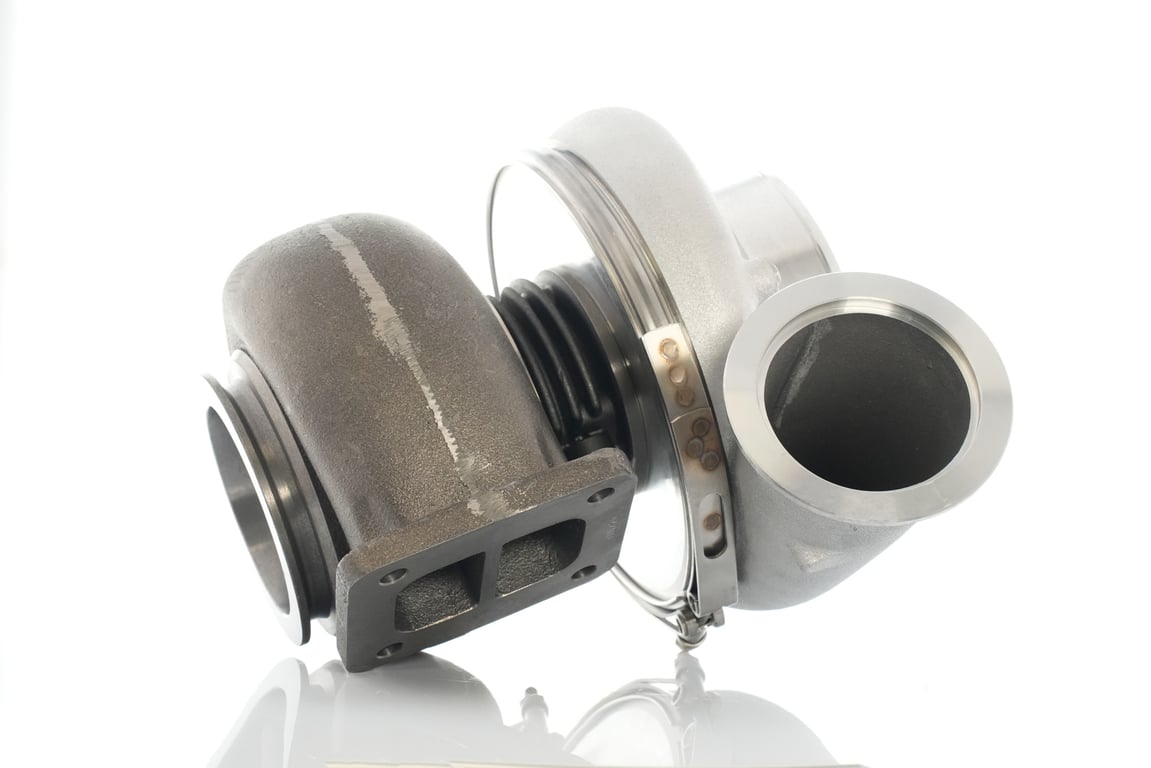

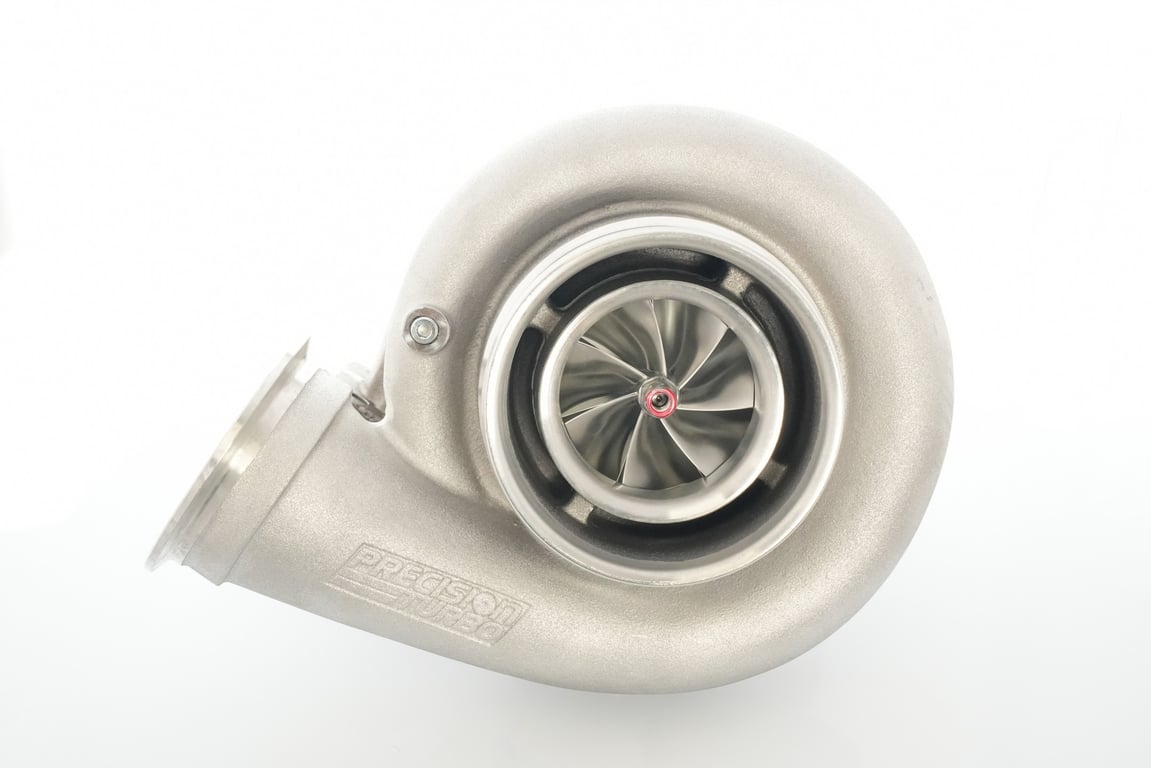

Next Gen Sportsman 6875

All new sportsman frame sized 6875 turbocharger features a NEXT GEN, 68mm CEA compressor wheel mated to our 75mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 6875 is a record setting turbocharger and is a great option for those looking to make upwards of 1,200hp.
Part number — 25709216319
in stock

Turbine housing style

SPORTSMAN T4 4-BOLT
  • SPORTSMAN T4 4-BOLT

A r

0.98 A/R
  • 0.98 A/R

MSRP

$3,454.61

QTY

  • Specs
  • Details

Specs

hp rating: 1200 HP
generation: SPORTSMAN T4 4-BOLT
cover style: SPORTSMAN-COVER
compressor inducer: 68.0 MM

Details

NEXT GEN 68mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA) Sportsman compressor cover with a 5.0” inlet and 4.2” outlet 75mm CEA turbine wheel Air-cooled, dual ceramic ball bearing Turbine housing options: T4 divided inlet with .98 A/R, 1.12 A/R, or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28 Rated to support 1,200 flywheel horsepower.

×
