Specs
hp rating: 1380 HP
generation: T4 DIVIDED 4-BOLT
cover style: H-COVER
compressor inducer: 72.0 MM
Details

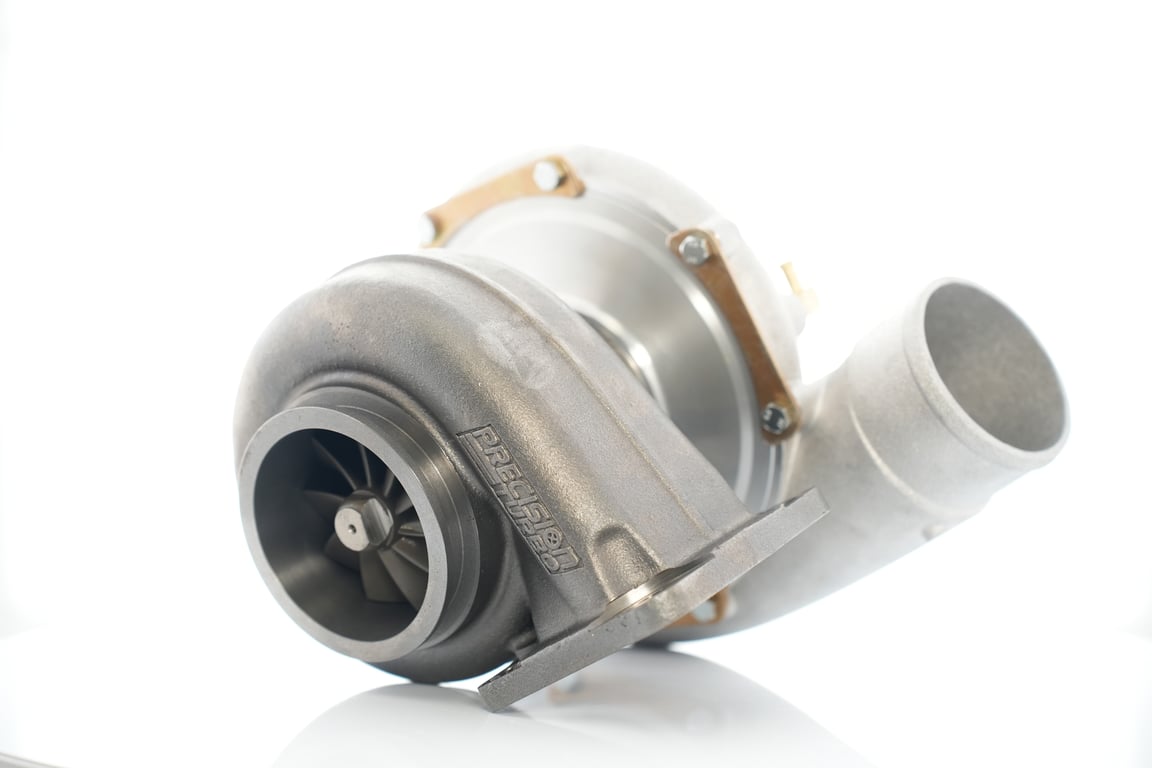

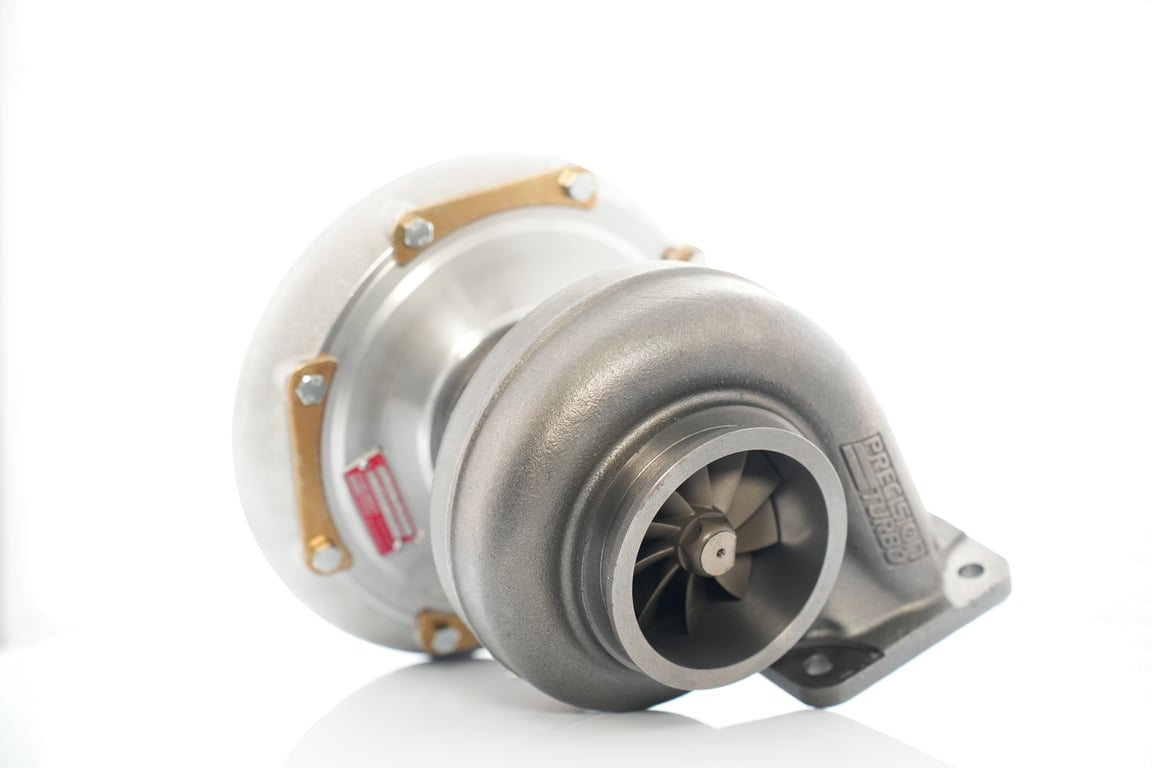

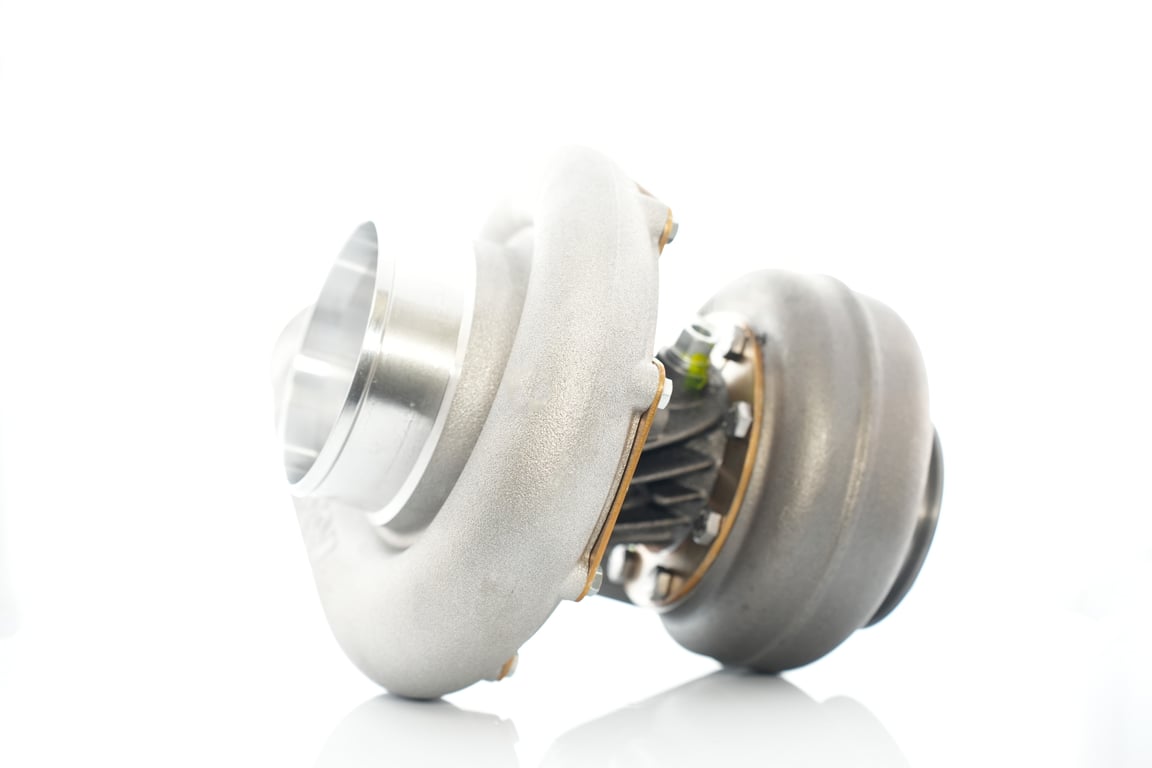

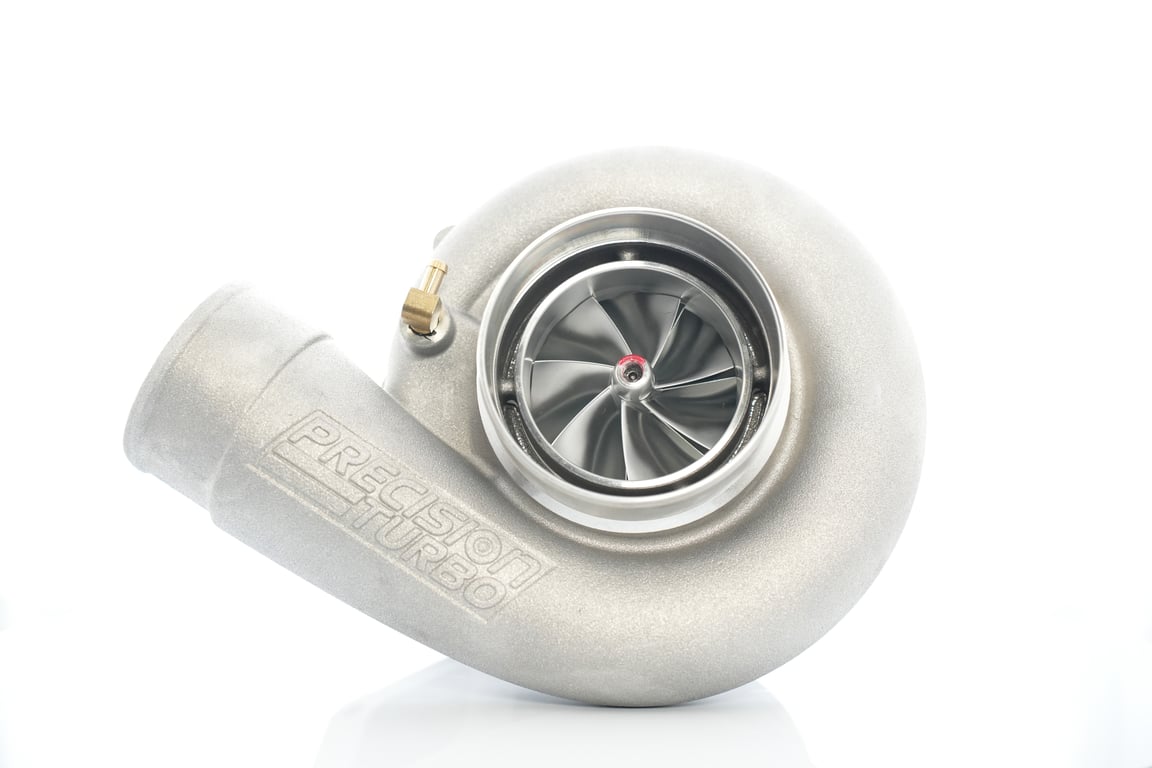

The all-new 7275 H Cover turbocharger features a NEXT GEN, 72mm CEA compressor wheel mated to our 75mm high flow turbine wheel. This unit is based on the H cover ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 72755 is a record setting turbocharger and is a great option for those looking to make upwards of 1,380hp.
NEXT GENERATION RACE TECHNOLOGY
Most powerful 72mm H cover turbocharger in the market.
Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow.
All new compressor cover design with flow enhancements and advanced machining techniques providing 15% more airflow and greater efficiency at higher pressure ratios.
Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity.
High Flow 11 blade turbine wheel design featuring high temperature resistant Alloy.
No price increase over the Gen 2 version.
Proven to provide a 15% improvement over the previous generation. Rated to support 1,380 flywheel horsepower.
Specifications:
Compressor Wheel Inducer: 72mm
Compressor Wheel Exducer: 99/101mm
Turbine Wheel Inducer: 82mm
Turbine Wheel Exducer: 75mm
Turbo Max Speed 136,152
