hp rating: 1200 HP

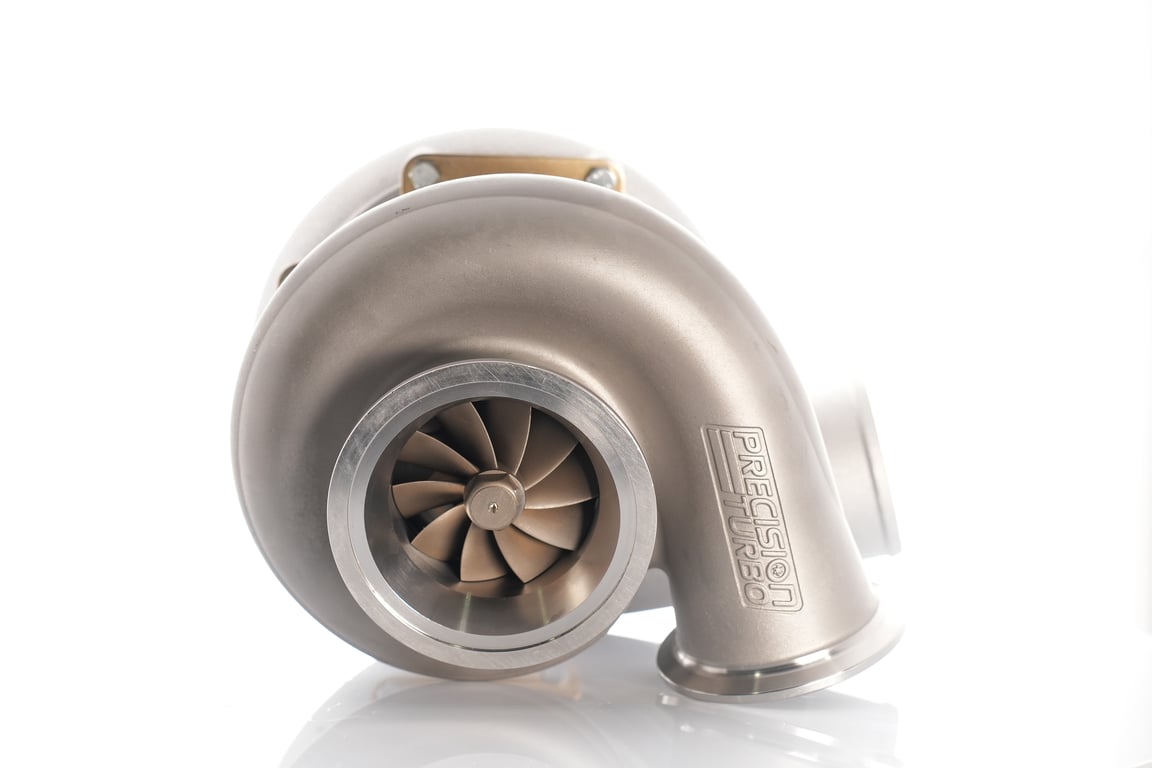

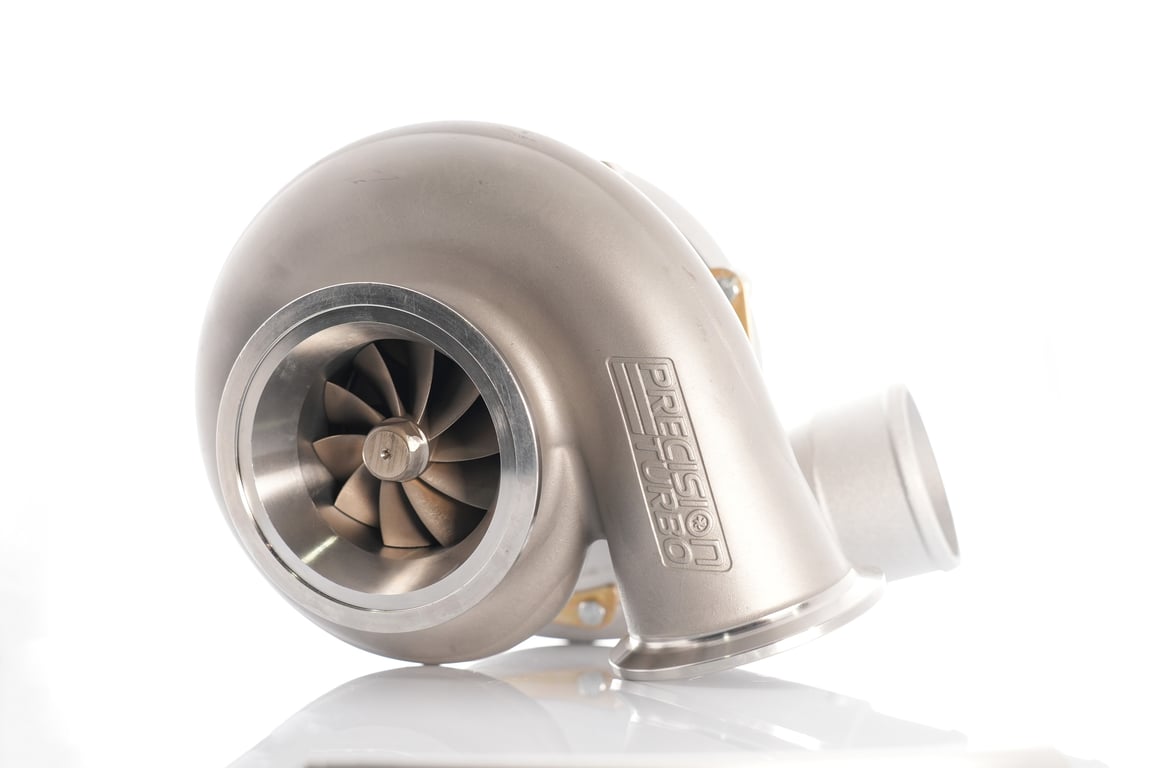

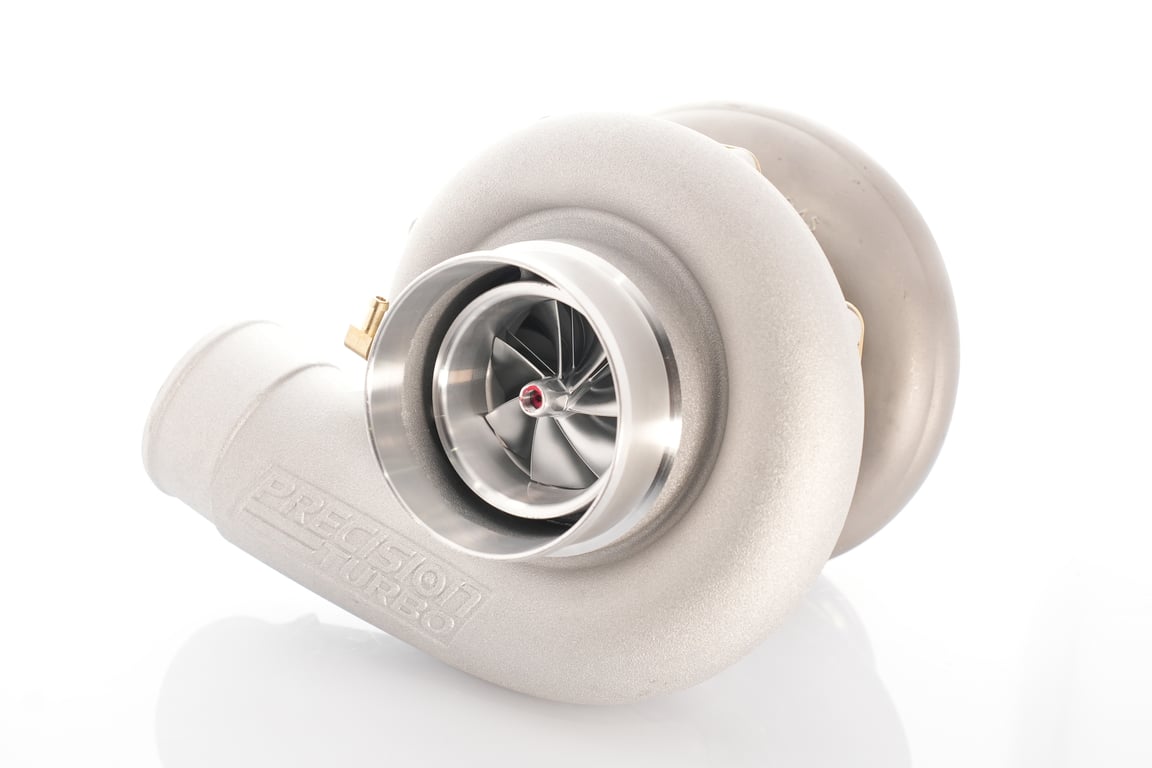

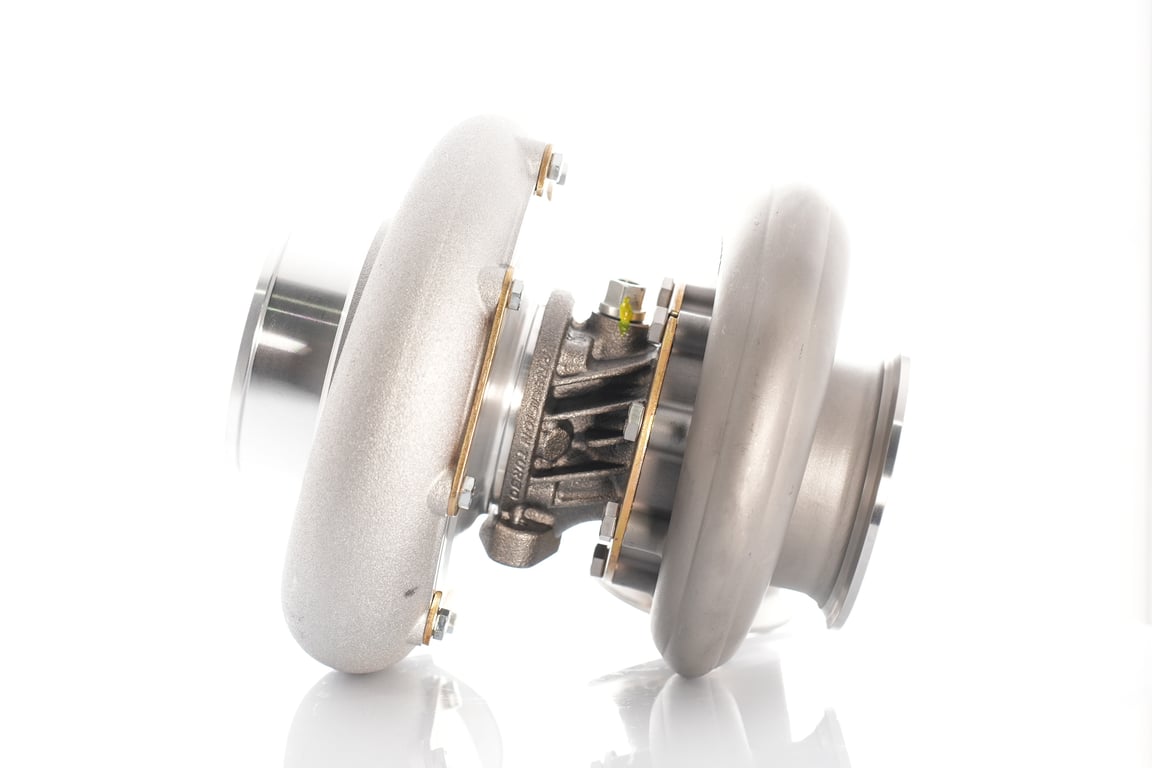

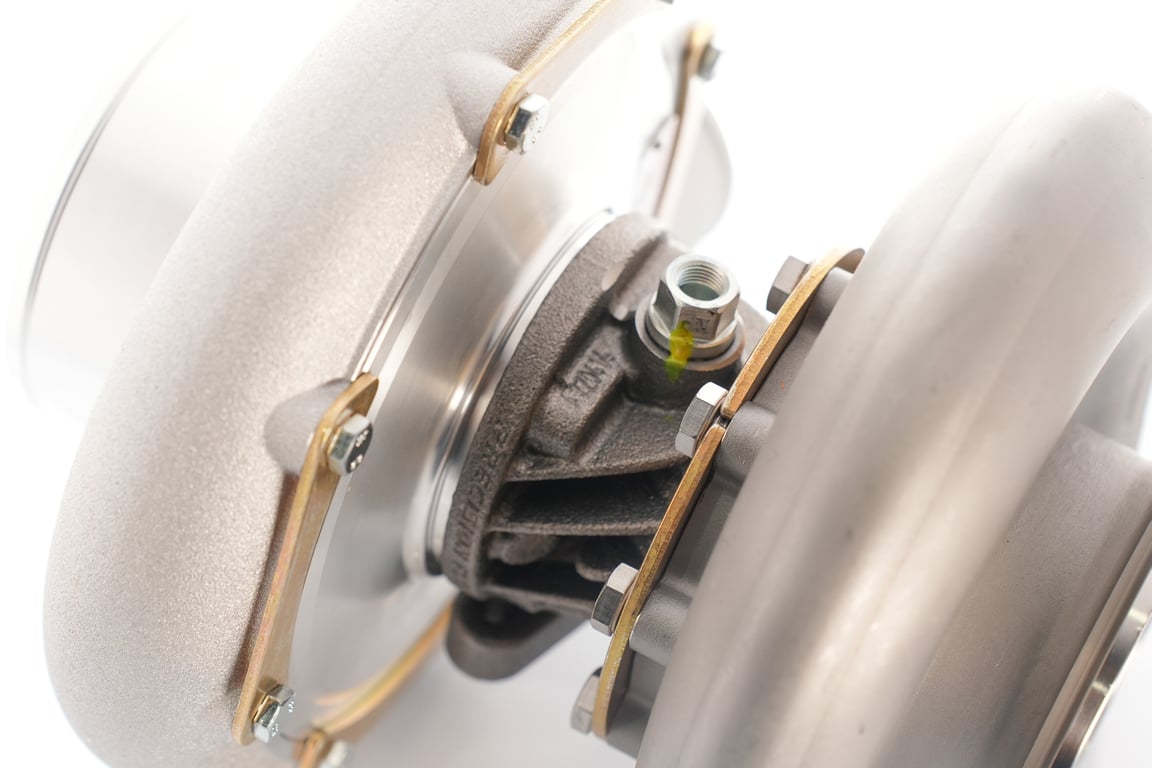

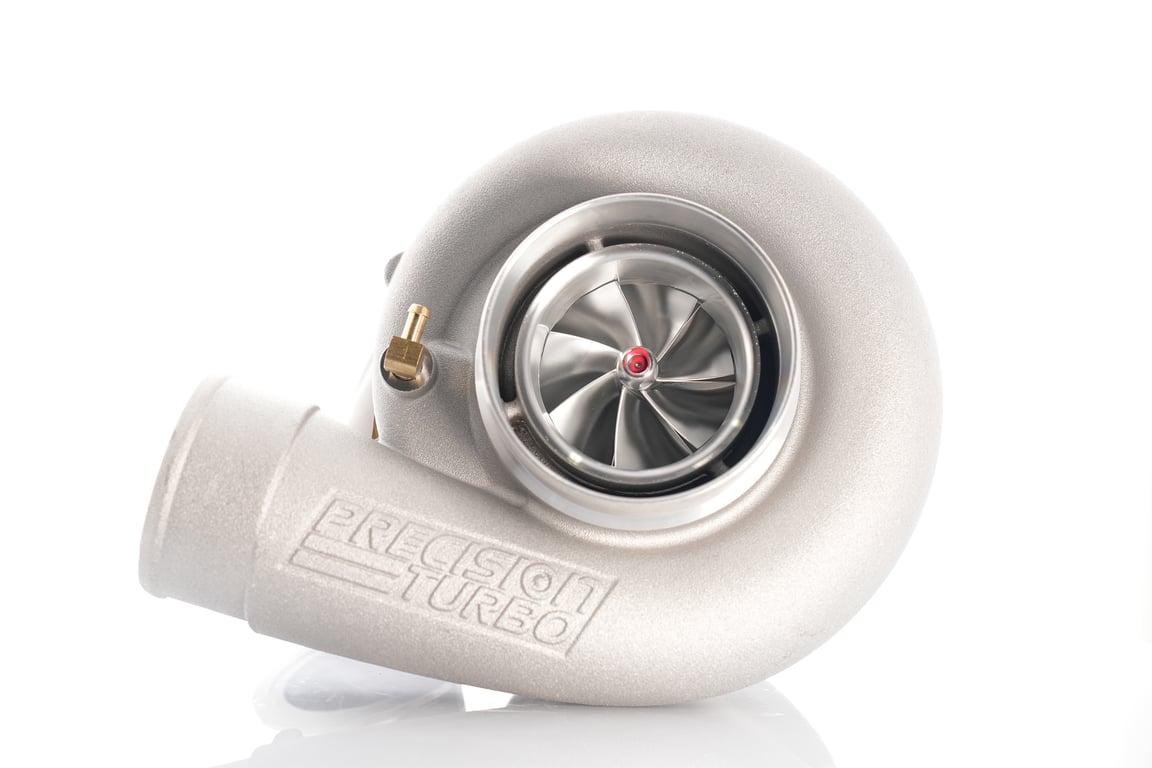

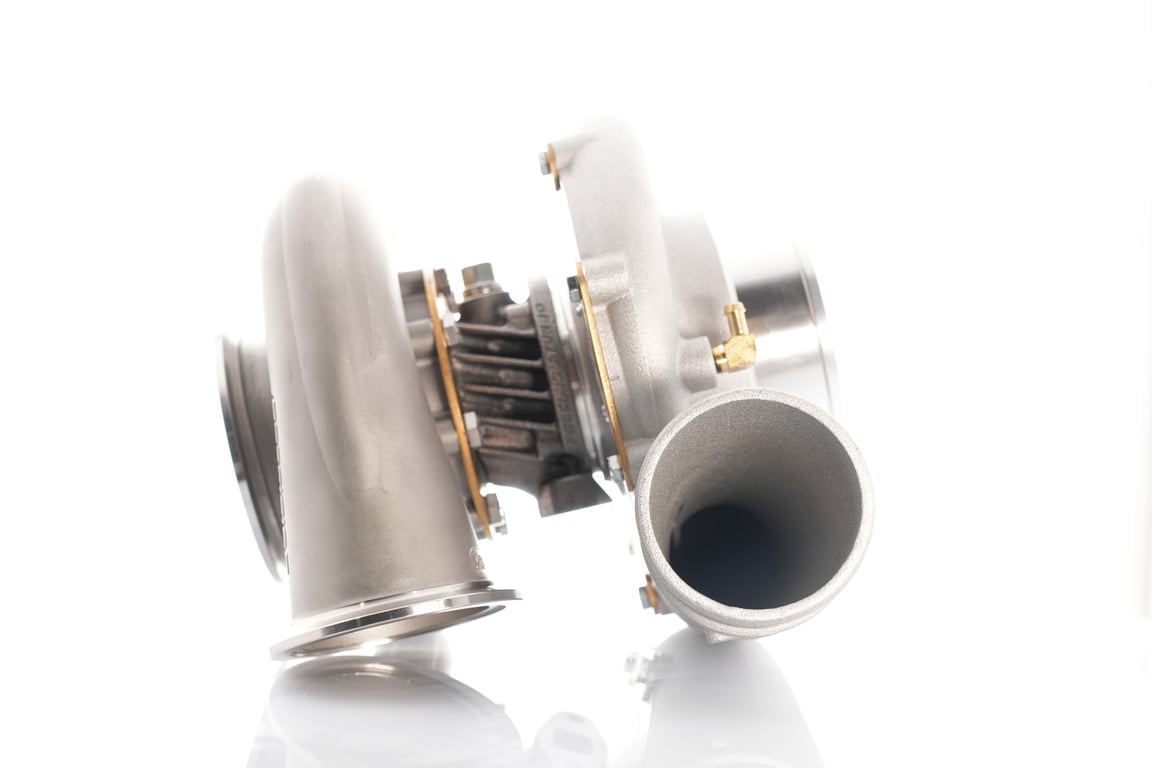

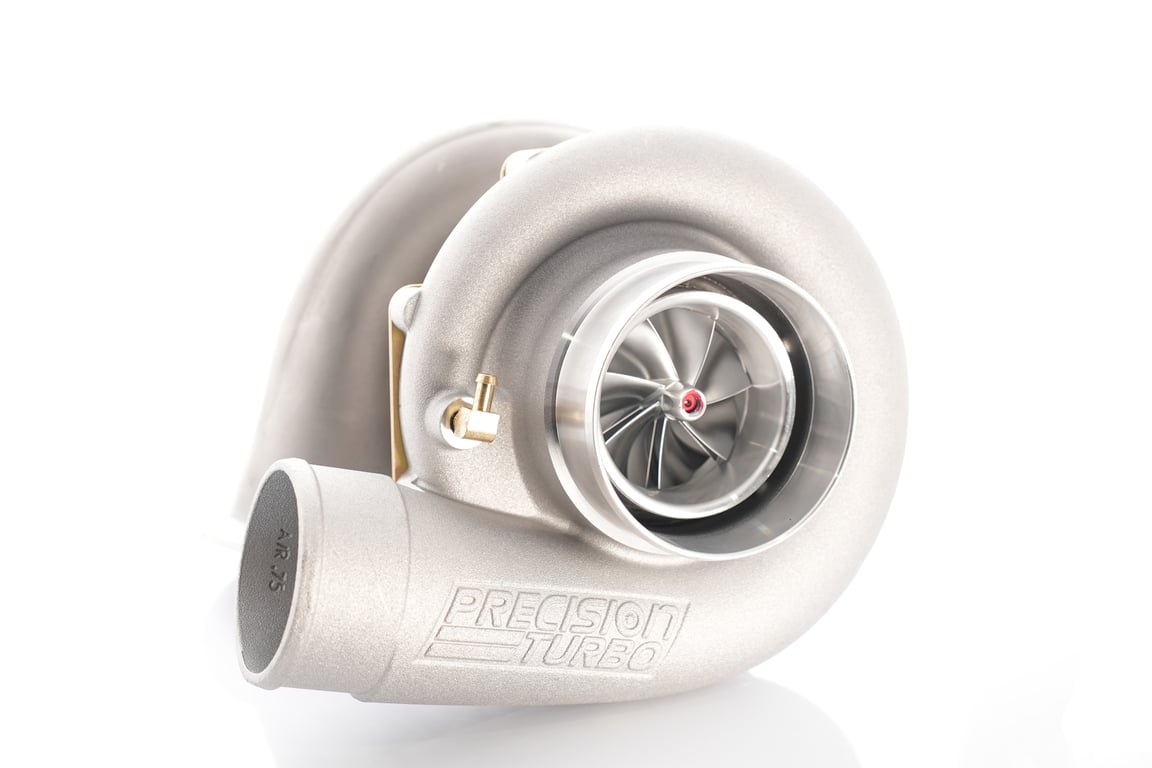

Next Gen 6870

Introducing the all-new 1200 horsepower rated 6870 Next Gen S & H Cover turbocharger from the global leader in turbocharging technology. The new 6870 Next Gen brings a new CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow and an all-new compressor cover design with flow enhancements and advanced machining techniques, providing 10% more airflow and greater efficiency at higher pressure ratios. This unit is available now in T3, T4 open, T4 divided or V-Band In/out housing options.
Part number — 28007215299
in stock

Compressor cover style

H-COVER
  • H-COVER

Turbine housing style

T4 SS V-BAND
  • T4 SS V-BAND

A r

0.96 A/R
  • 0.96 A/R

MSRP

$3,068.11

QTY

  • Specs
  • Details

Specs

hp rating: 1200 HP
generation: T4 SS V-BAND
cover style: H-COVER
compressor inducer: 67.82 MM

Details

Key Features: NEXT GENERATION RACE TECHNOLOGY • HP Rating: 1200 HP • Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. • CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. • Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. • Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow. • High flow / highly efficient 70mm turbine wheel • No price increase over Gen 2. Specifications: • Compressor Wheel Inducer: 68mm • Compressor Wheel Exducer: 92.5mm 94.7 ET • Turbine Wheel Inducer: 78.7mm • Turbine Wheel Exducer: 70.2mm

×
