hp rating: 1000 HP

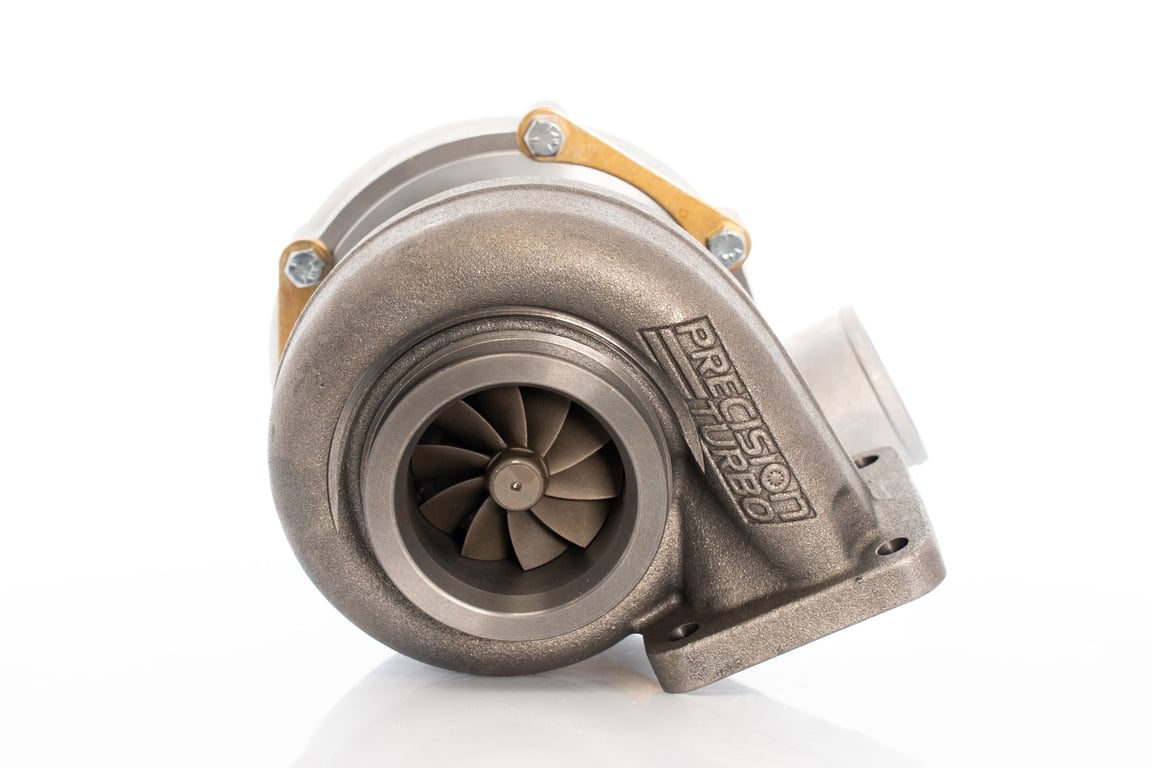

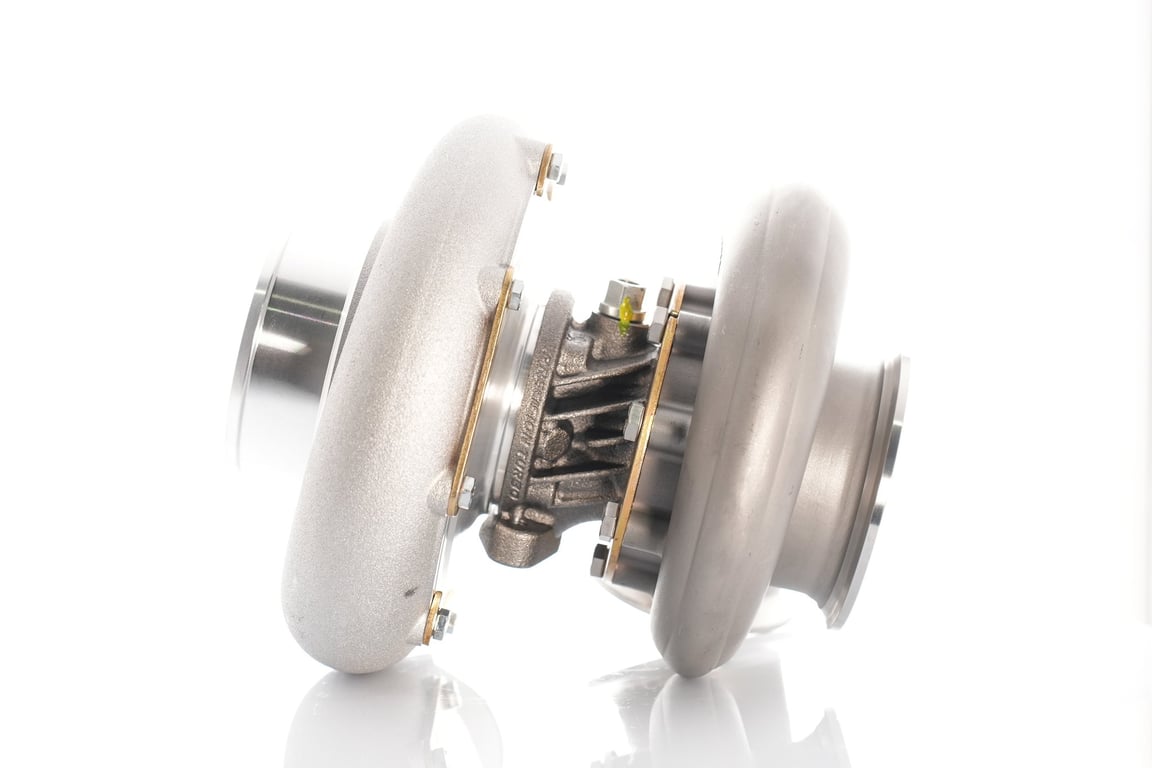

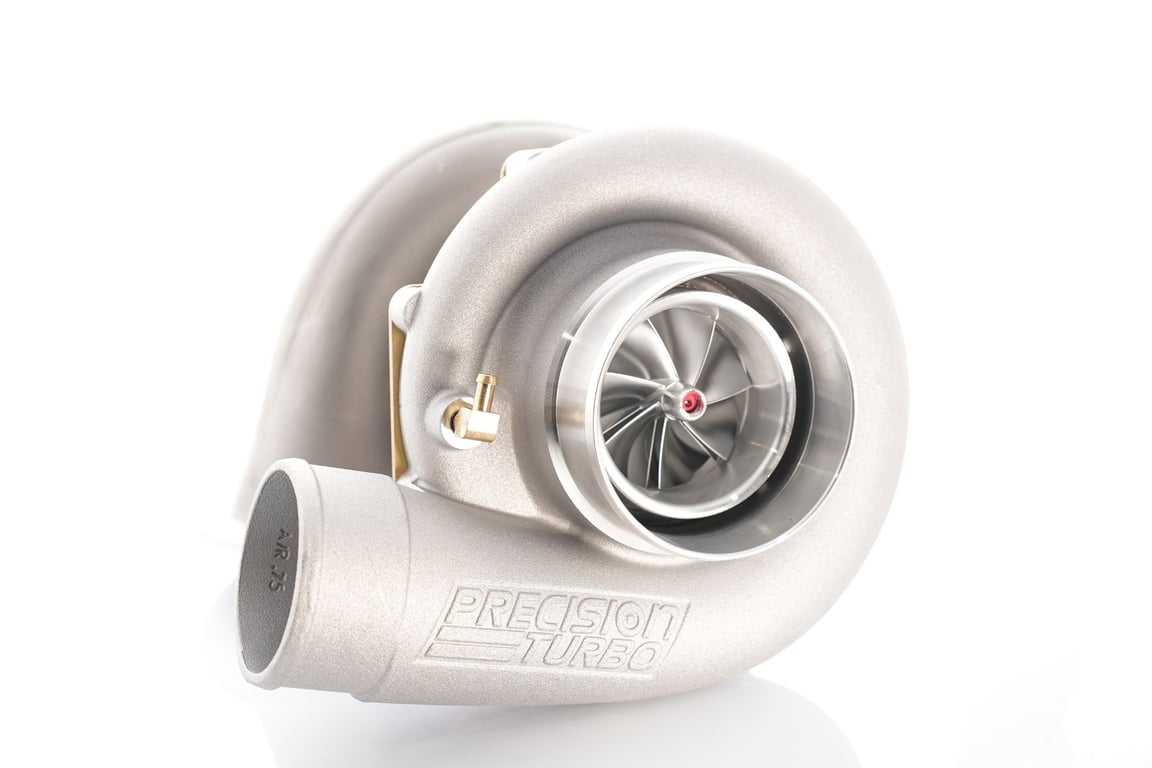

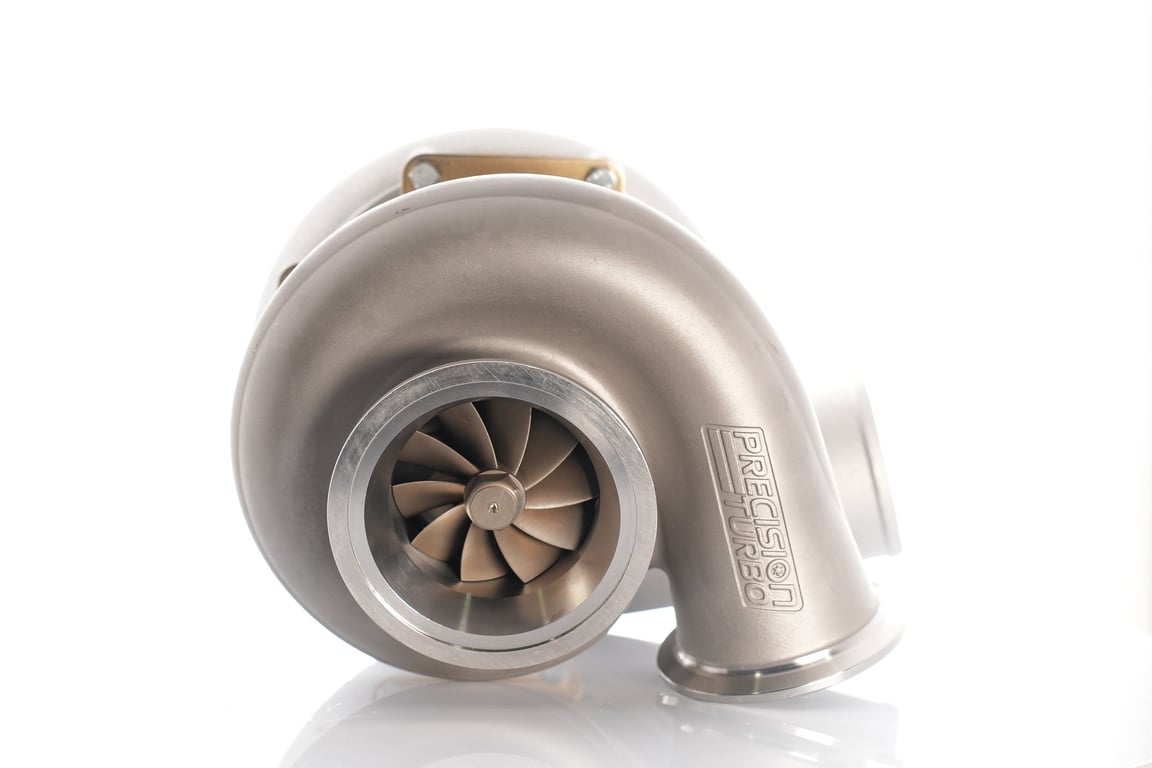

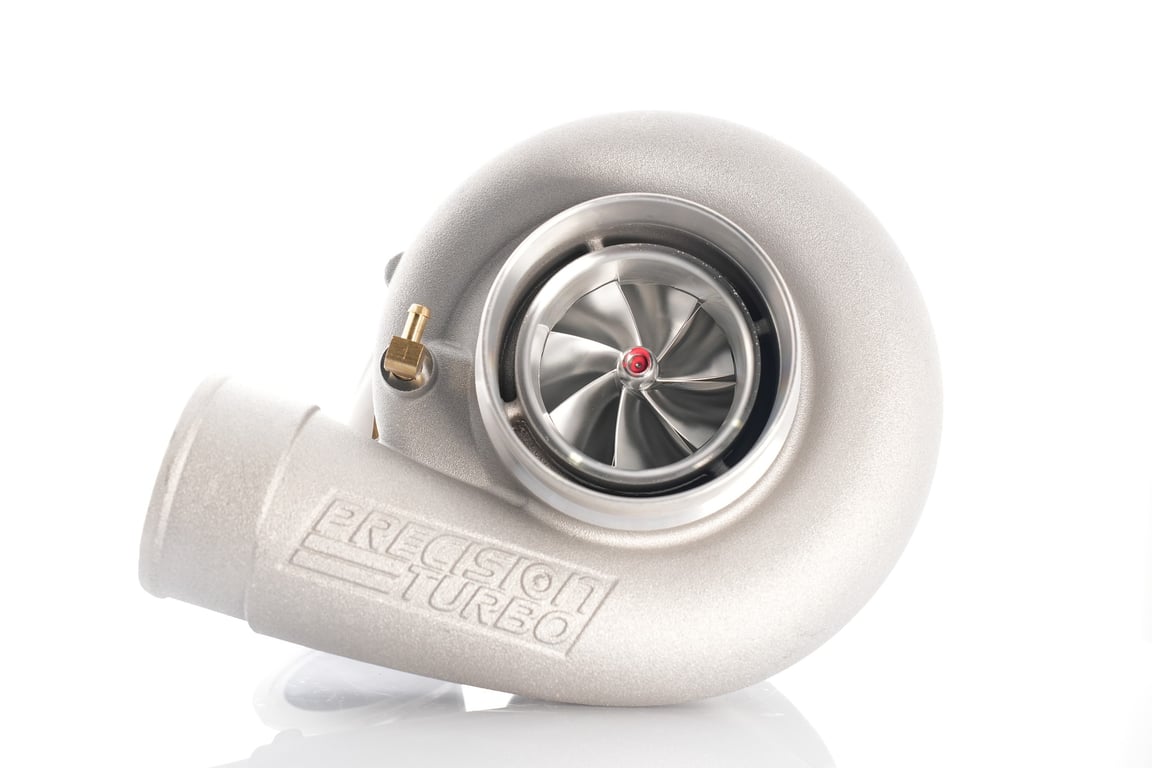

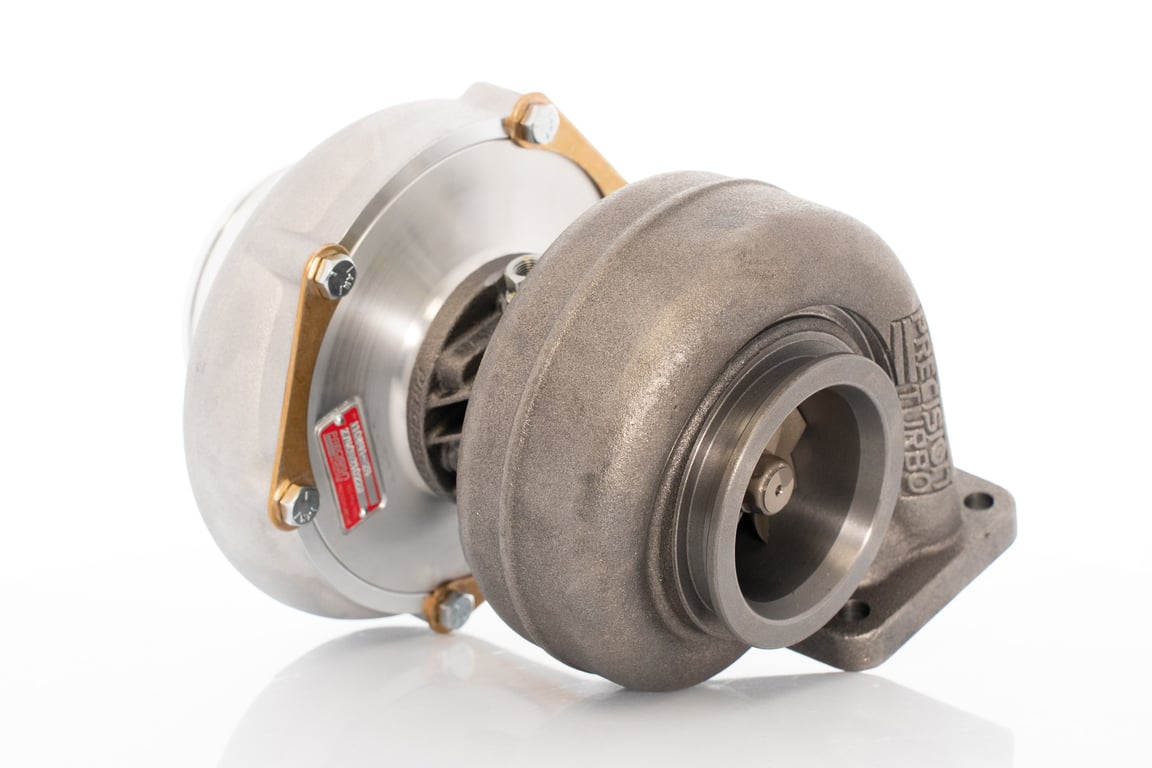

NEXT GEN PT6466 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .70 A/R

Introducing the all-new Precision Turbo Next Gen 6466 turbocharger. The Next Gen 6466 is now rated at 1000HP and will be available in the all-new SCP (S Cast Ported) compressor cover, offering a 4” inlet and 2.5” outlet and for the first time in the HP compressor cover, which features a 4” inlet and 3” outlet . This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10% increase in flow compared to Gen 2 technology.
Part number — 27307210889
in stock

Compressor cover style

H-COVER
  • H-COVER

Turbine housing style

T4
  • T4

A r

0.70 A/R
  • 0.70 A/R

Turbine housing outlet

V-BAND
  • V-BAND

MSRP

$2,530.24

QTY

  • Specs
  • Details

Specs

hp rating: 1000 HP
generation: T4
cover style: H-COVER
compressor inducer: 64.0 MM

Details

Key Features: NEXT GENERATION RACE TECHNOLOGY • HP Rating: 1000 HP • Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. • CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. • Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. • Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow. • High flow / highly efficient 66mm turbine wheel Specifications: Compressor Wheel Inducer: 64mm Compressor Wheel Exducer: 86mm/ 88.1mm ET Turbine Wheel Inducer: 74mm Turbine Wheel Exducer: 66mm

×
