Specs
hp rating: 750 HP
generation: T3 SS V-BAND
cover style: S-COVER
compressor inducer: 60.0 MM
Details

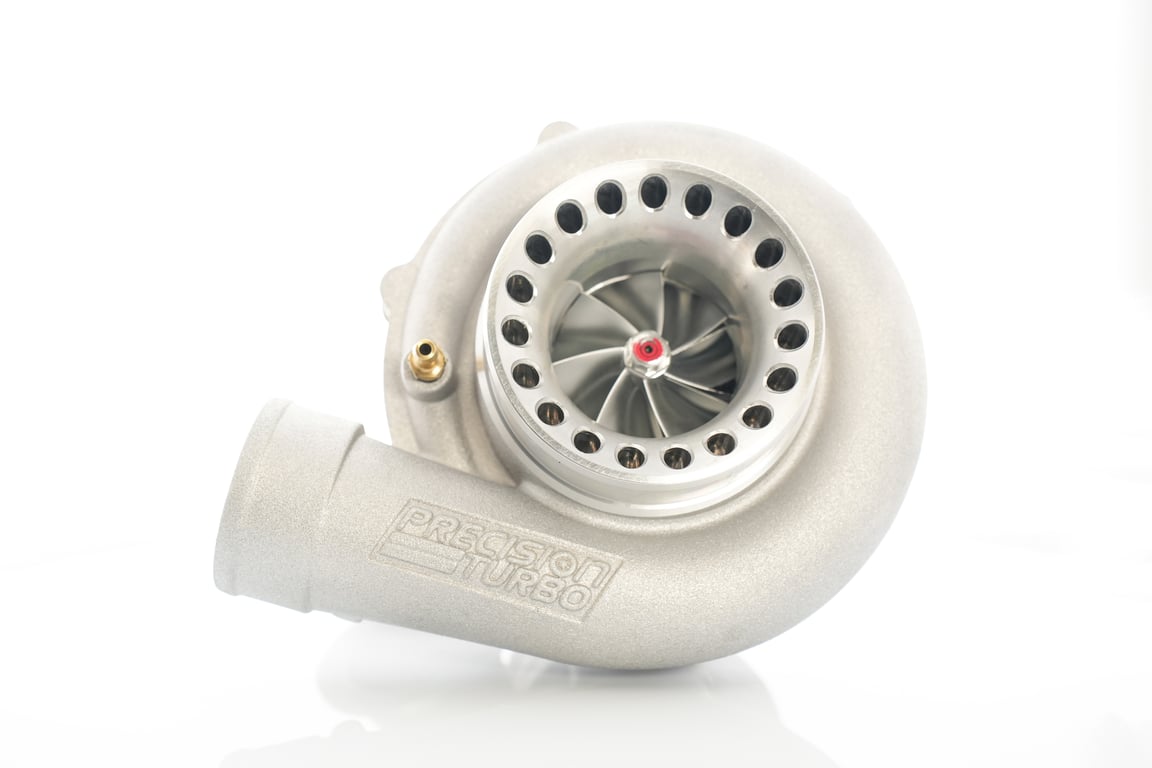

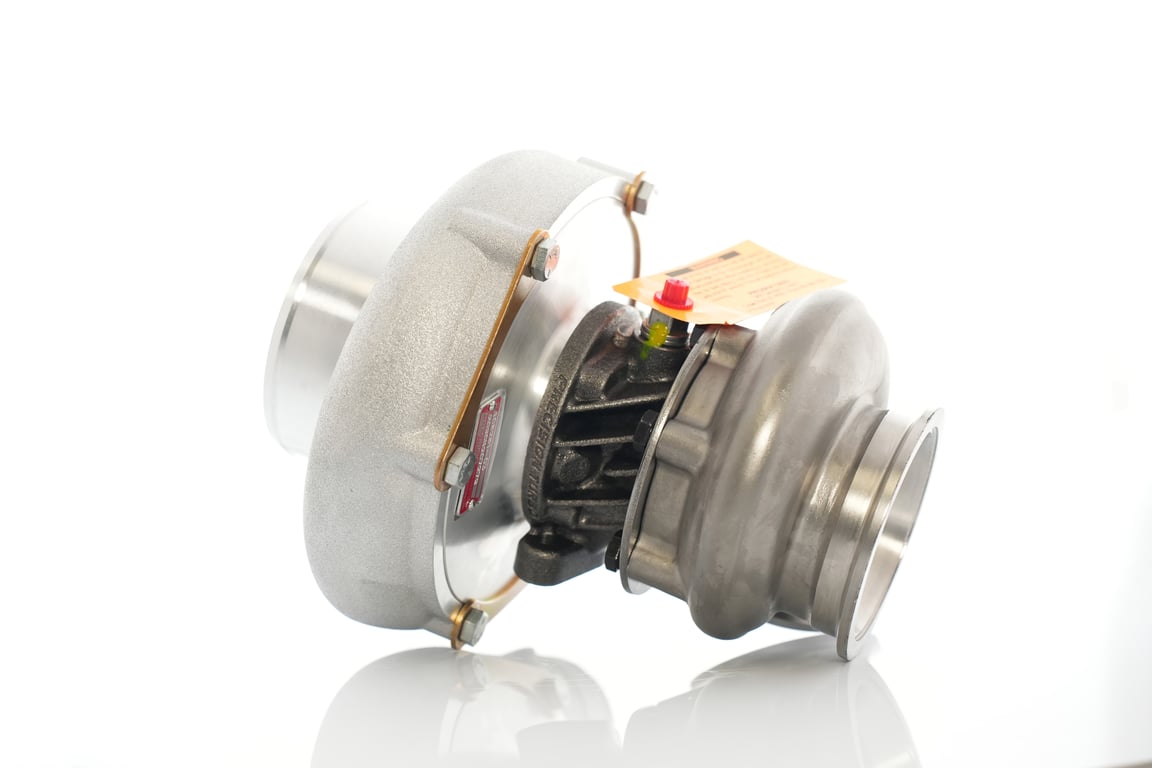

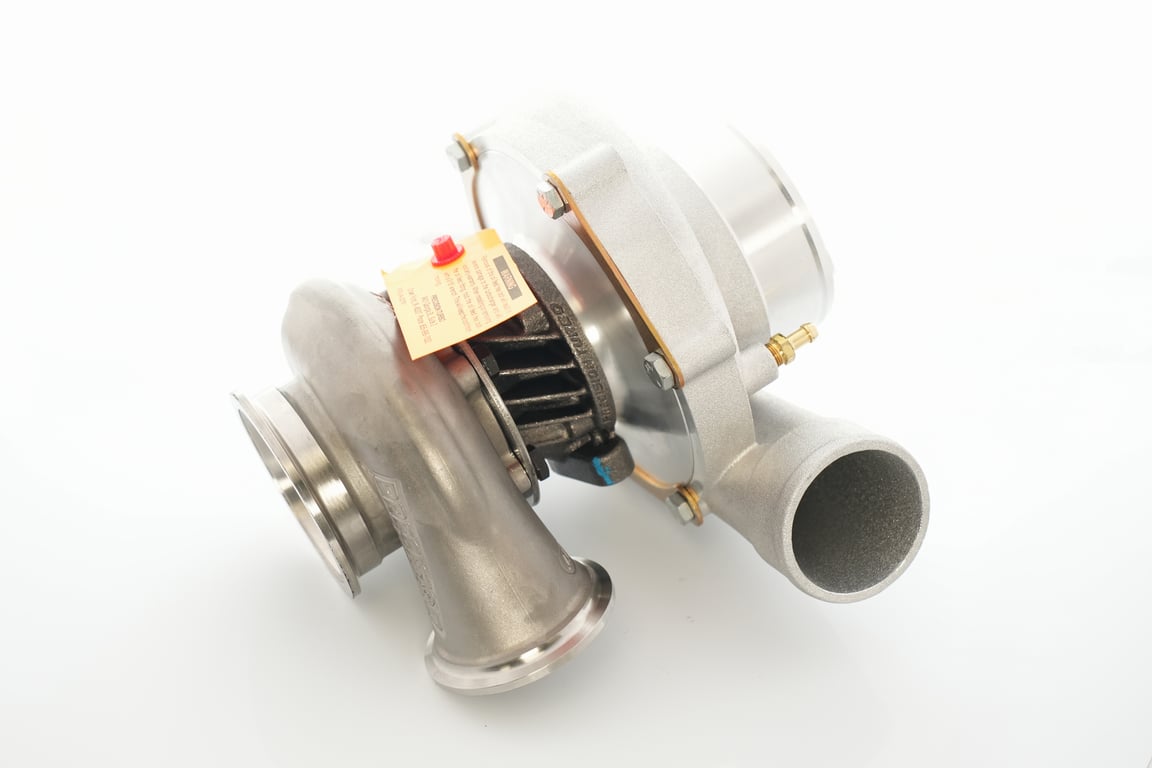

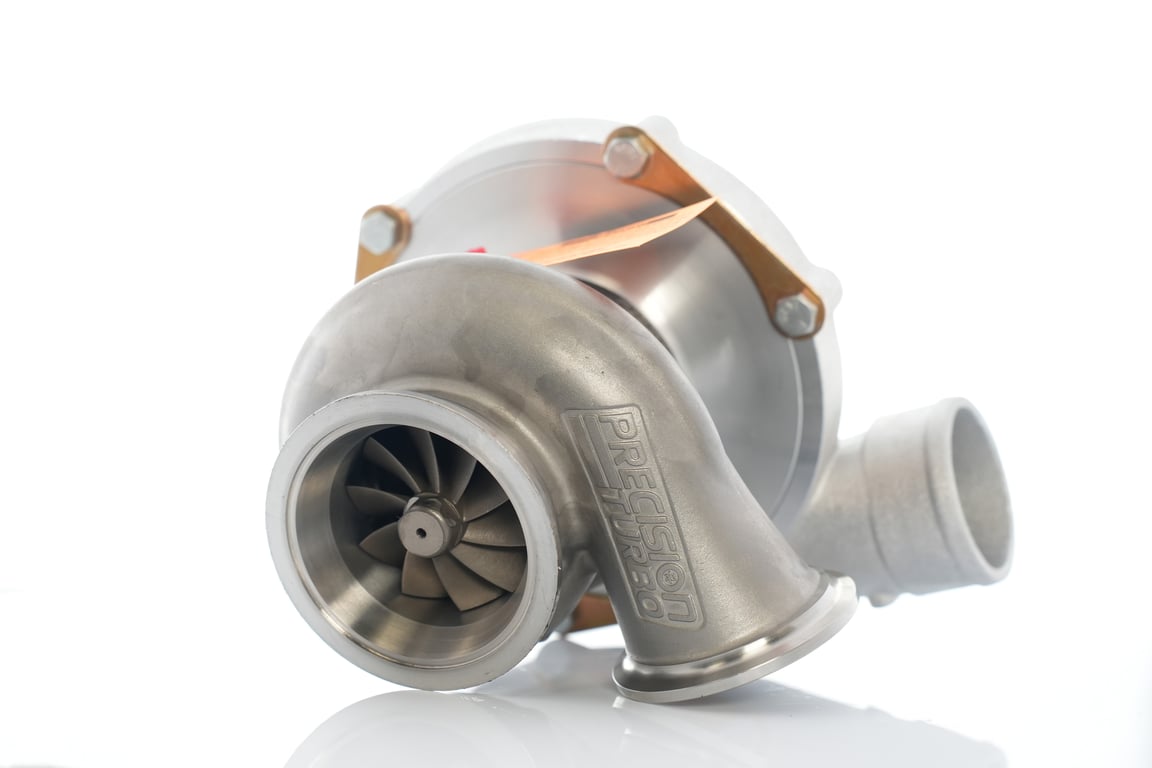

PTE's PT6062 Turbocharger features the following:
Exclusive GEN2 CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Higher efficiency and faster transient response for maximum power and performance
60mm inducer compressor wheel
Compressor cover options:
"Ported S" compressor cover 4.0" inlet/2.5" outlet
Exclusive CEA® (Competition Engineered Aerodynamics) 62mm turbine wheel
Turbine housing options:
T3 .63 or .82 A/R with 4 bolt (2.5") discharge
T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
T4 Divided .84 A/R with 3 5/8" OD (outer diameter) V-Band discharge
T4 Tangential .58 or .68 A/R with 3 5/8" OD (outer diameter) V-Band discharge
V-Band inlet/outlet .64 or .82 A/R
Mitsubishi .63 A/R
Buick .63 A/R
K26 .82 A/R
* NOTE: Additional cost may apply for certain housings.
� Comes standard with an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
