hp rating: 735 HP

PT6266

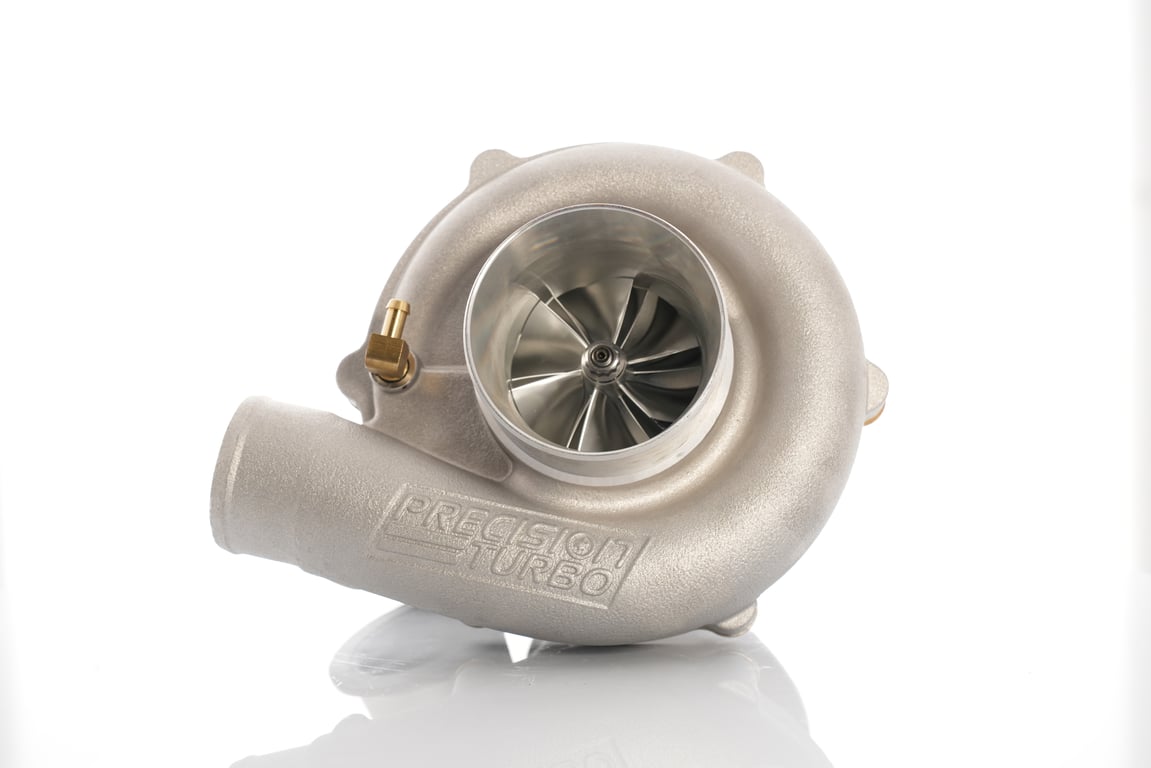

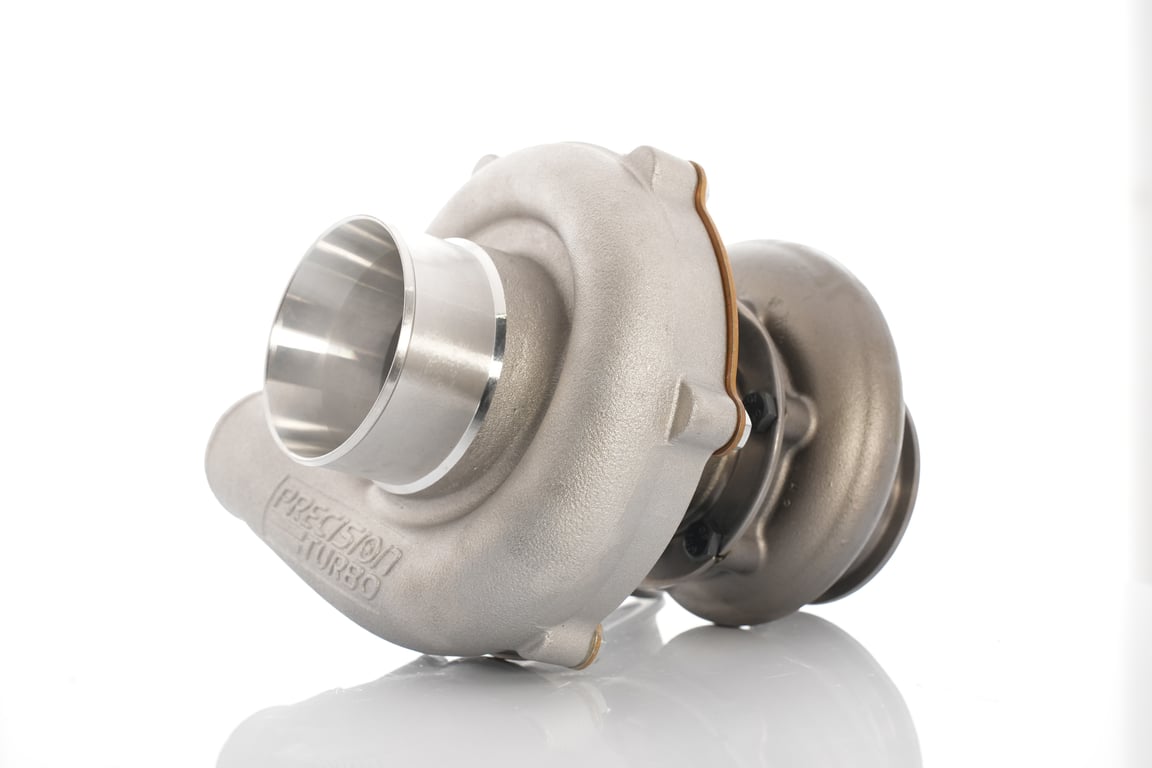

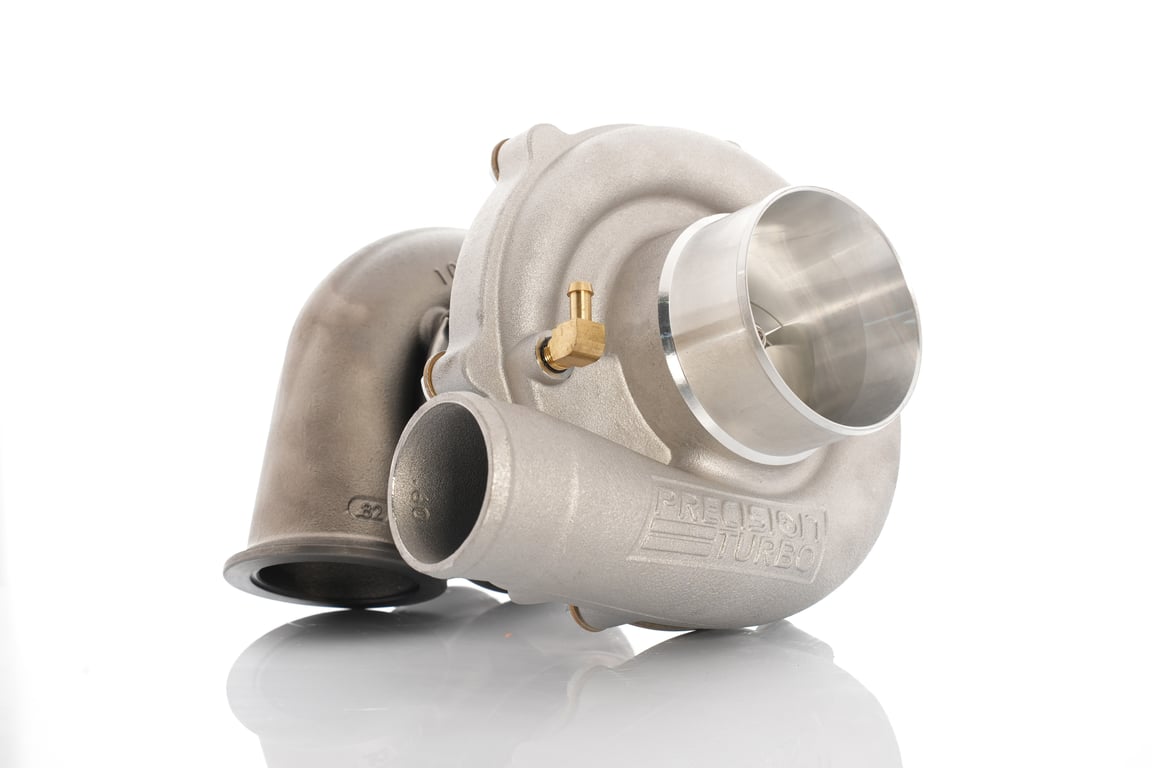

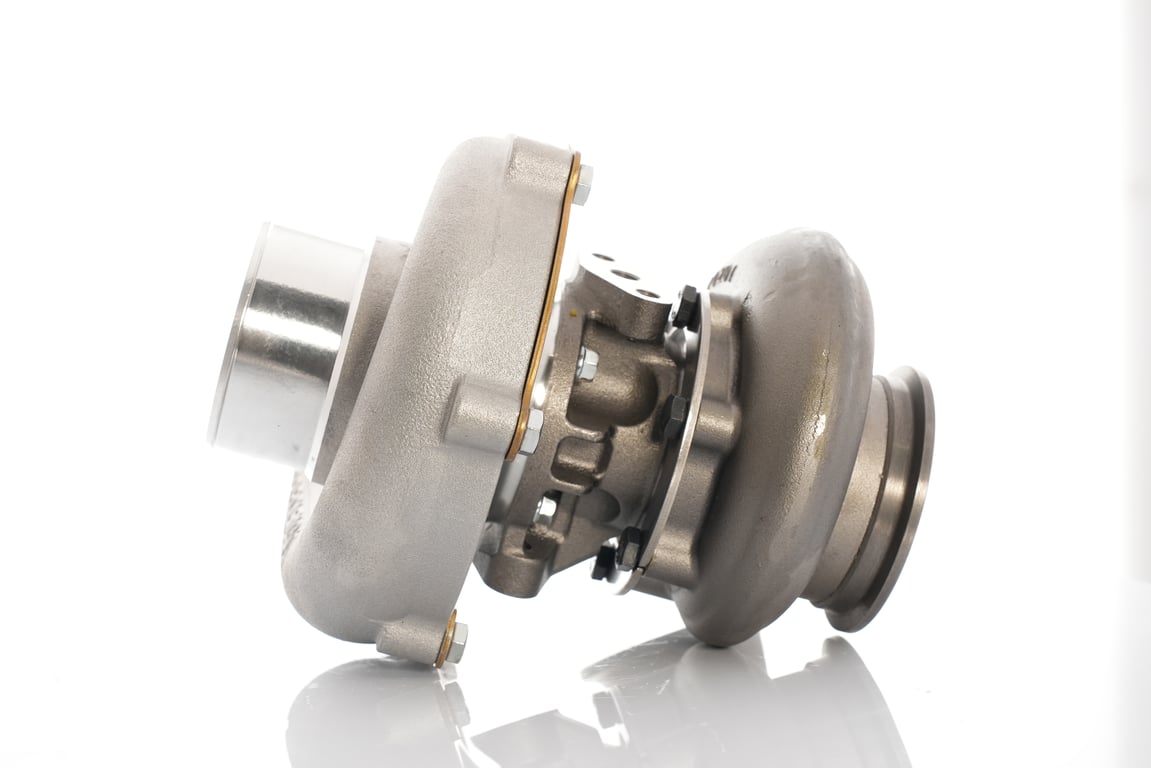

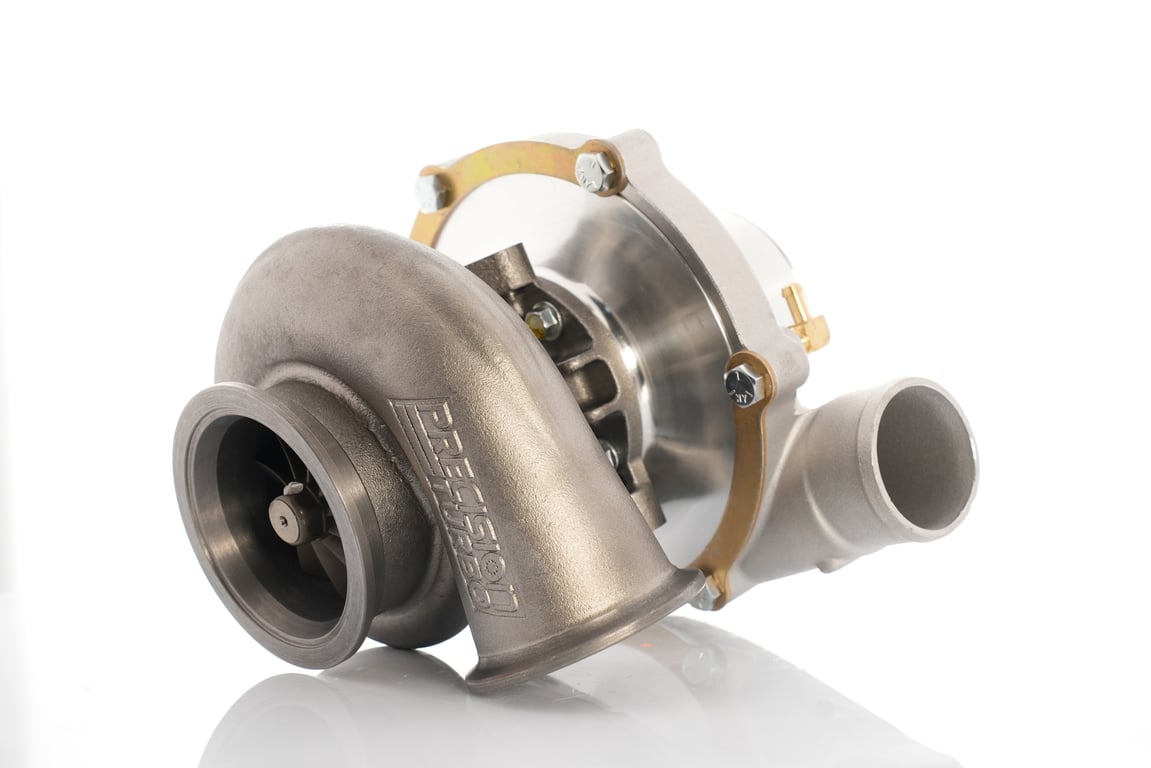

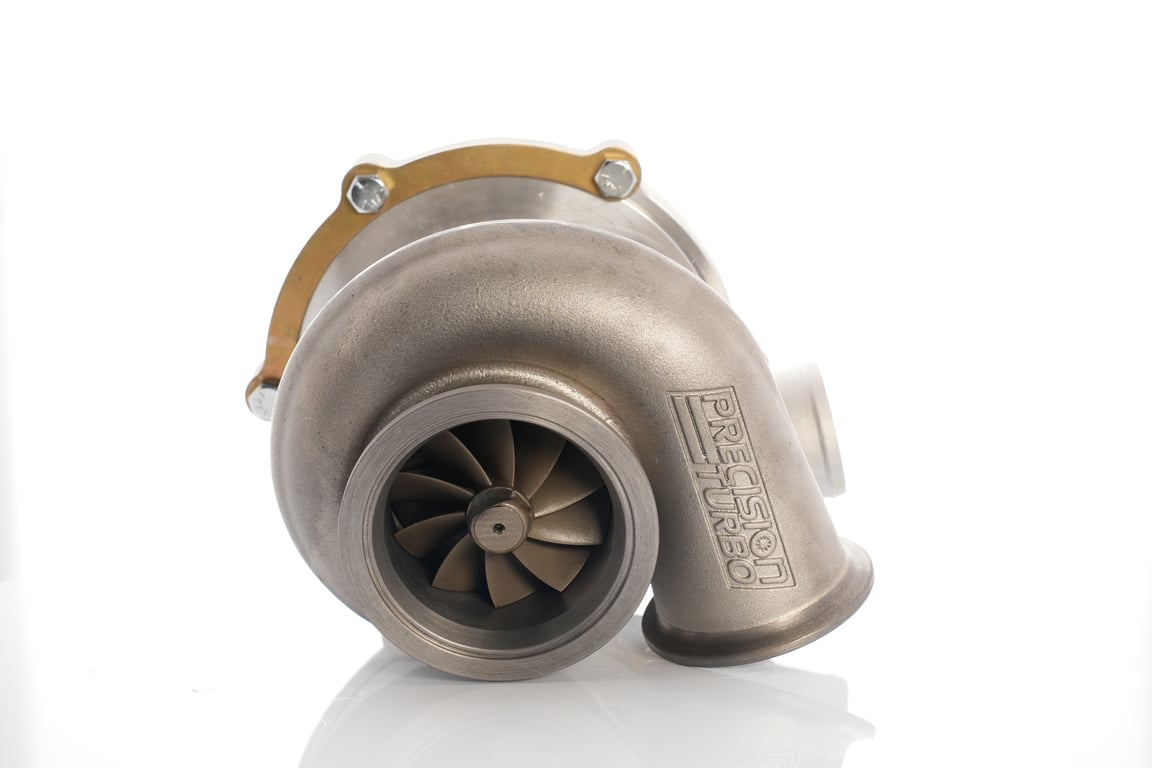

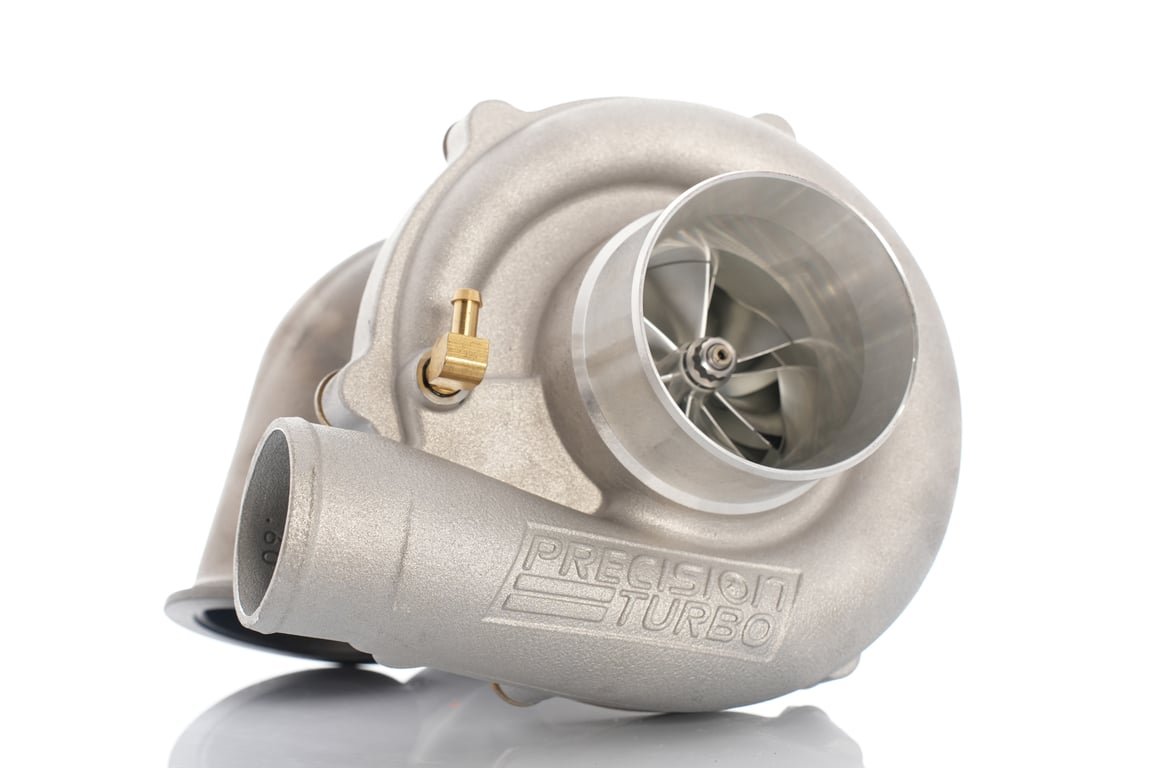

Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the 735hp PT6266 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering a 30-45 horsepower increase over similarly sized turbine wheel equipped turbos, the PT6266 CEA® is the perfect choice for those wanting to make more power without changing their current system.
Part number — 11102010209
in stock

Compressor cover style

Turbine housing style

A r

Turbine housing outlet

MSRP

$1,193.50

QTY

  • Specs
  • Details

Specs

hp rating: 735 HP
generation: T4 OPEN 4-BOLT
cover style: E-COVER
compressor inducer: 62.0 MM

Details

PTE's PT6266 Turbocharger features the following: HP Rating: 735 Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging Higher efficiency and faster transient response for maximum power and performance 62mm inducer compressor wheel Compressor cover options: - "E" compressor cover 3.0" inlet/2.0" outlet - "Ported S" compressor cover 4.0" inlet/2.5" outlet Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel Turbine housing options: cast 310 stainless steel THV5S / 1.05 A/R - T3 .63 or .82 A/R with 4 bolt (2.5") discharge - T3 .63 A/R with 5 bolt discharge (with or without wastegate hole) - T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge - V-Band inlet .82 A/R with V-Band discharge - T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" OD (outer diameter) V-Band discharge - T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" OD (outer diameter) V-Band discharge - Buick .63 or .85 A/R - K26 .82 A/R Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA) Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action, they're the ones making it happen. Innovation is a collaborative process, and we focus our efforts on you. Get involved and be a part of the action today with PTE.
