Specs
hp rating: 705 HP
generation: T4 OPEN 4-BOLT
cover style: E-COVER
compressor inducer: 62.0 MM
Details

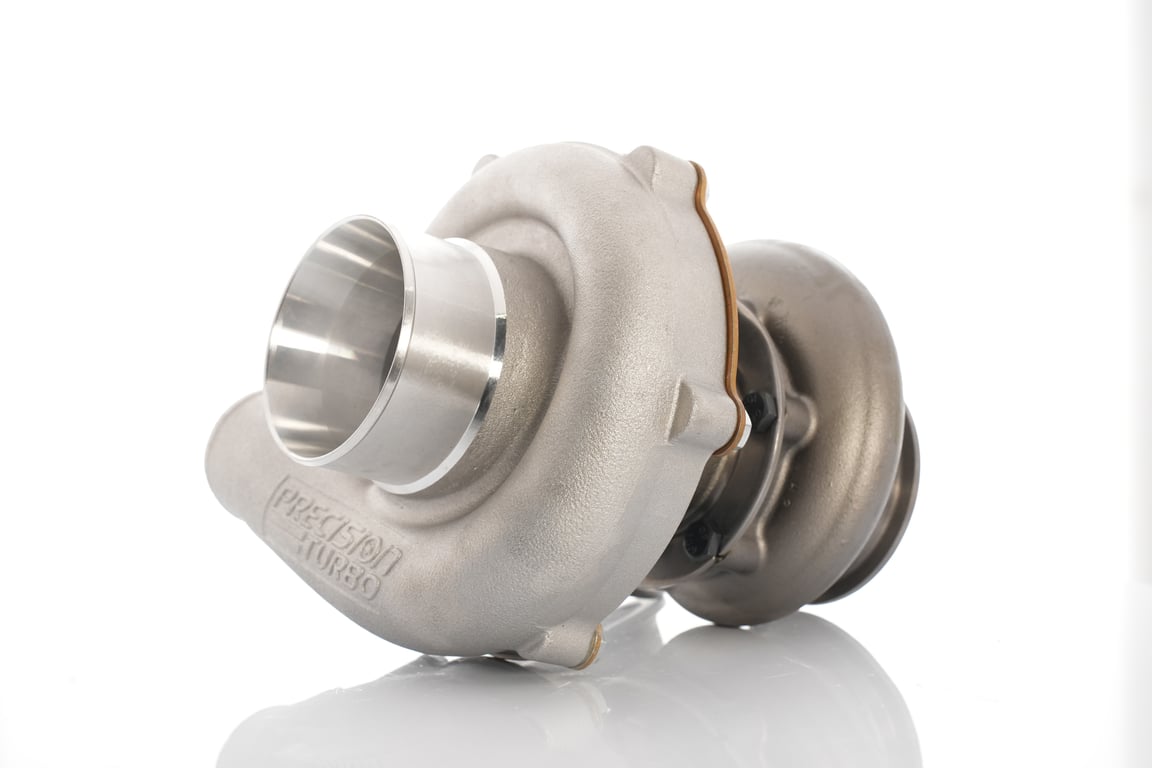

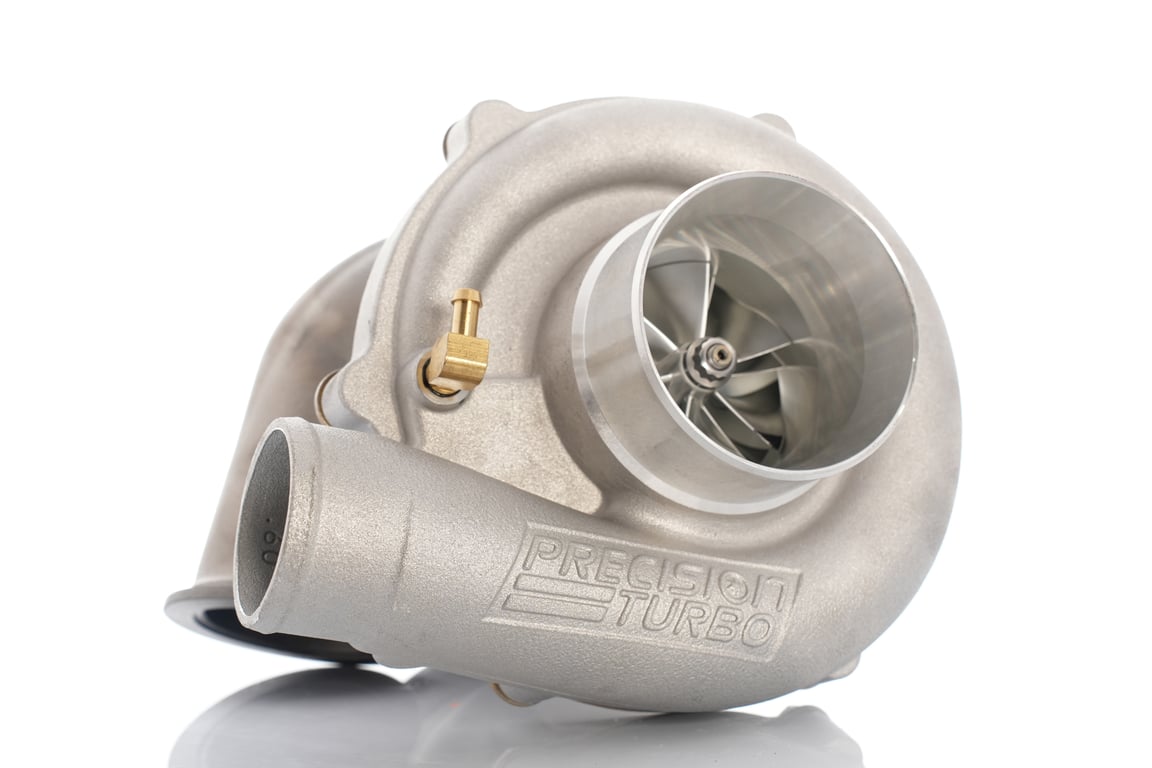

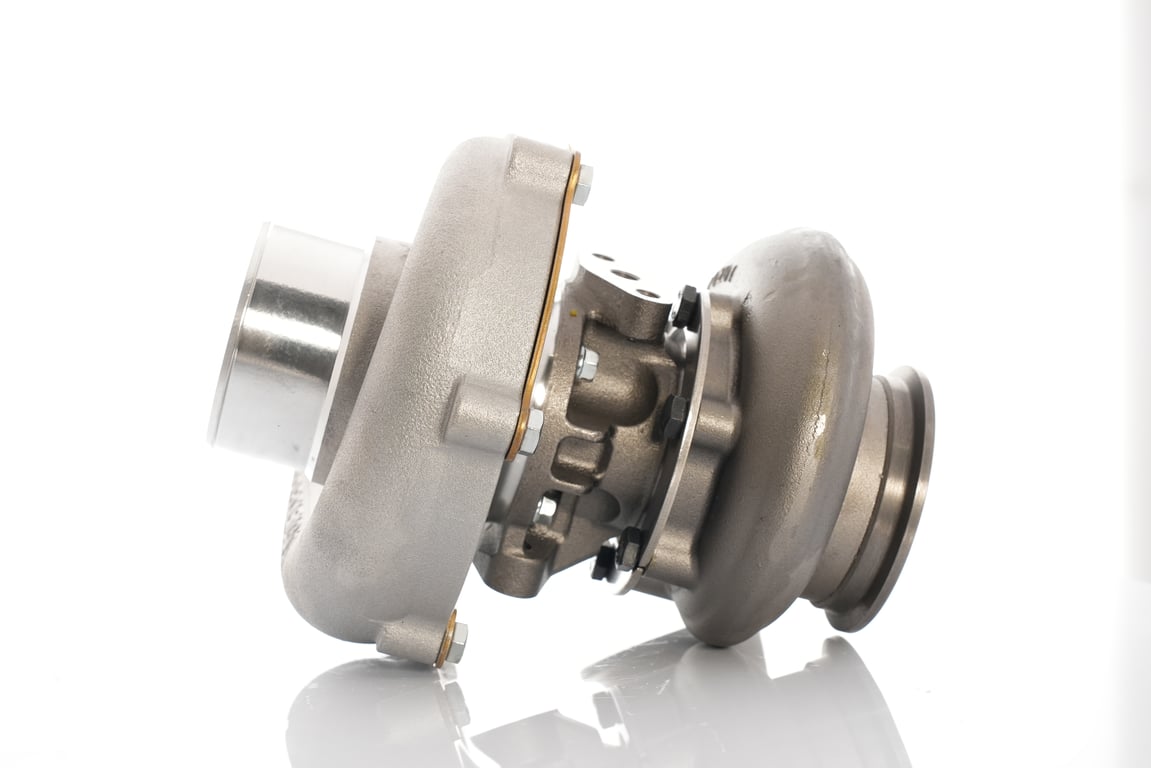

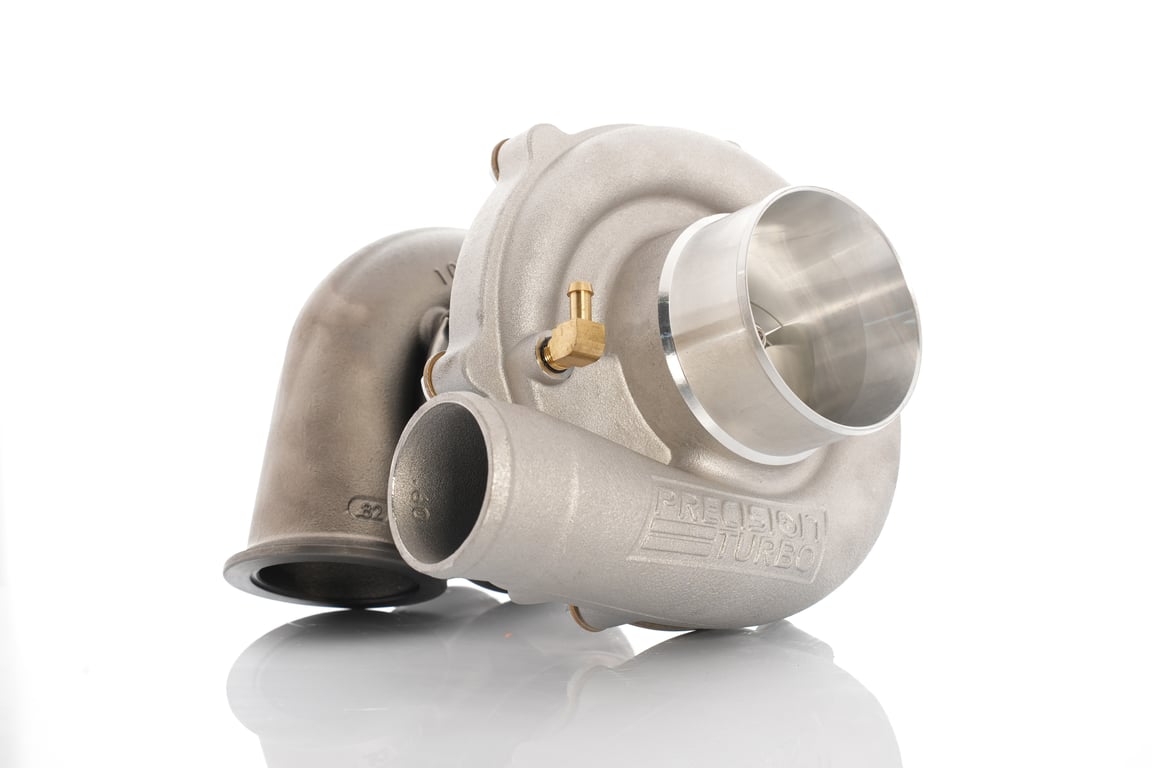

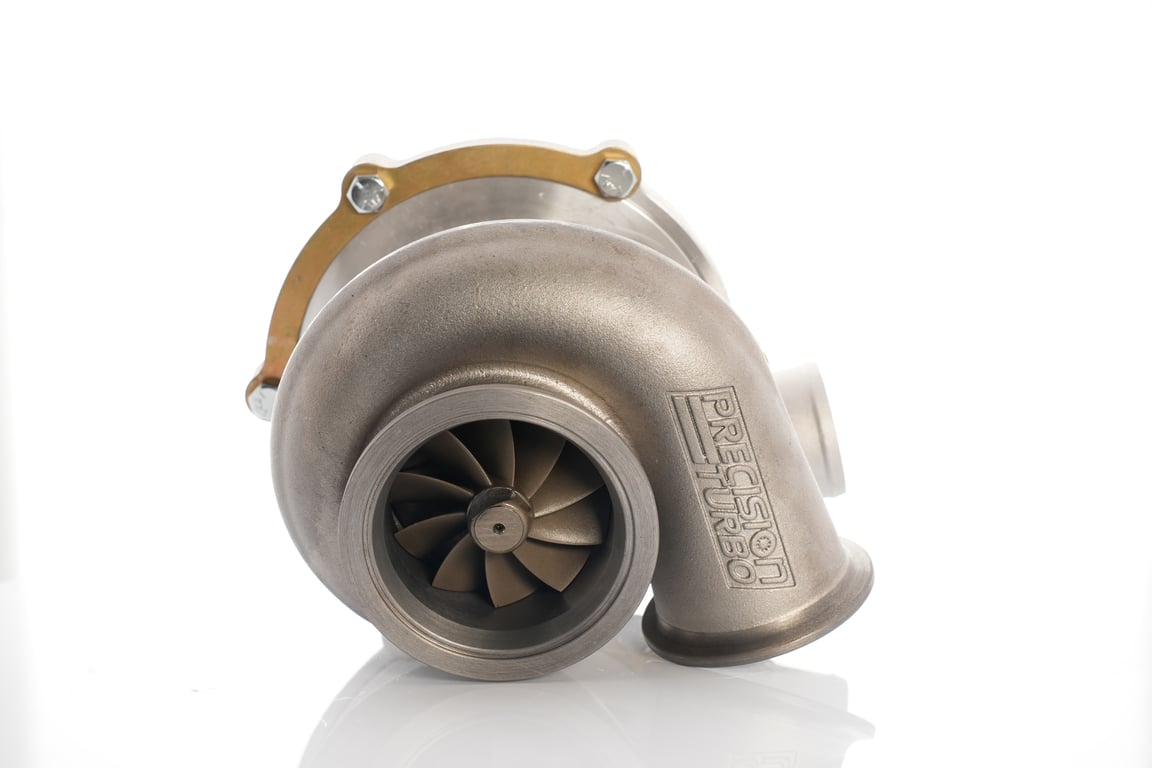

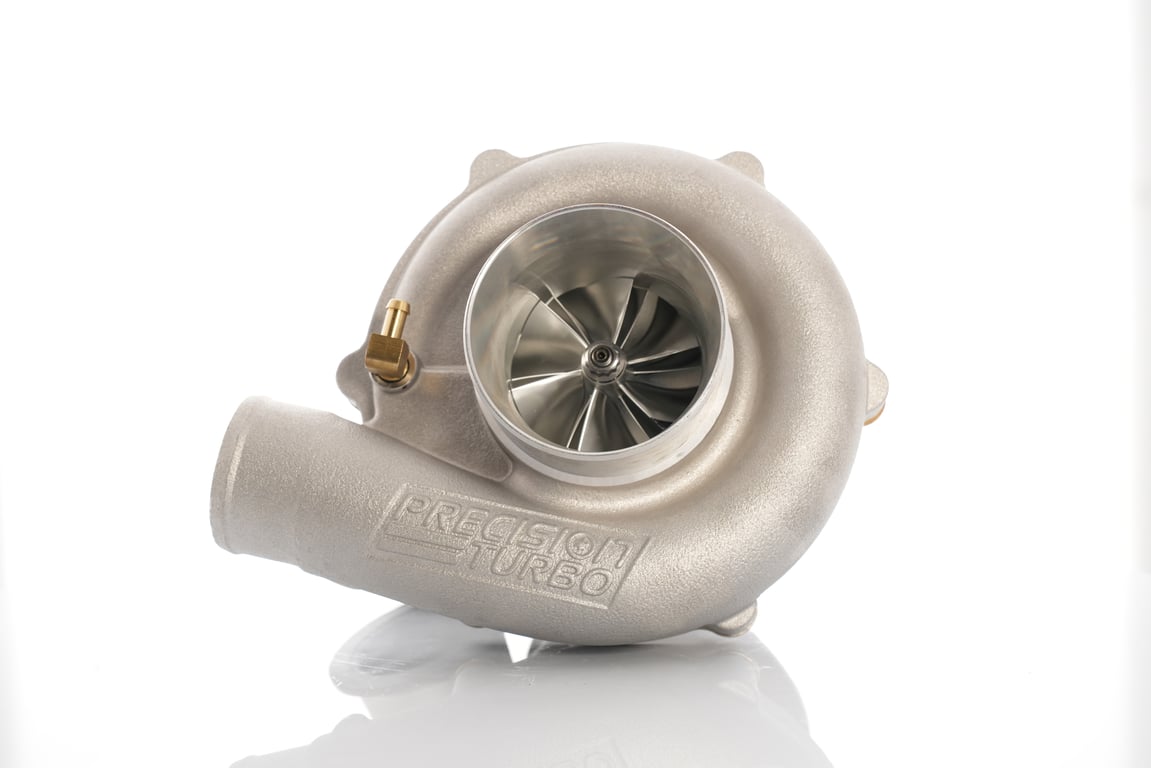

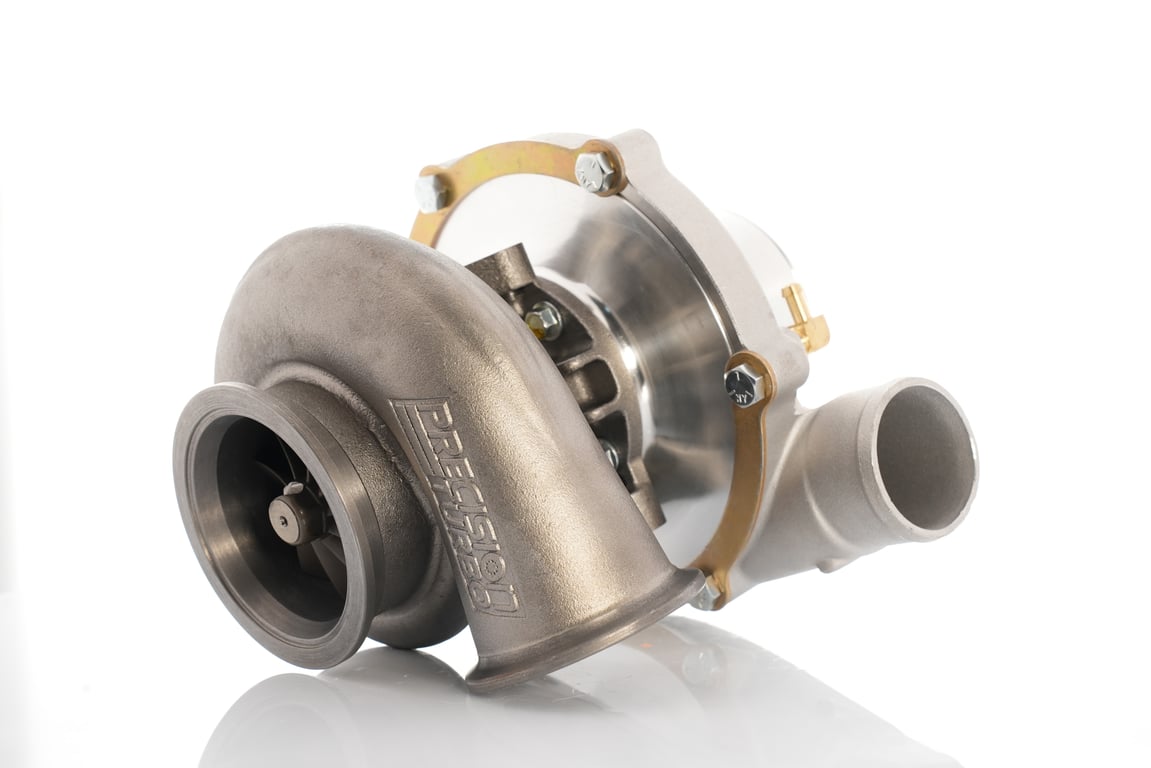

PTE's PT6262 Turbocharger features the following:
HP Rating: 705
Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Higher efficiency and faster transient response for maximum power and performance
62mm inducer compressor wheel
Compressor cover options:
- "E" compressor cover 3.0" inlet/2.0" outlet
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
Exclusive CEA® (Competition Engineered Aerodynamics) 62mm, 76 trim turbine wheel
Turbine housing options:
cast 310 stainless steel THV5S / 1.05 A/R
- T3 .63 or .82 A/R with 4 bolt (2.5") discharge
- T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
- V-Band inlet .64 or .82 A/R with V-Band discharge
- T4 Tangential .58 or .68 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- T4 Divided .84 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- Mitsubishi .63 A/R
- Buick .63 A/R
- K26 .82 A/R
* NOTE: Additional cost may apply for certain housings.
Available with either a Hydrodynamic 360 thrust bearing system, or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
