Specs
hp rating: 650 HP
generation: T4 DIVIDED 4-BOLT
cover style: E-COVER
compressor inducer: 58.0 MM
Details

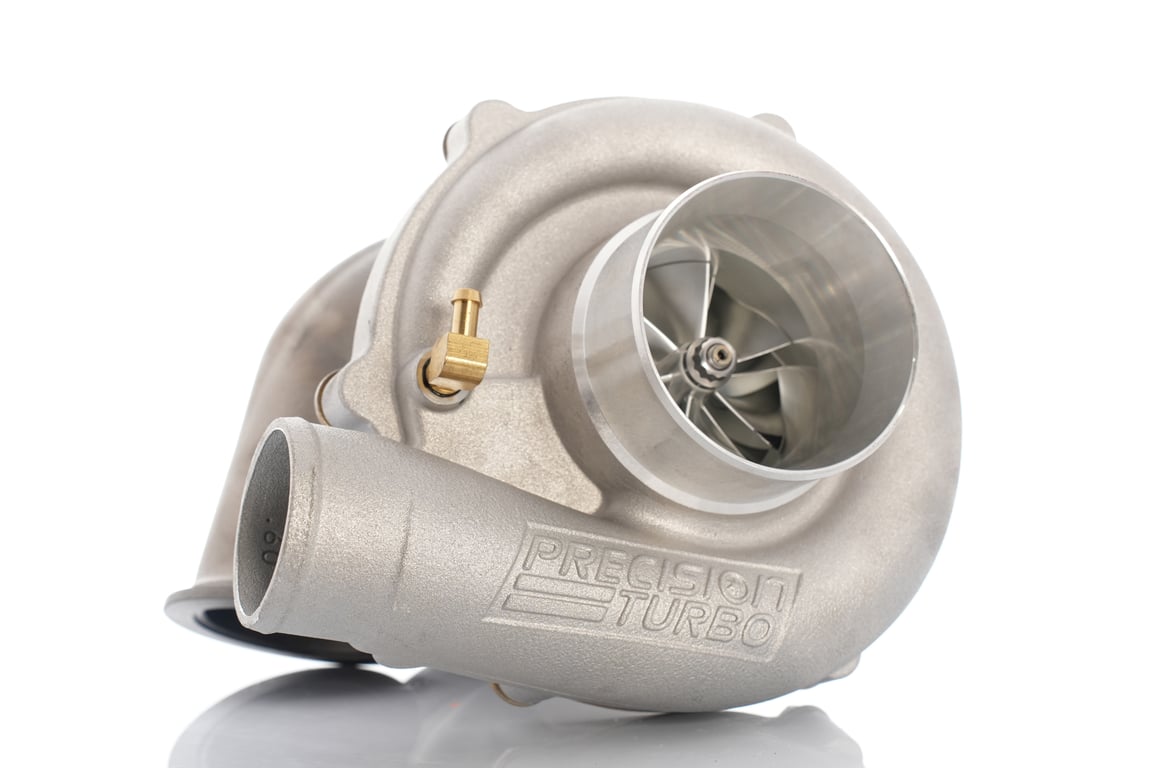

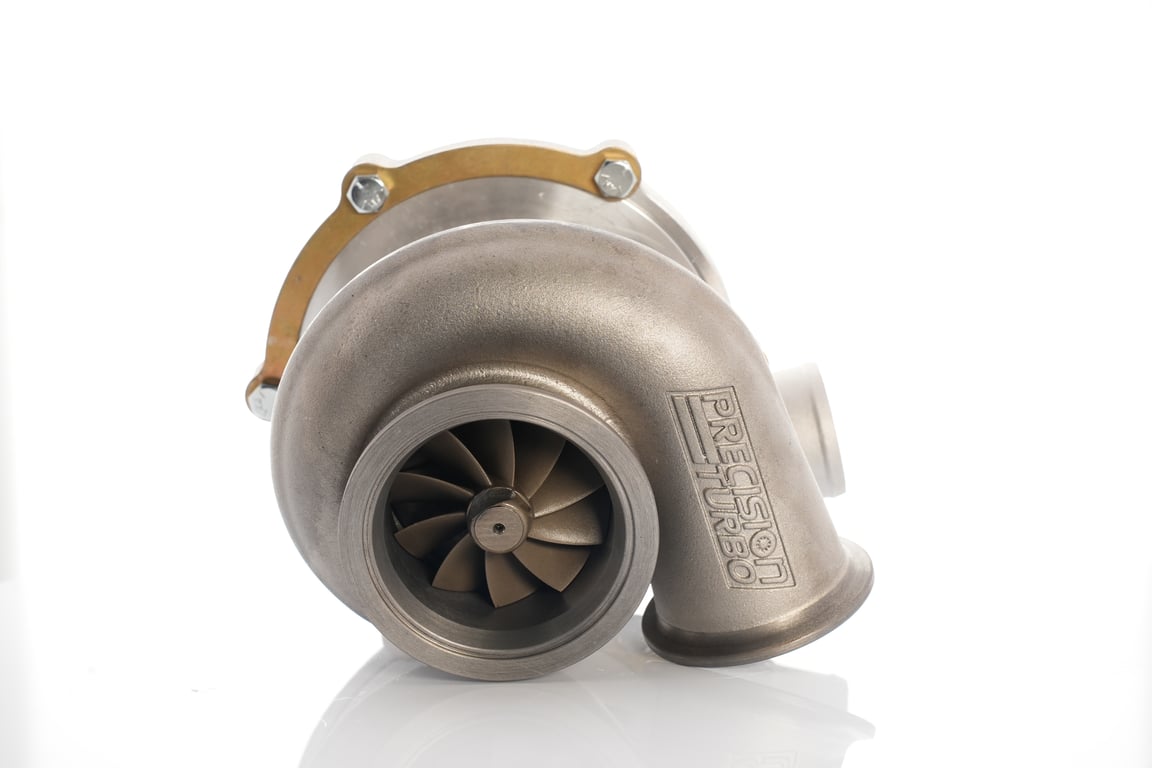

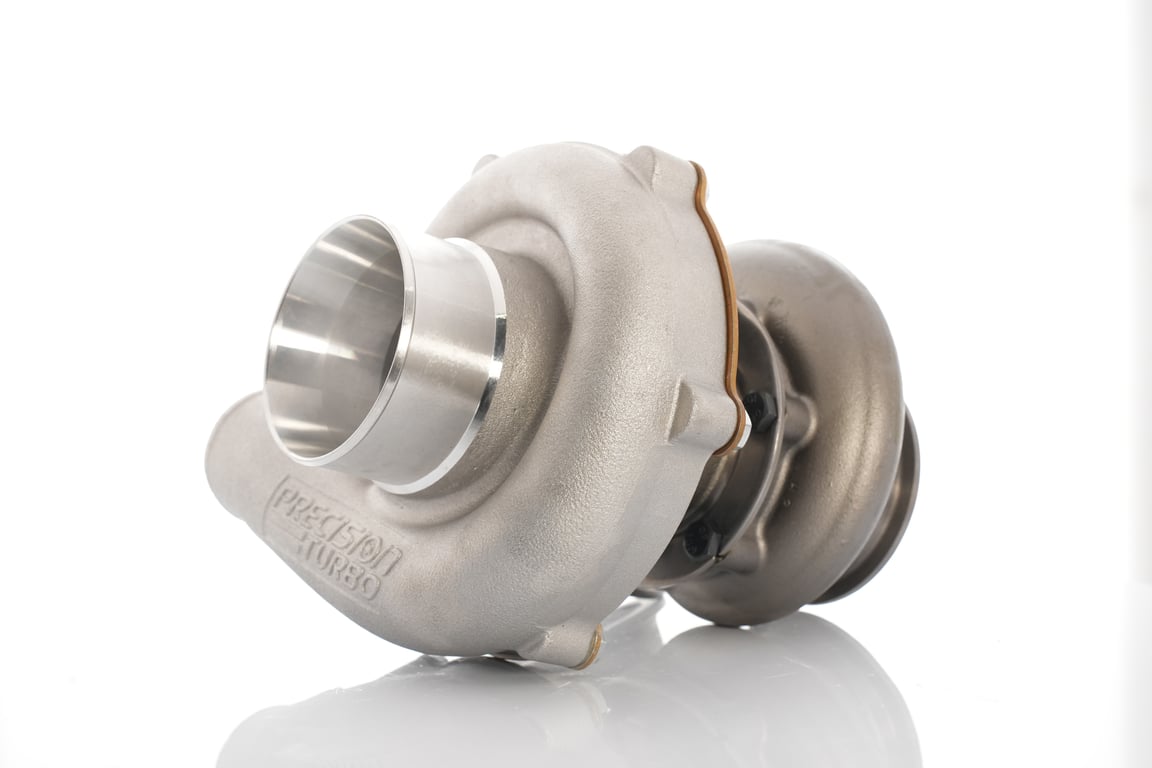

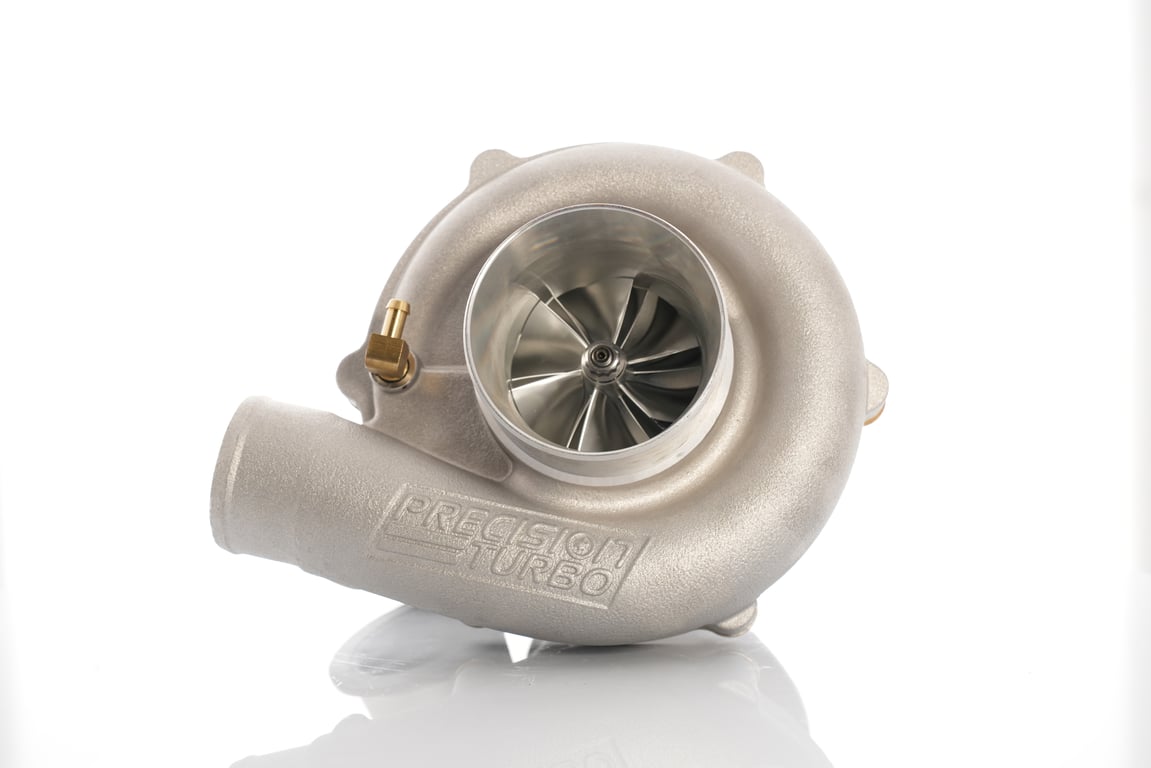

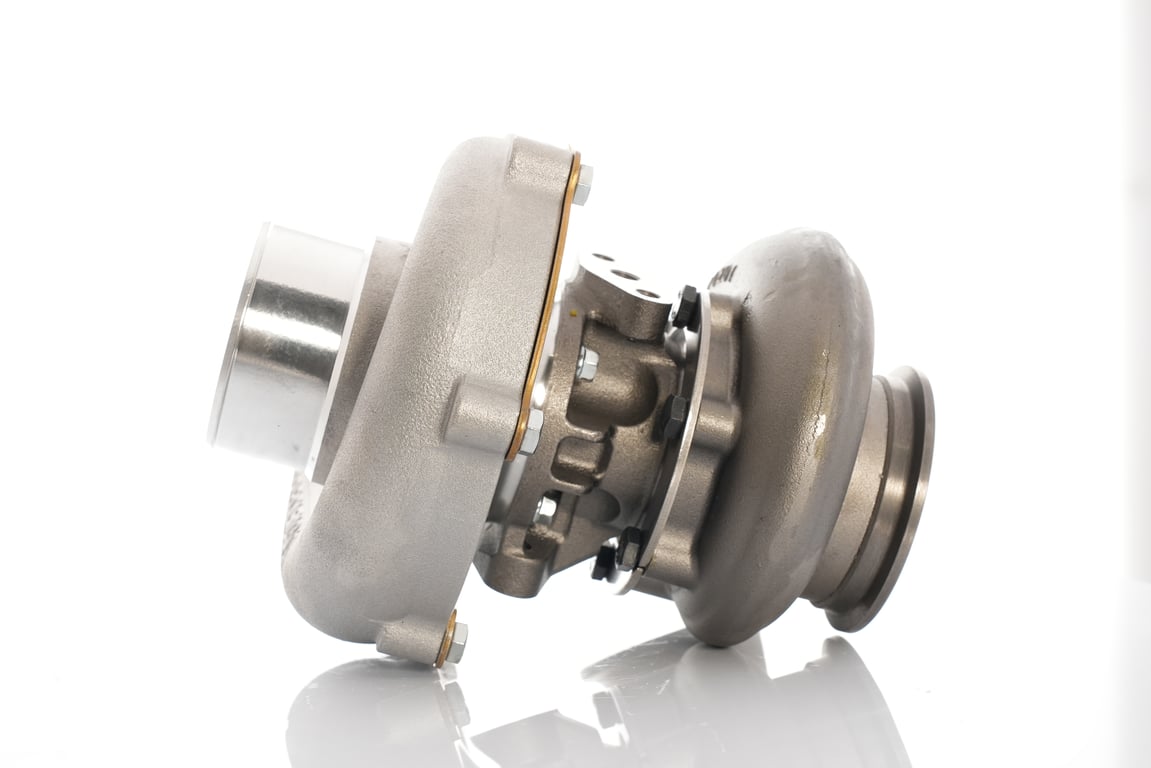

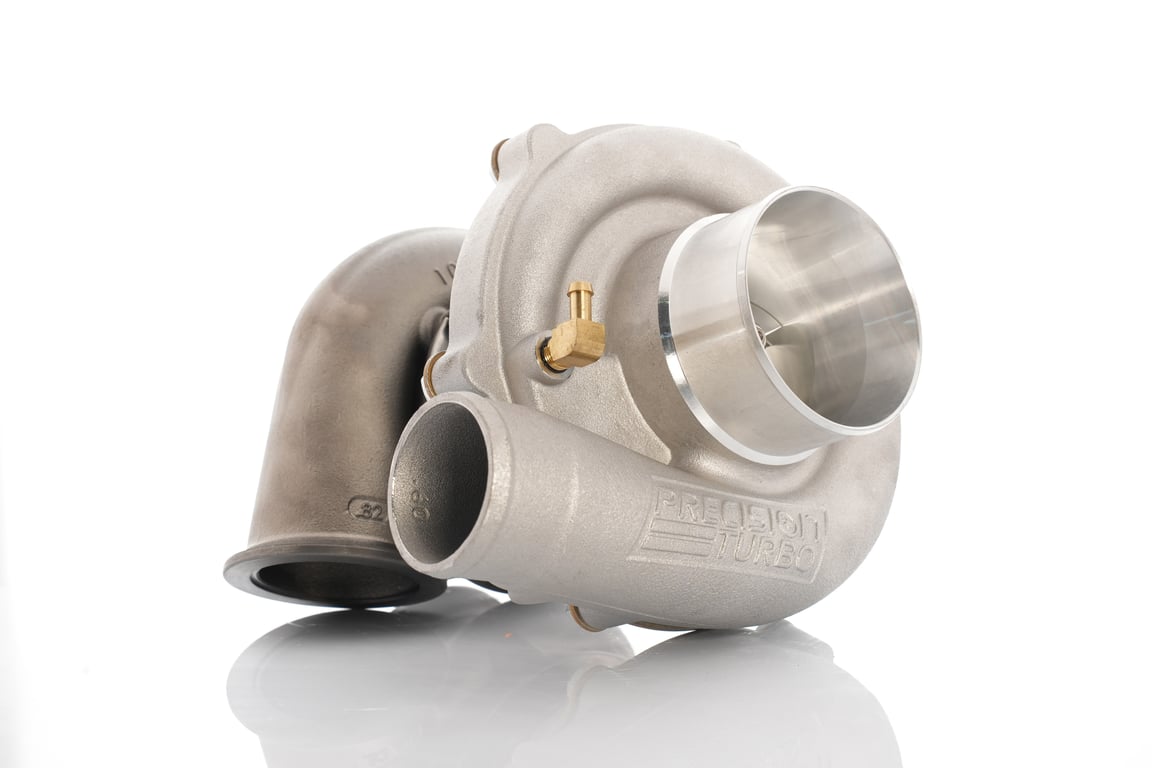

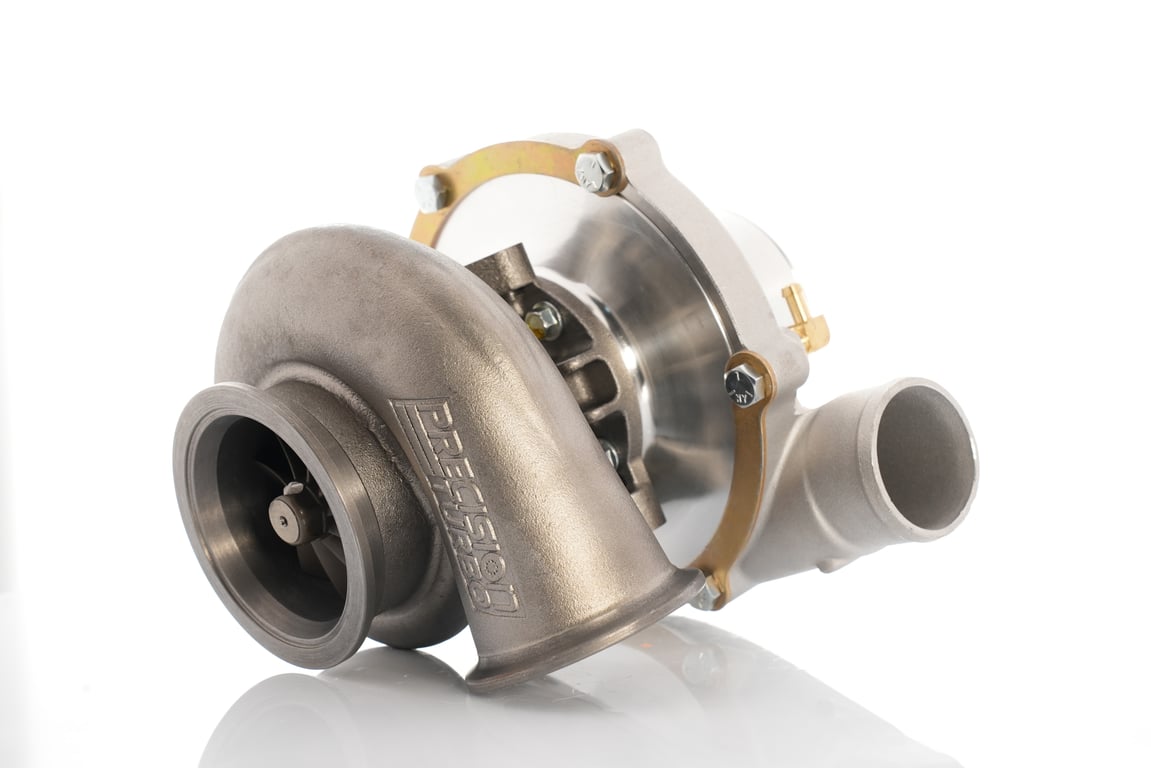

PTE's PT5866 Turbocharger features the following:
HP Rating: 650hp
Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Higher efficiency and faster transient response for maximum power and performance
58mm inducer compressor wheel
Compressor cover options:
- "B" compressor cover 2.8" inlet/2.0" outlet
- "E" compressor cover 3.0" inlet/2.0" outlet
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
Exclusive CEA® (Competition Engineered Aerodynamics) 62mm, 76 trim turbine wheel
Turbine housing options:
- T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
- V-Band inlet .64 or .82 A/R with V-Band discharge
- T4 Tangential .58 or .68 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- T4 Divided .84 A/R with 3 5/8" OD (outer diameter) V-Band discharge
* NOTE: Additional cost may apply for certain housings.
Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
