Specs
hp rating: 620 HP
generation: T3 SS V-BAND
cover style: JET-FIGHTER COVER
compressor inducer: 58.0 MM
Details

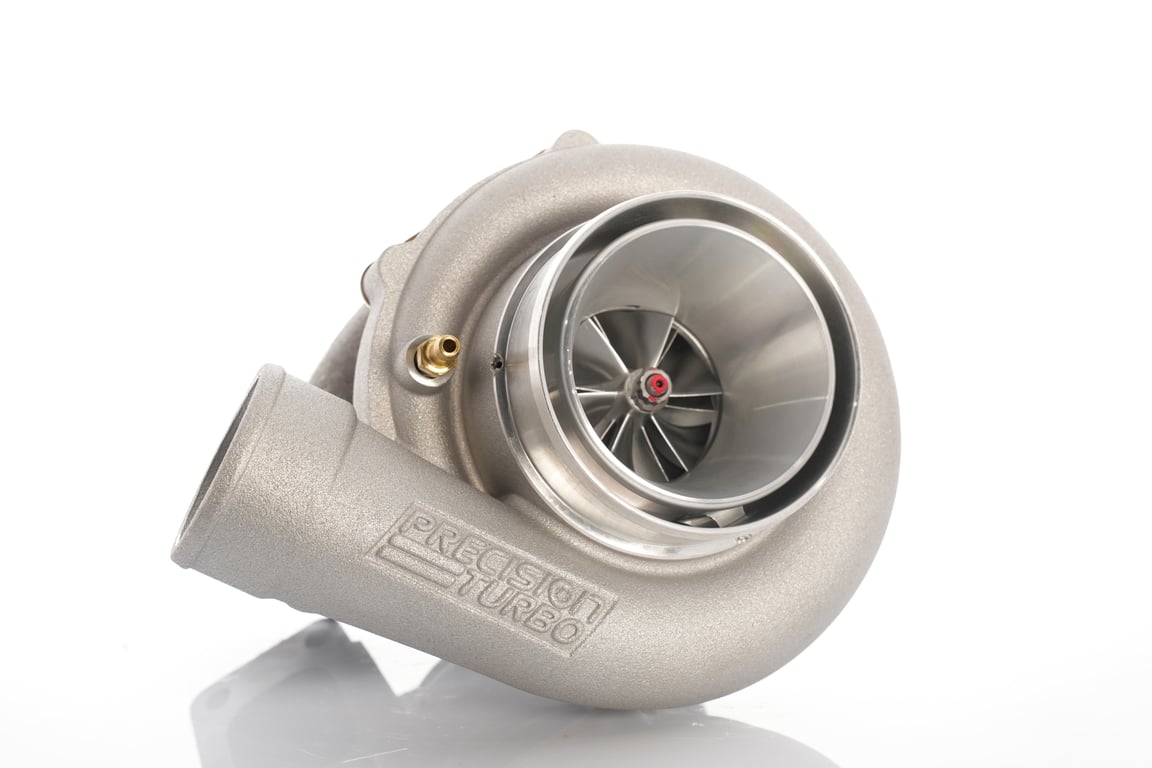

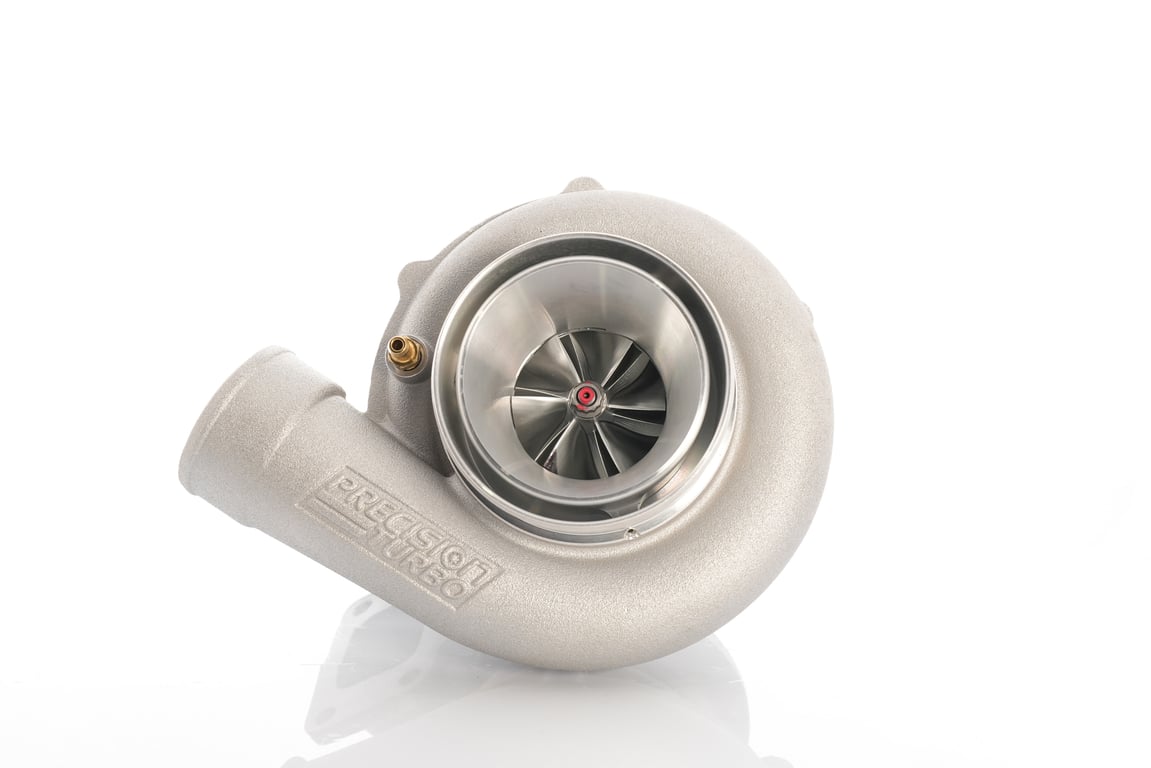

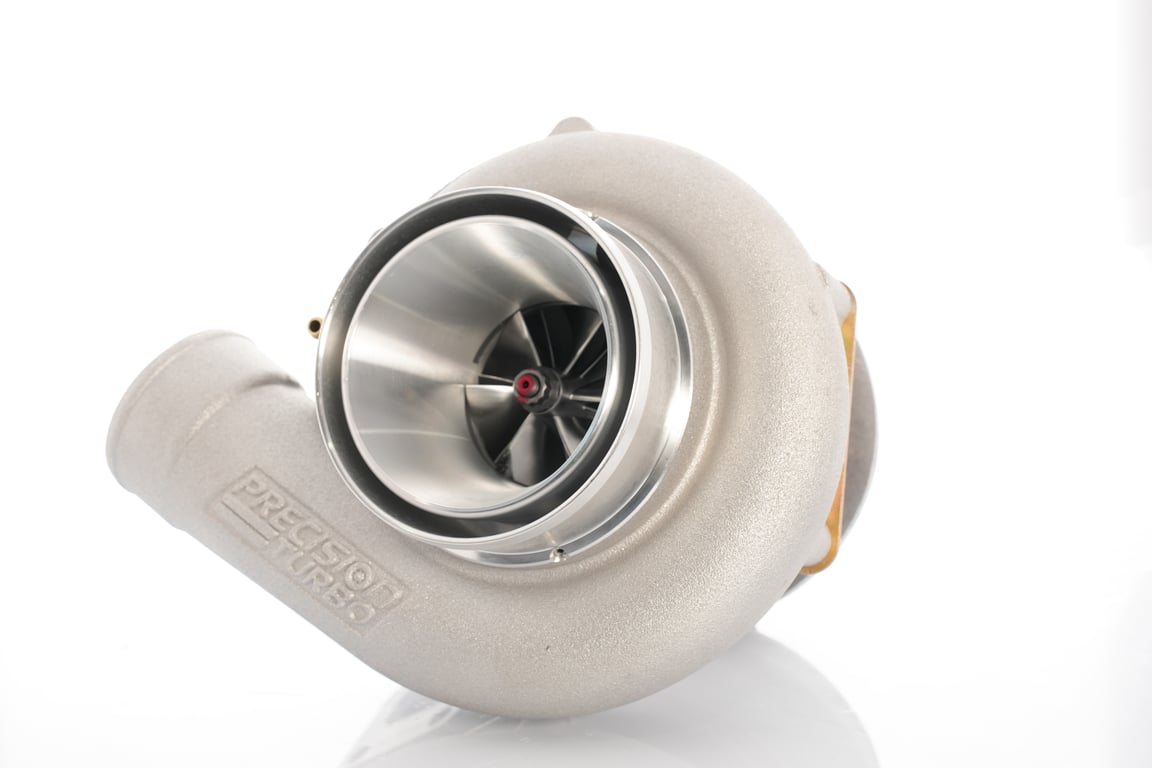

PTE's PT5858 Turbocharger features the following:
HP Rating: 620
Exclusive CEA� (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Higher efficiency and faster transient response for maximum power and performance
58mm inducer compressor wheel
Compressor cover options:
"B" compressor cover 2.8" inlet/2.0" outlet
"E" compressor cover 3.0" inlet/2.0" outlet
"Ported S" compressor cover 4.0" inlet/2.5" outlet
58mm, 76 trim turbine wheel

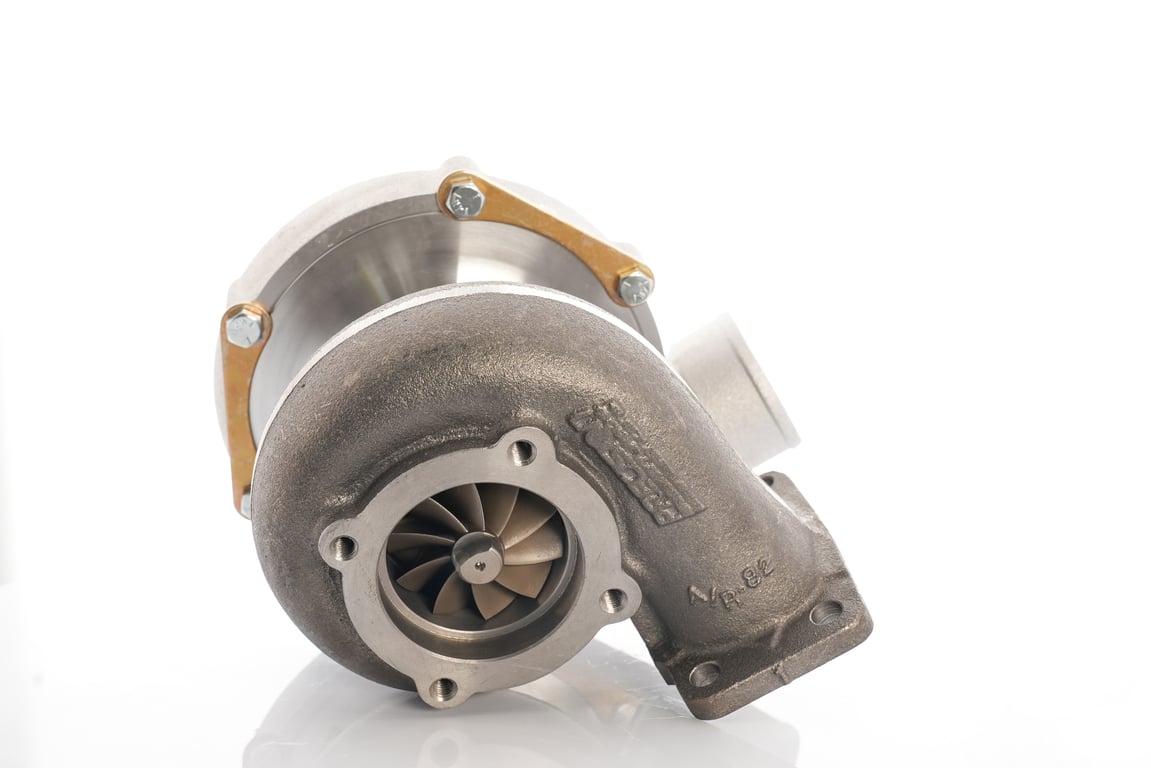

Turbine housing options:
T3 .48, .63 or .82 A/R with 4 bolt (2.5") discharge
T3 .48 or .63 A/R with 5 bolt discharge (with or without wastegate hole)
T3 .48, .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
V-Band inlet .64 or .82 A/R with V-Band discharge
T4 Tangential .58 A/R with 3 5/8" OD (outer diameter) V-Band discharge
Buick .63 A/R
K26 .82 A/R
* NOTE: Additional cost may apply for certain housings.
Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
