hp rating: 1300 HP

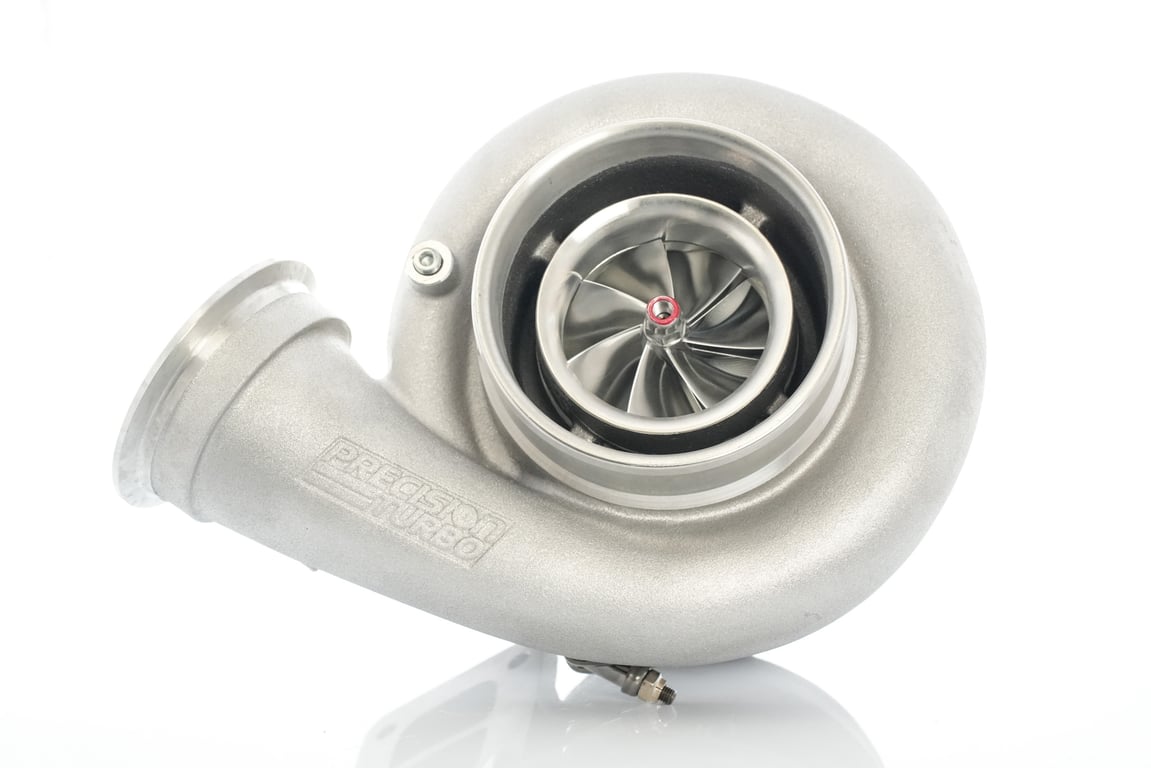

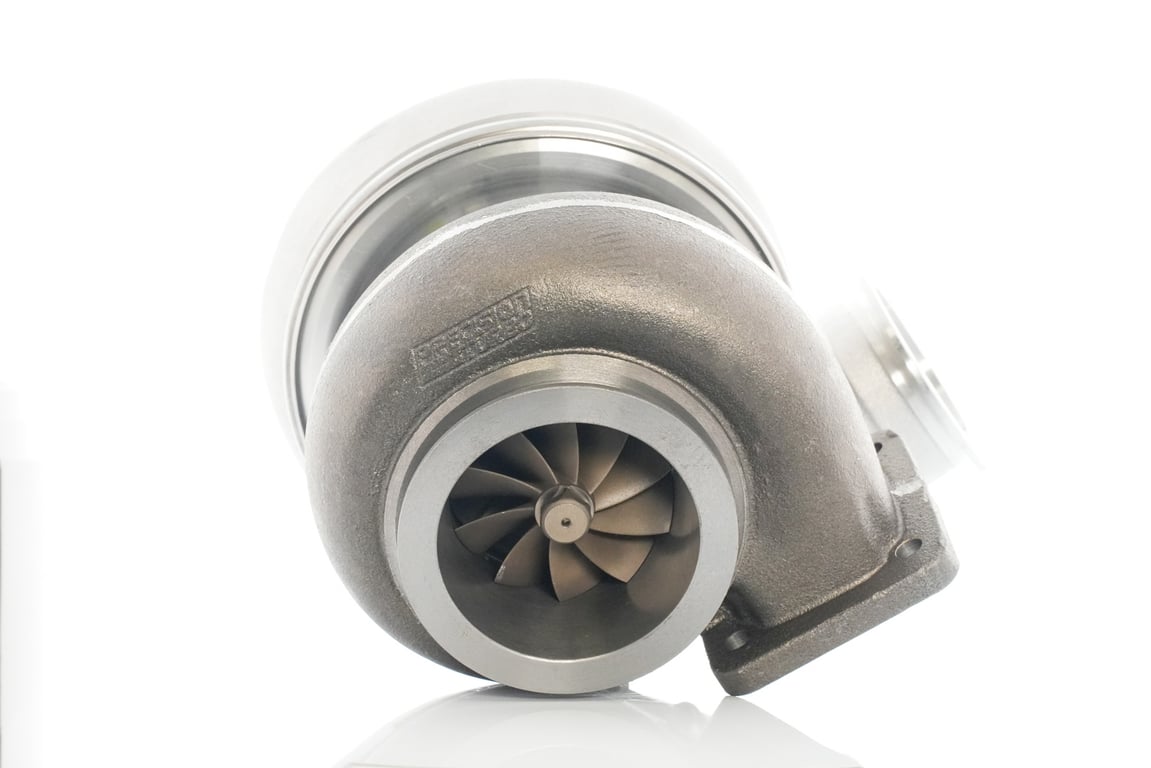

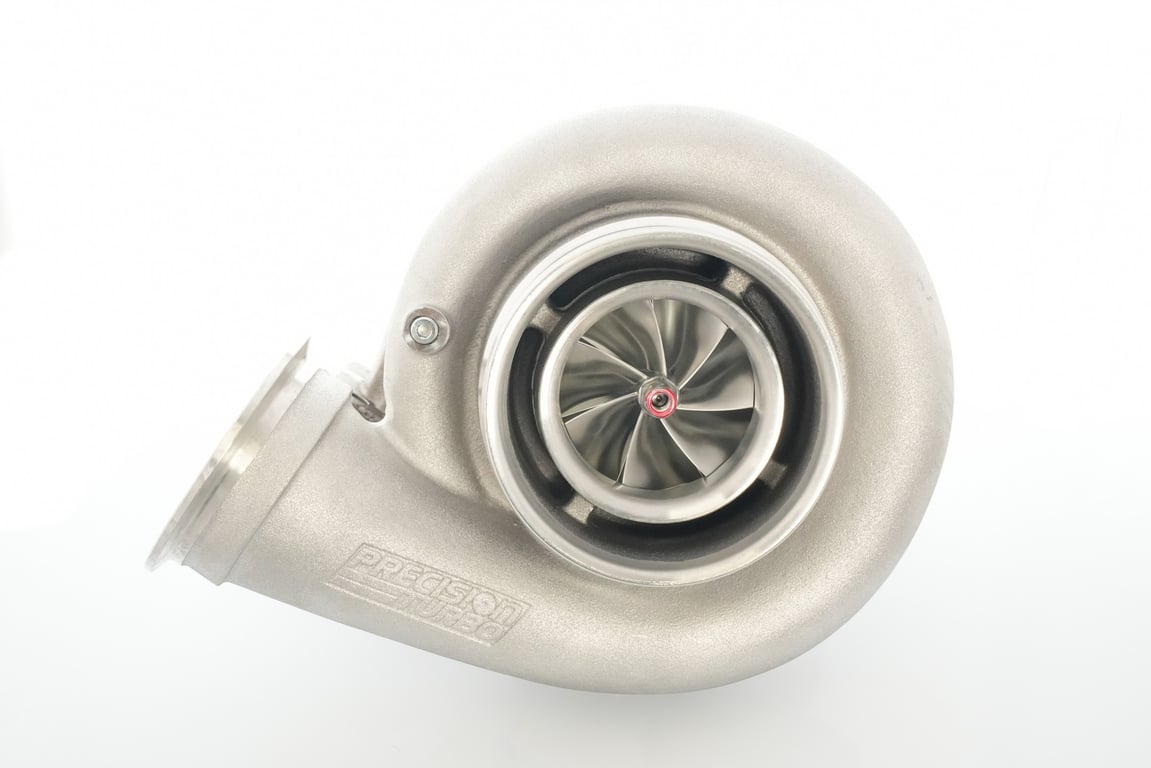

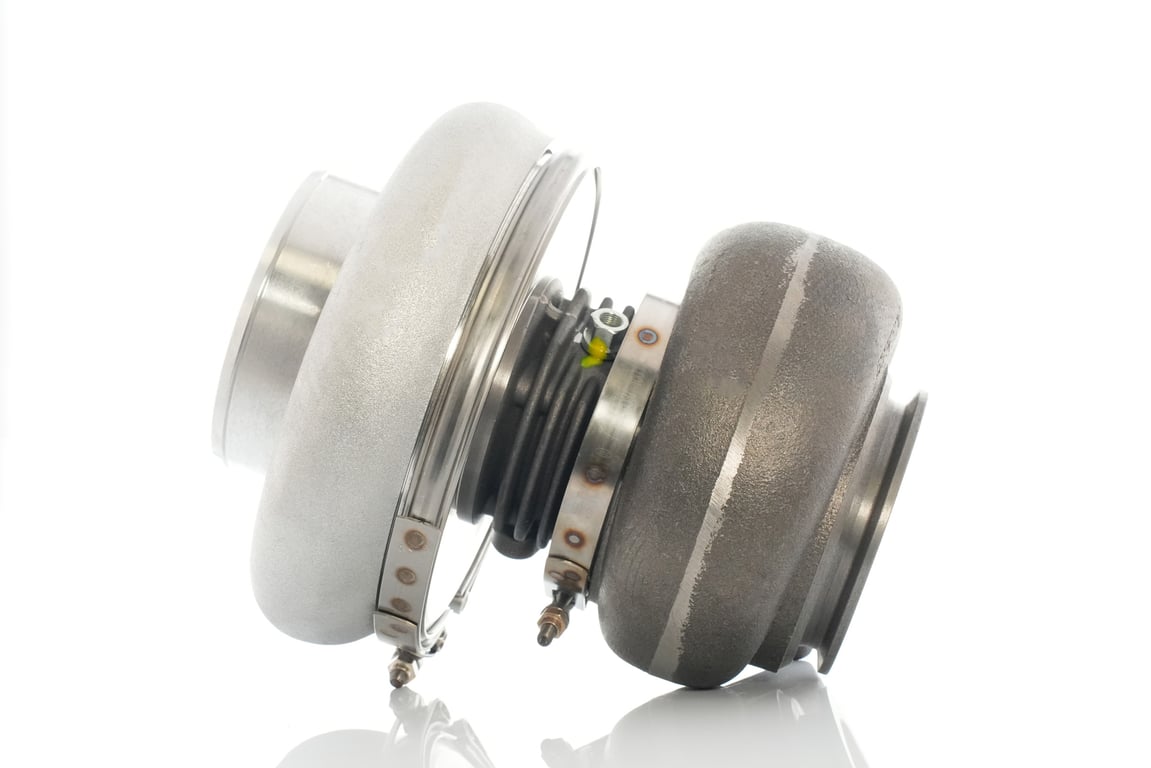

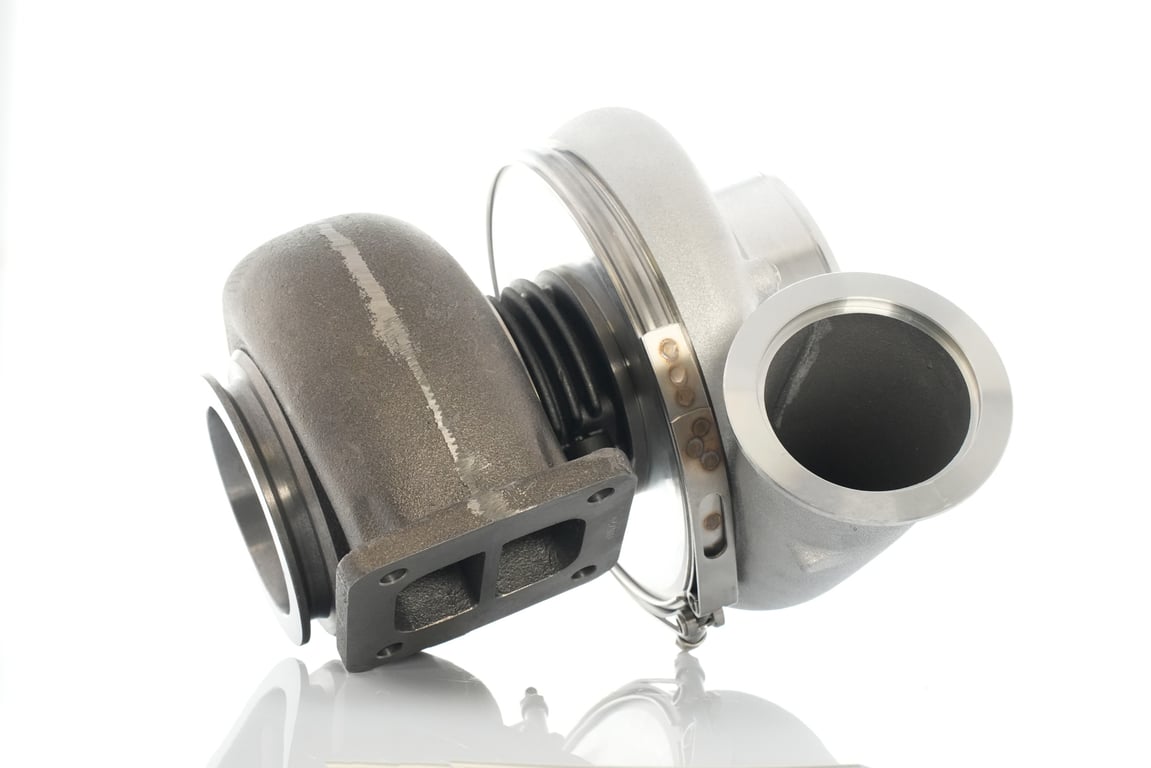

Next Gen Sportsman 7180

All new sportsman frame sized 7180 turbocharger features a NEXT GEN, 71mm CEA compressor wheel mated to our 80mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 7180 is a record setting turbocharger and is a great option for those looking to make upwards of 1,300hp.
Part number — 21809242829
in stock

Turbine housing style

SPORTSMAN SS V-BAND
  • SPORTSMAN SS V-BAND

A r

1.15 A/R
  • 1.15 A/R

MSRP

$3,821.29

QTY

  • Specs
  • Details

Specs

hp rating: 1300 HP
generation: SPORTSMAN SS V-BAND
cover style: SPORTSMAN-COVER
compressor inducer: 71.0 MM

Details

NEXT GEN 71mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA) Sportsman compressor cover with a 5.0” inlet and 4.2” outlet 80mm CEA turbine wheel Air-cooled, dual ceramic ball bearing Turbine housing options: T4 divided inlet with .98 A/R, 1.12 A/R, or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28 Rated to support 1,300 flywheel horsepower.

×
